Specialized

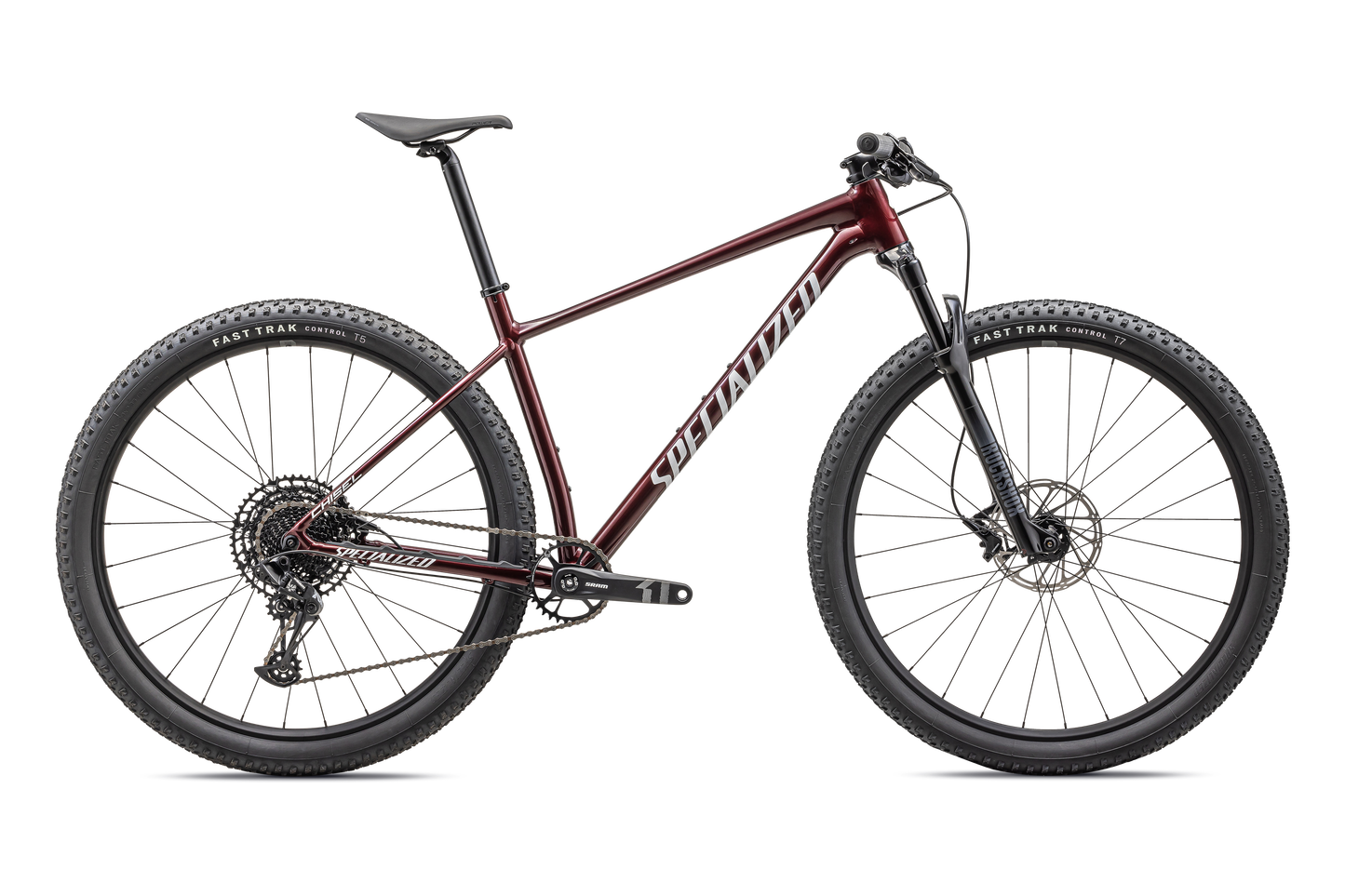

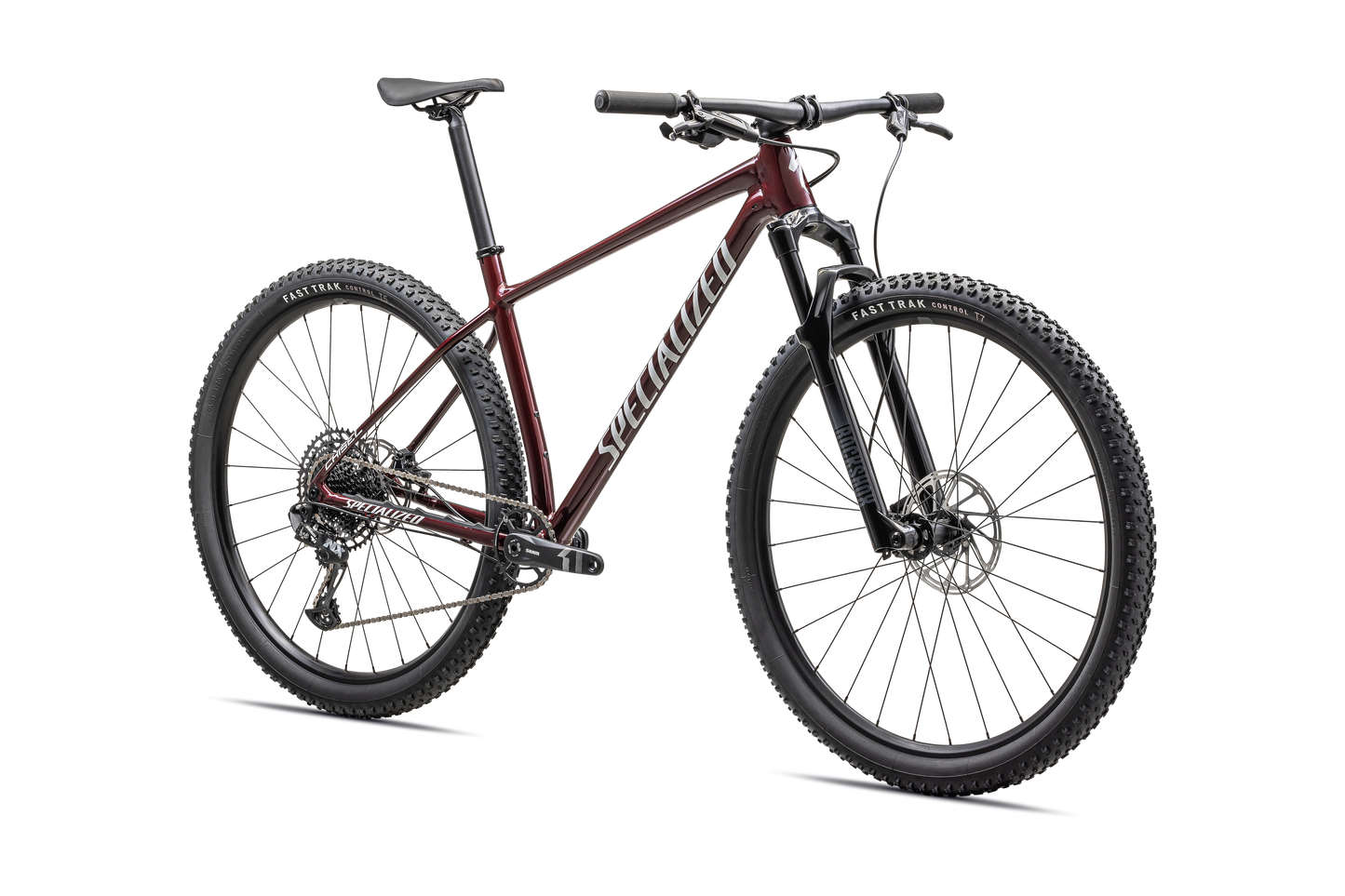

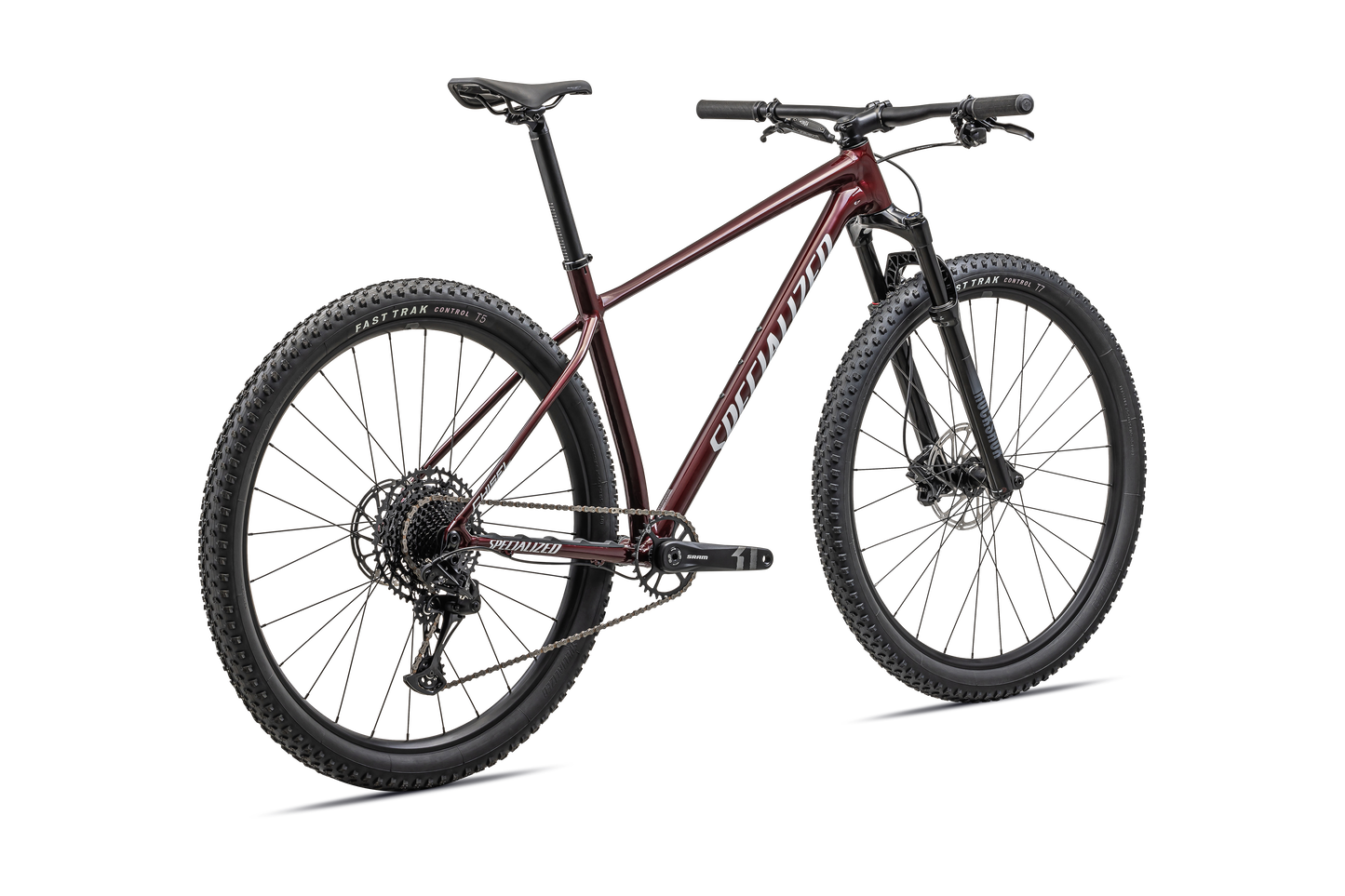

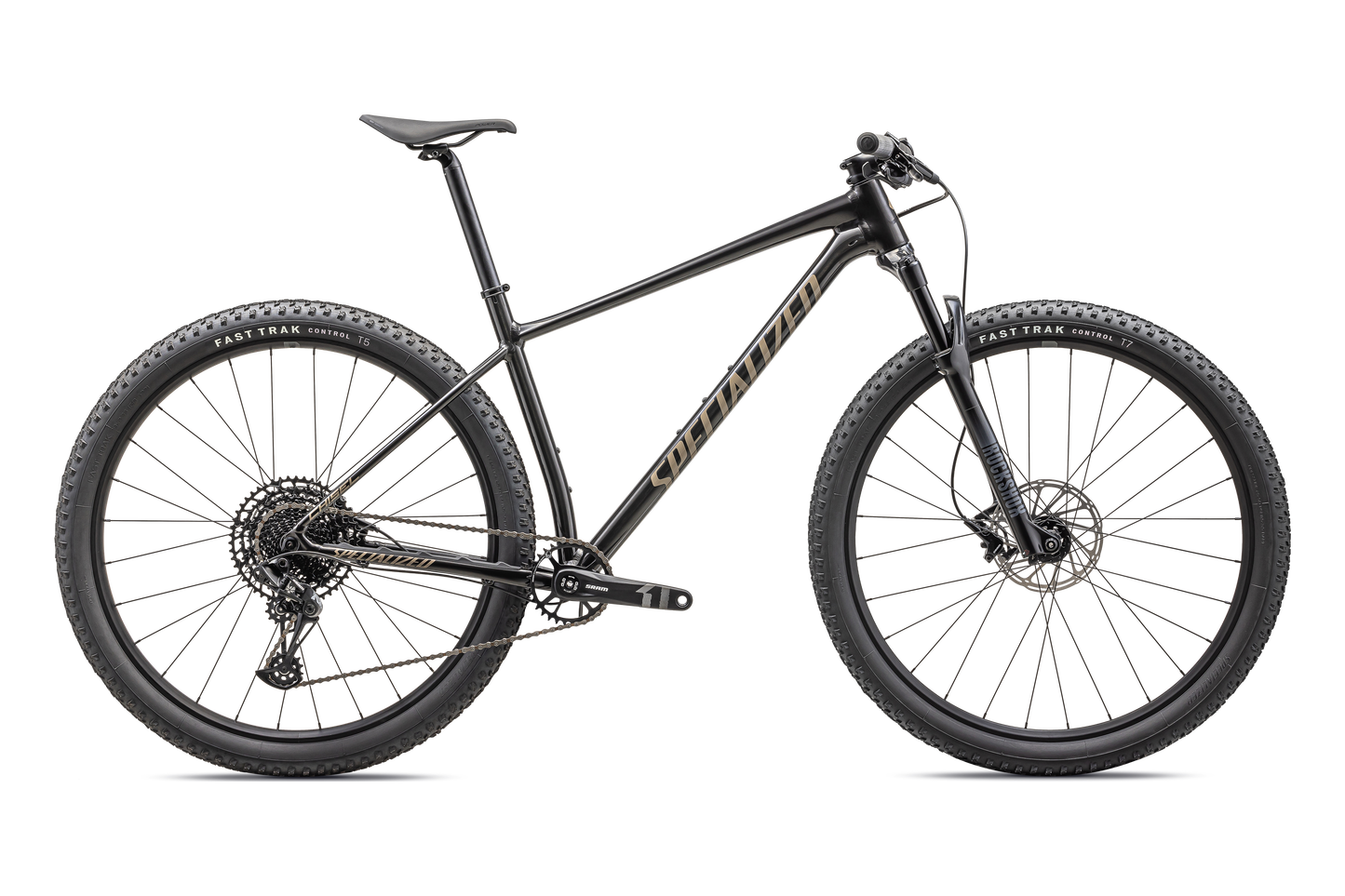

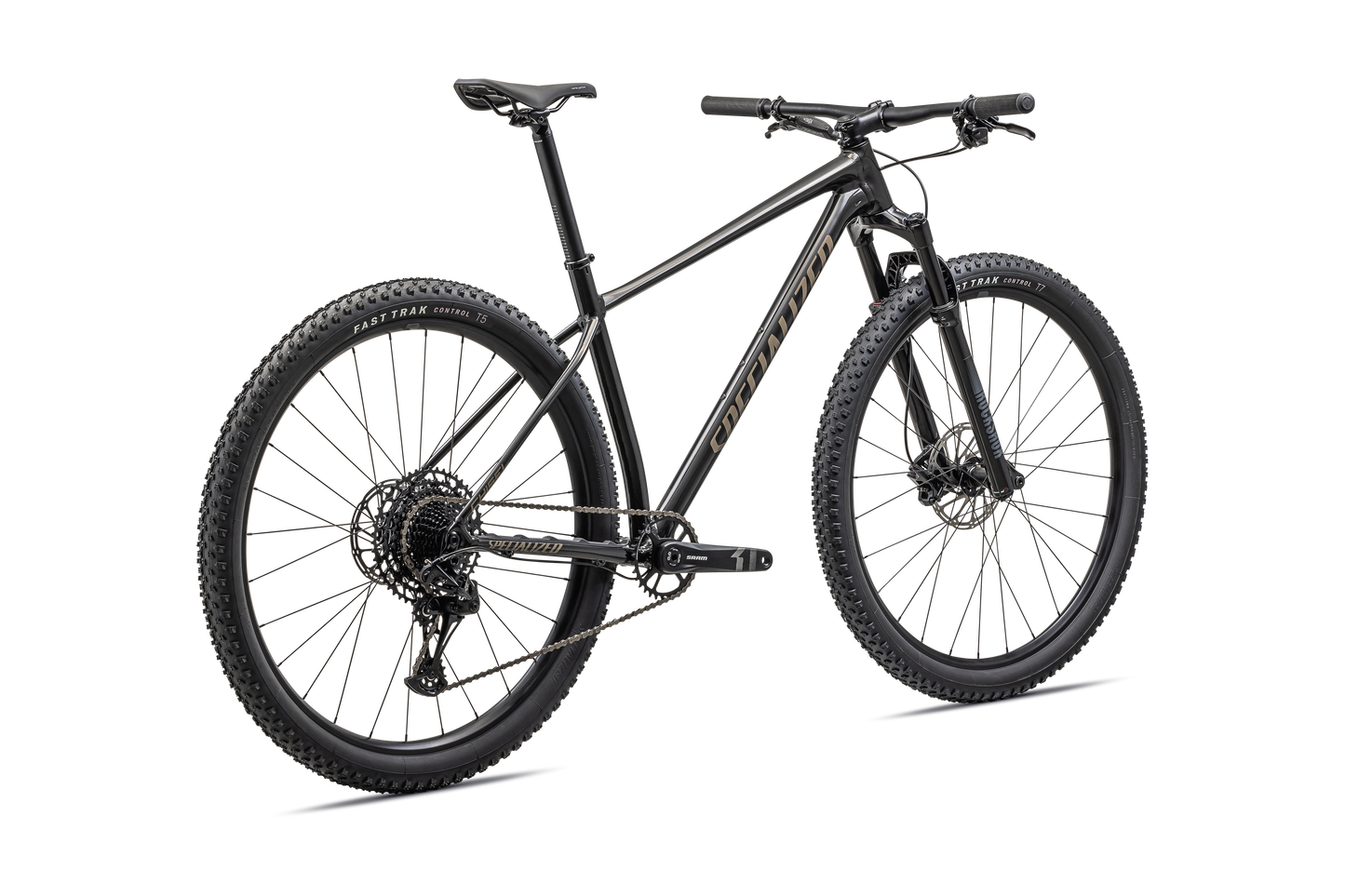

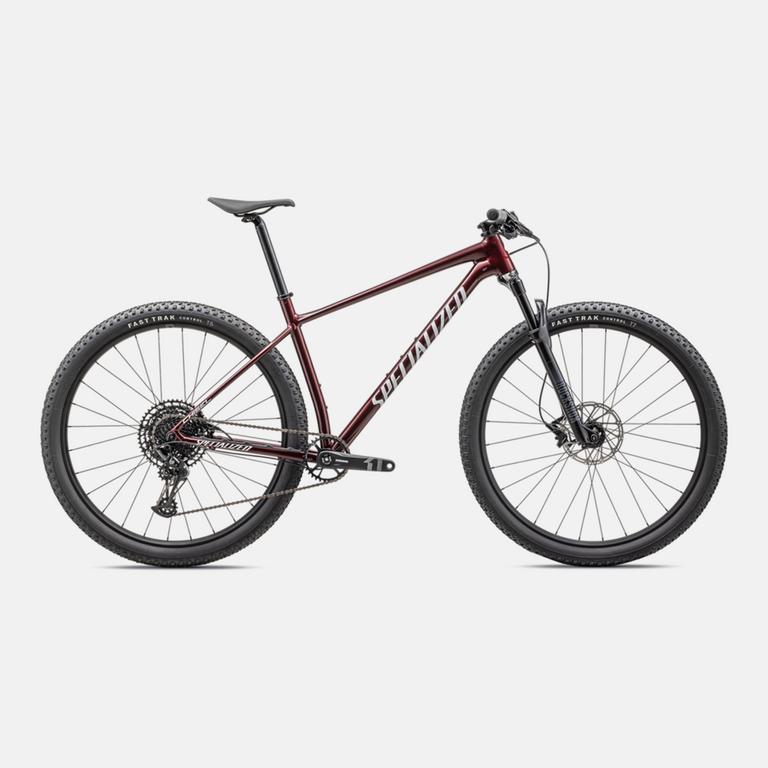

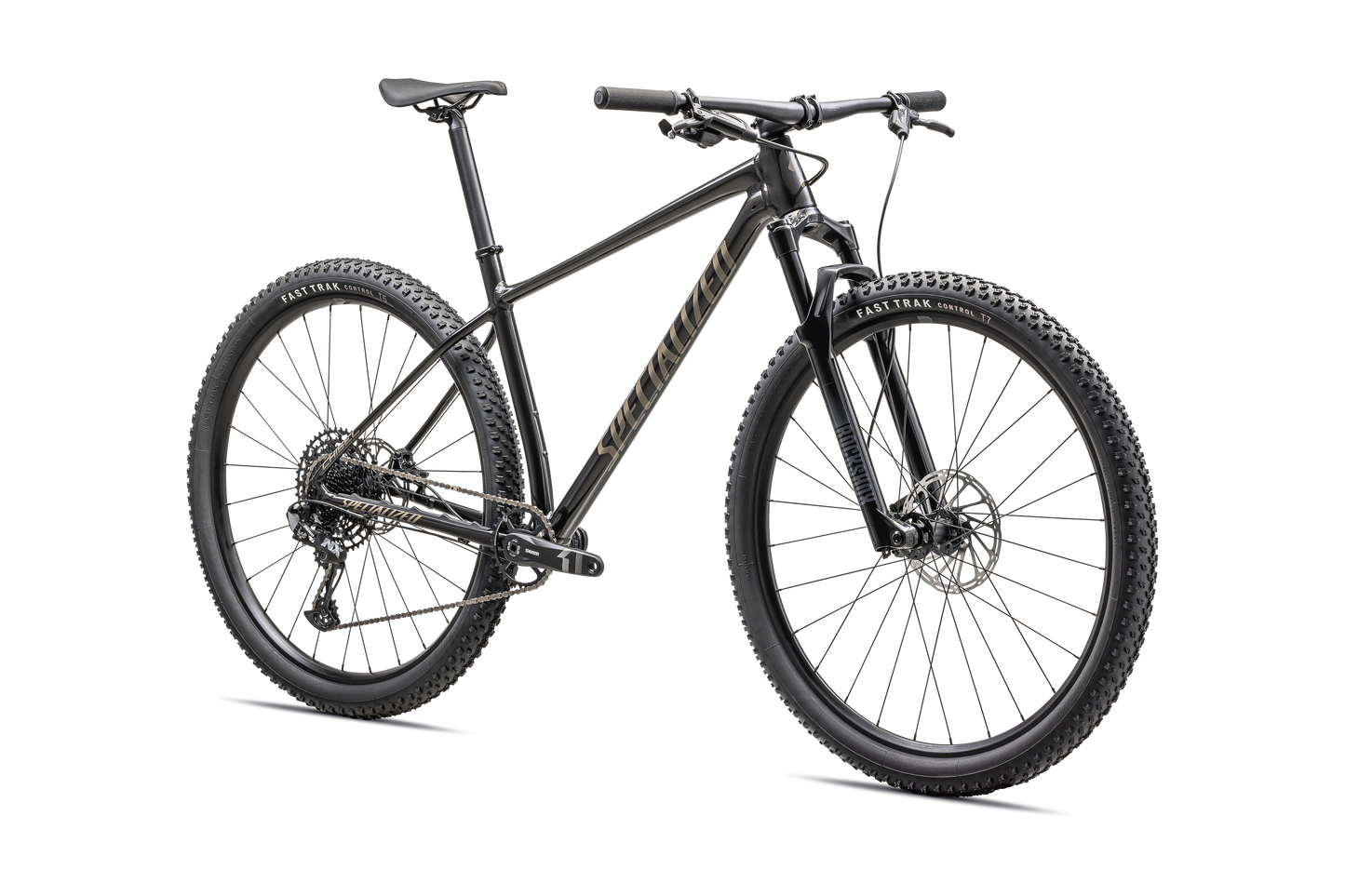

Chisel Hardtail Comp
Chisel Hardtail Comp
SKU:91723-5104
Product Enquiry
Thank you for submitting your form!
We appreciate your interest and will review your information as soon as possible.
Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.
Chisel Size Guide
Product Details
The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive ""top step"" at a price that leaves some jingle jangle left over for race entries. This Chisel comes dressed with SRAM's crisp-shifting NX Eagle 1x12 drivetrain and powerful Level T hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires. We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Technical Specifications
Frameset
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy, 34.9mm
Suspension
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Cockpit
Seat Post
Specialized Alloy, Single Bolt, 30.9mm
Saddle
Body Geometry Power Sport, steel rails
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Grips
Specialized Trail Grips
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Brakes
Front Brake
SRAM Level T, hydraulic disc, 160mm/180mm Centerline Rotor
Rear Brake
SRAM Level T, hydraulic disc, 160mm Centerline Rotor
Drivetrain
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crankset
SRAM X1000 Eagle, DUB, 170/175mm 32T
Chain
SRAM, SX Eagle, 12-speed
Chain Ring
32T
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tyres
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Spokes
Stainless, 14g
Tubes
Standard, Presta valve
