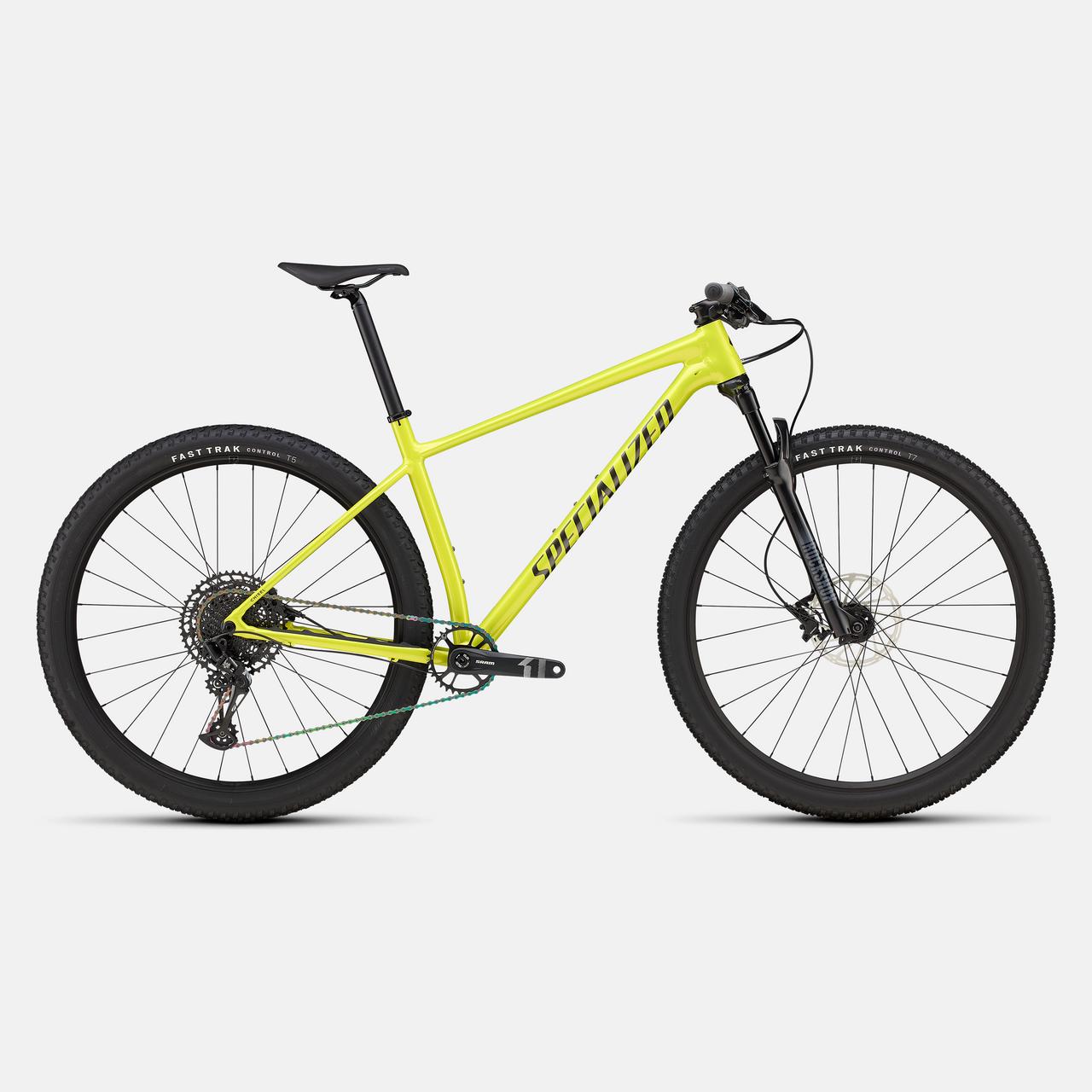

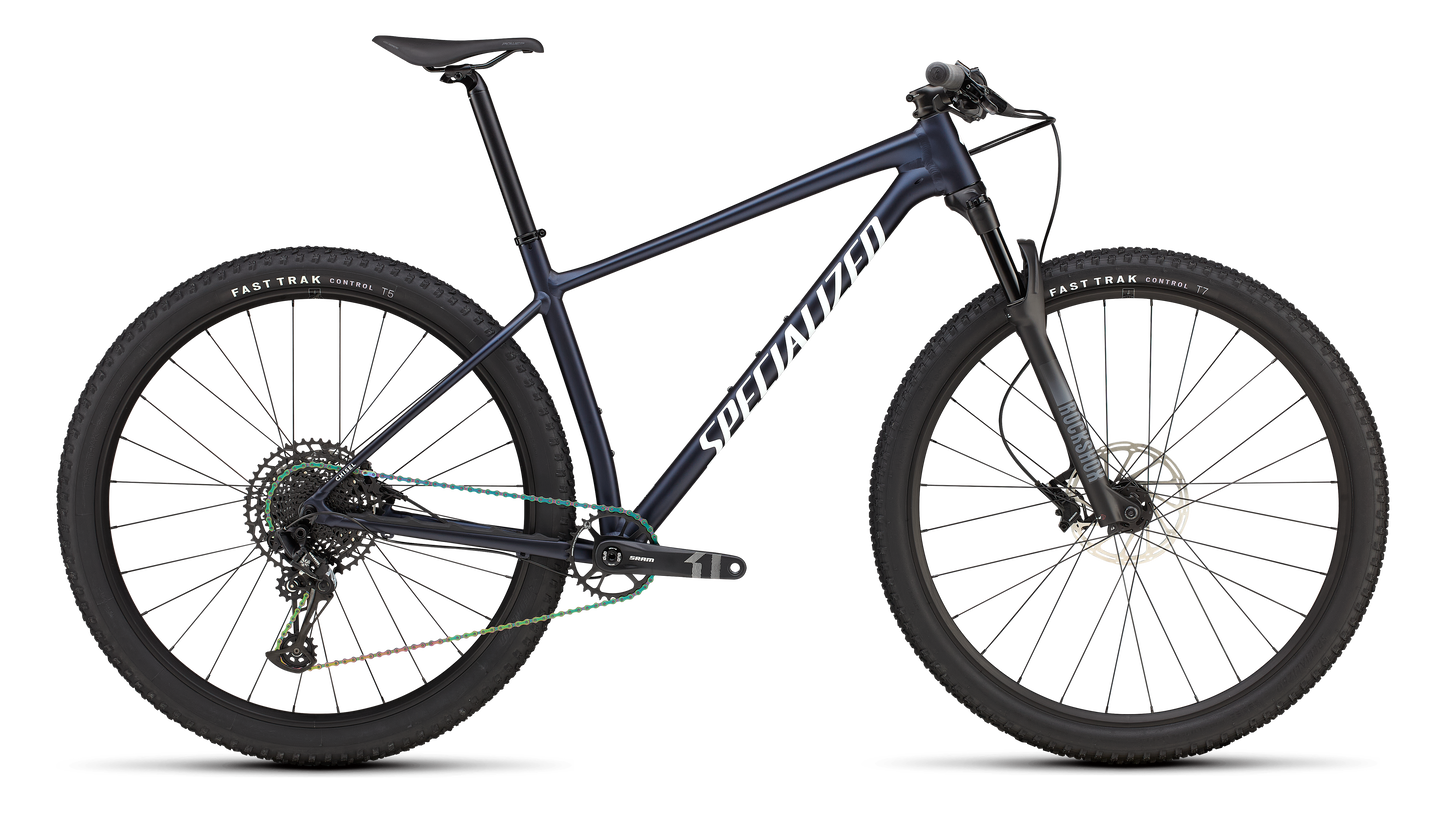

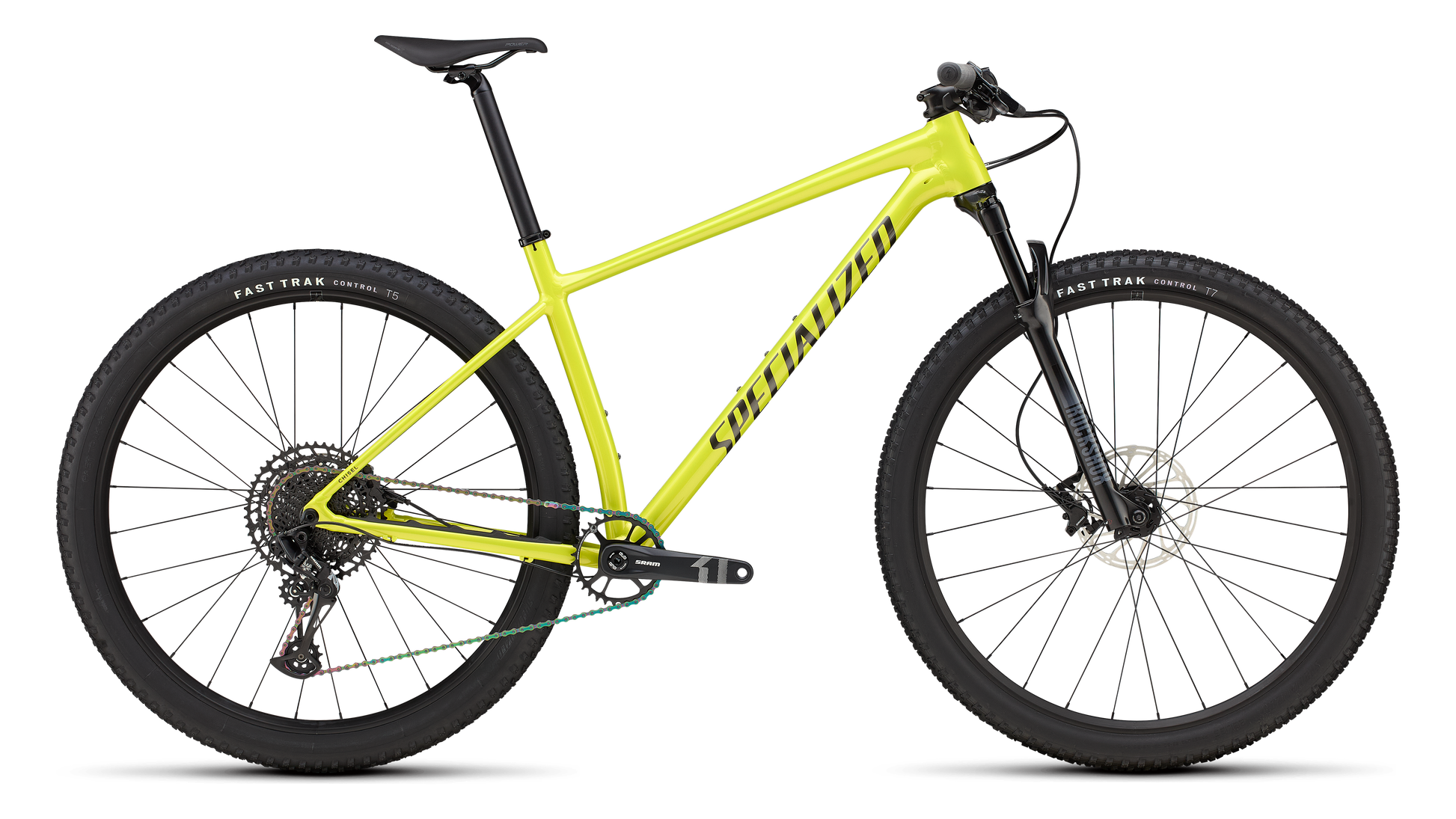

Chisel Hardtail Comp
Chisel Hardtail Comp
SKU:91725-5003
Product Enquiry
Thank you for submitting your form!
We appreciate your interest and will review your information as soon as possible.
Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.
Chisel Size Guide
Product Details

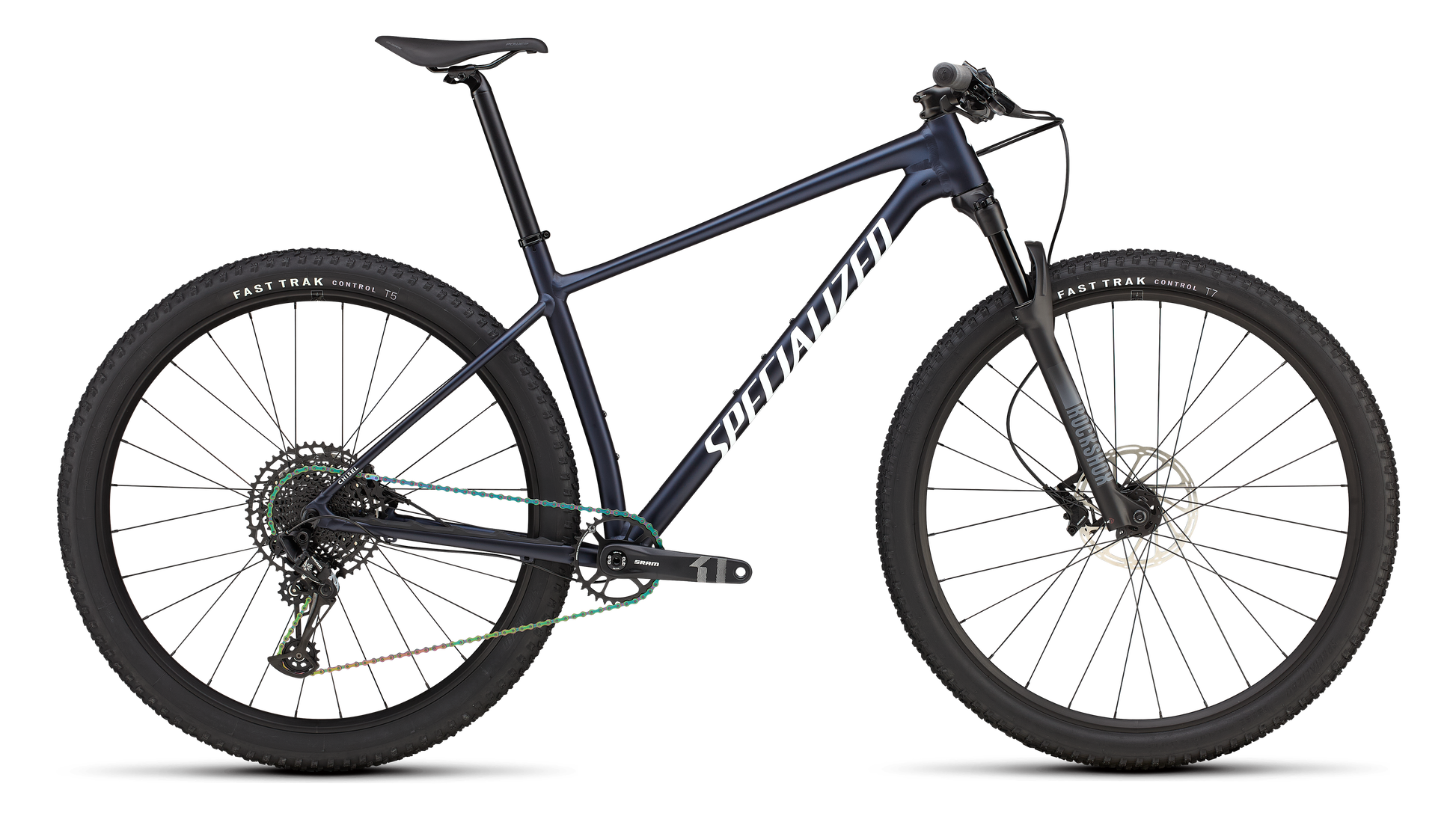

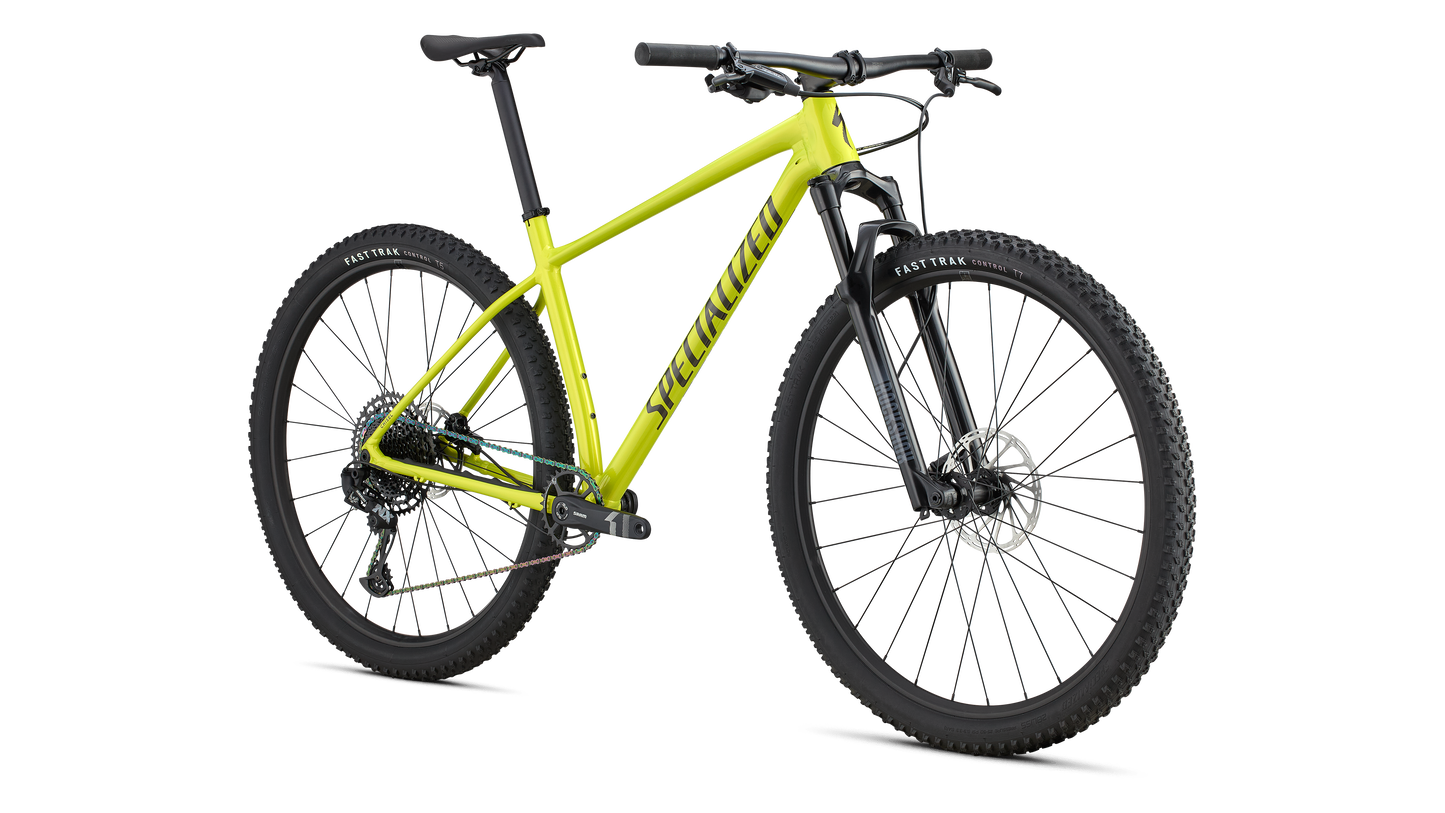

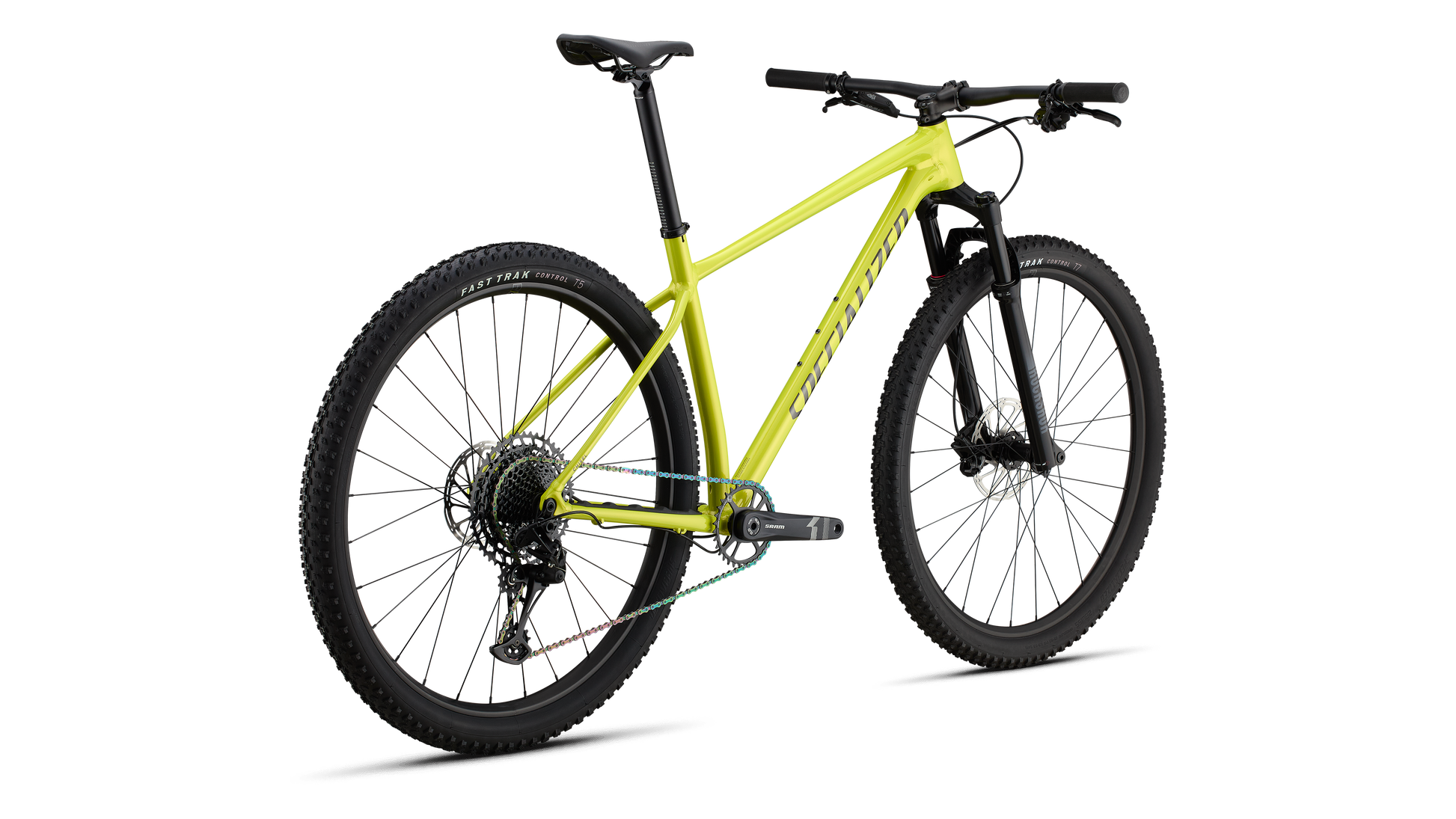

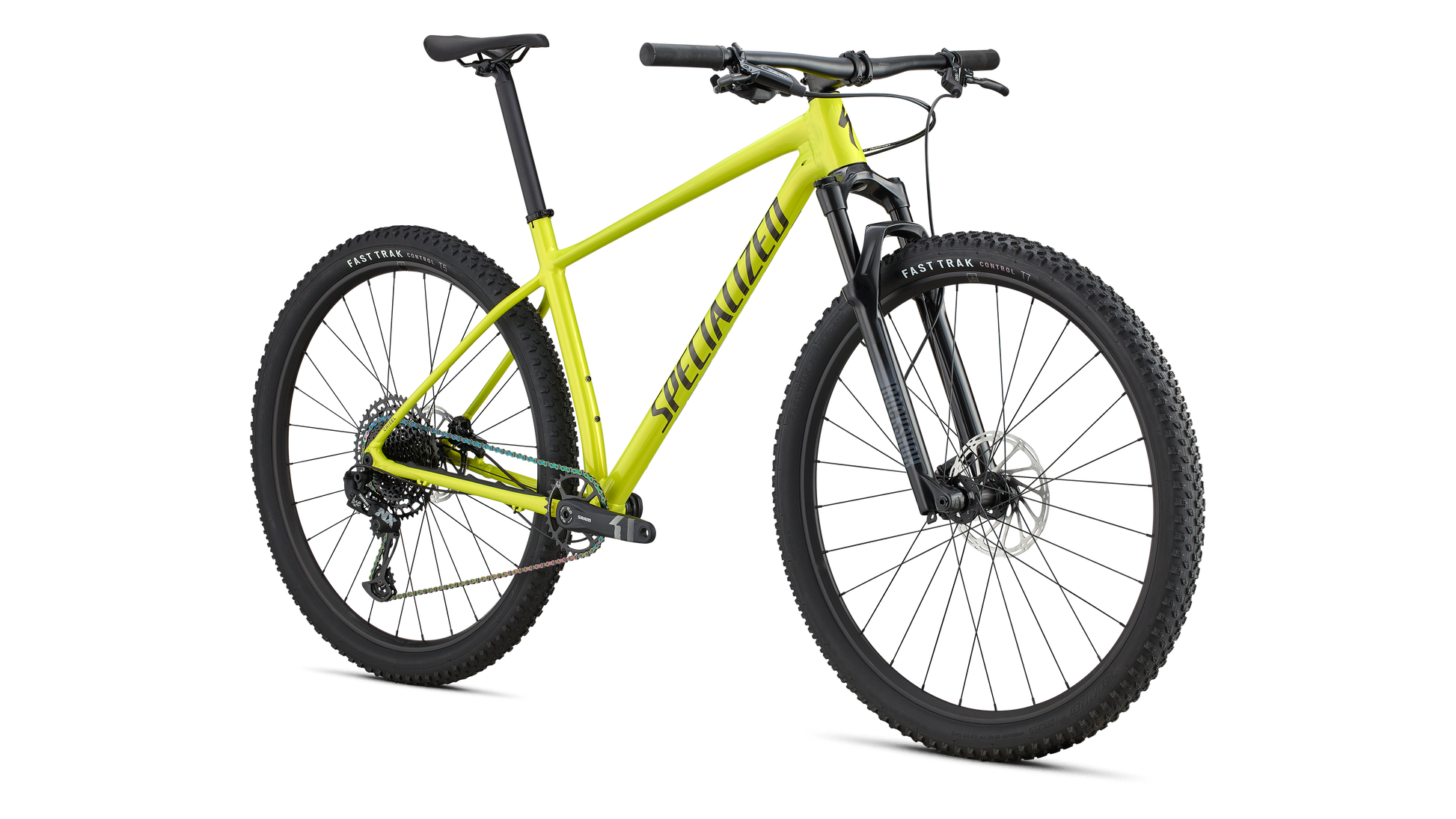

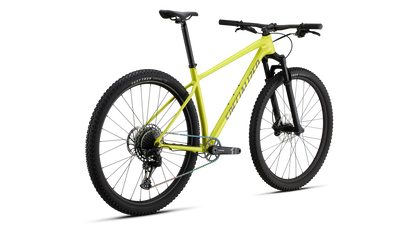

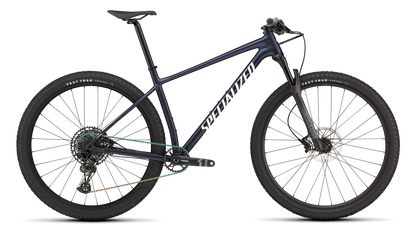

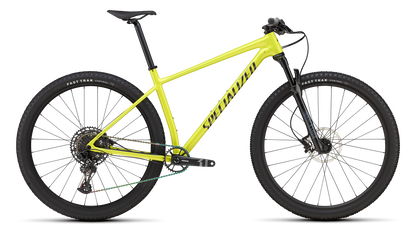

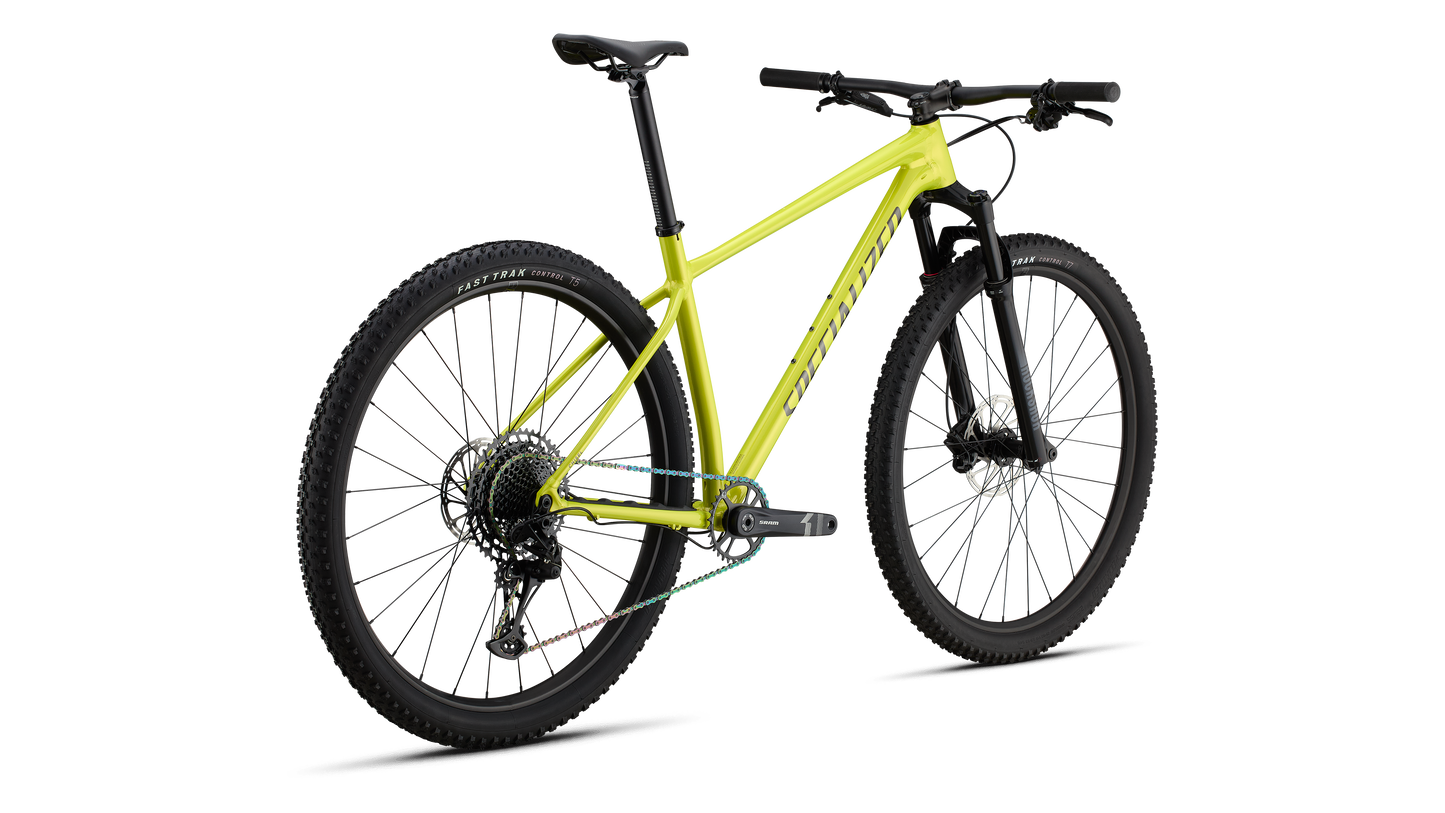

The Chisel has been purpose-built to tackle modern cross-country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there. This Chisel comes with SRAM's tried and true NX Eagle 1x12 speed drivetrain and Level T hydraulic disc brakes, a RockShox Judy Gold fork, and 27mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires. We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
The Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Technical Specifications
Frameset
Frame
Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Seat Binder
Specialized Alloy, 34.9mm
Suspension
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
Cockpit
Seat Post
Specialized Alloy, Single Bolt, 30.9mm
Saddle
Body Geometry Power Sport, steel rails
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Grips
Specialized Trail Grips
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Brakes
Front Brake
SRAM Level T hydraulic disc, 2-Piston Caliper
Rear Brake
SRAM Level T hydraulic disc, 2-Piston Caliper
Drivetrain
Shift Levers
SRAM NX Eagle, trigger, 12-speed
Rear Derailleur
SRAM NX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50t
Crankset
SRAM FC X1 1000 EAGLE B148 DUB 32ST
Chain
SRAM XX1 Eagle, 12-speed
Chain Ring
32t
Bottom Bracket
SRAM DUB, BSA 73mm, Threaded
Wheels & Tyres
Front Hub
Alloy front hub, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear hub
Alloy rear hub, sealed cartridge bearings, 12x148mm thru-axle, 6-bolt, 28h
Front Tire
Specialized Fast Trak, Control Casing, T7 Compound, 29x2.35
Rear Tire
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
Spokes
Stainless, 14g
Tubes
Standard 40mm PV 29x1.75-2.4
