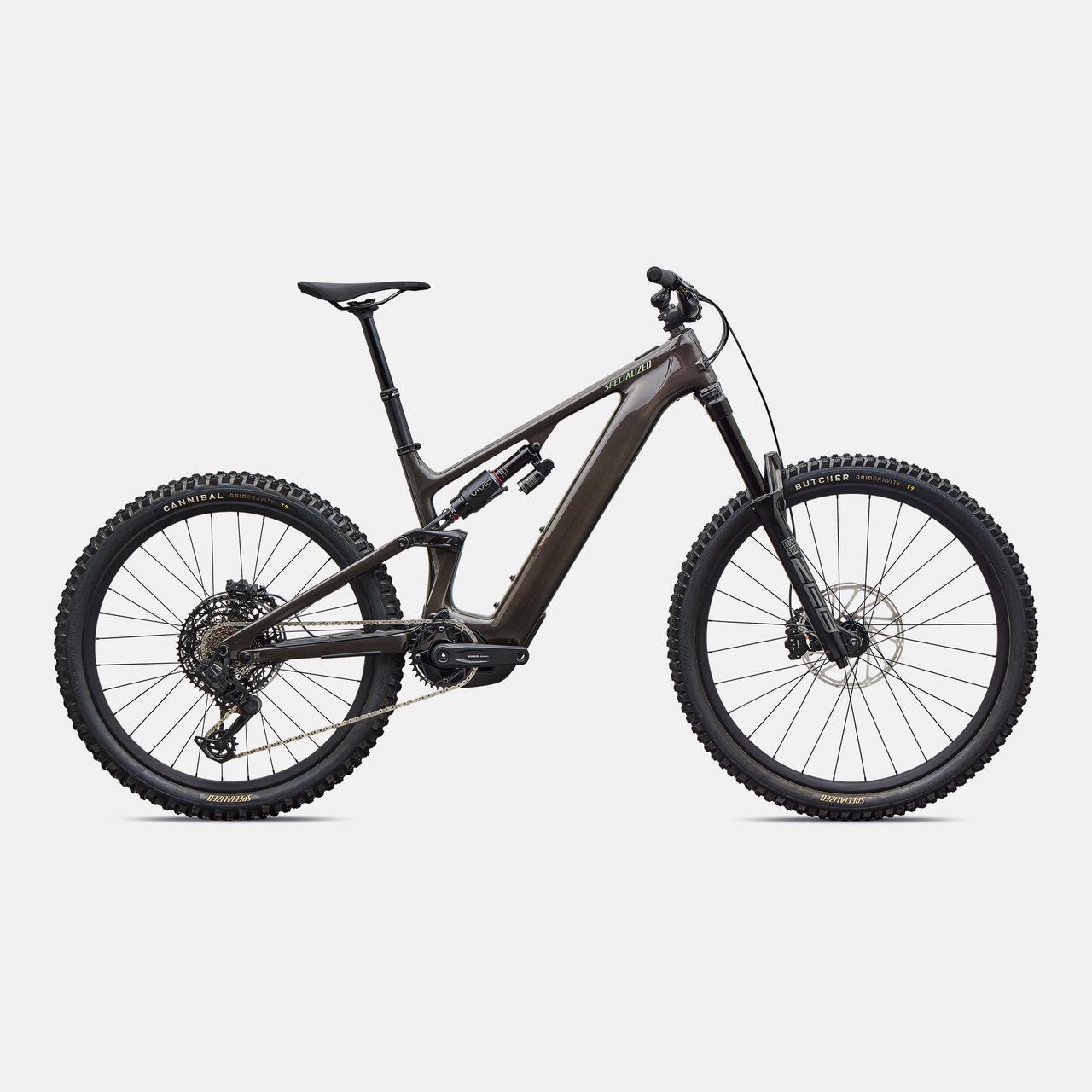

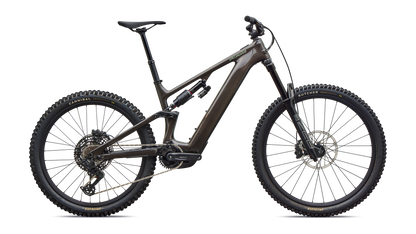

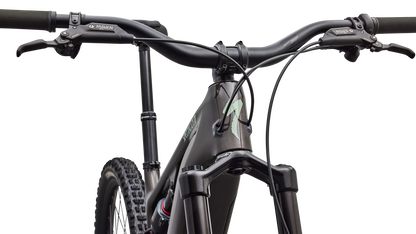

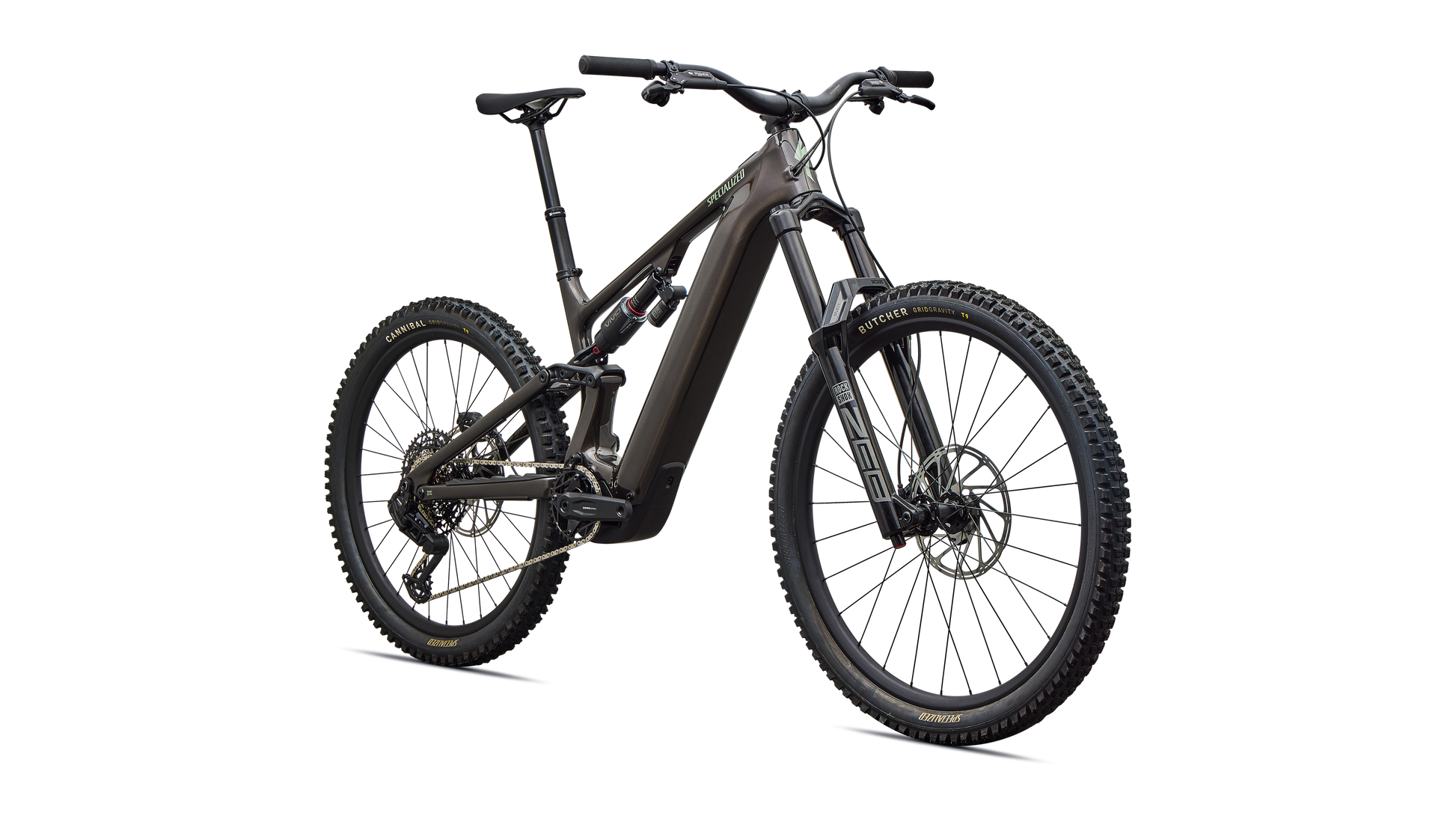

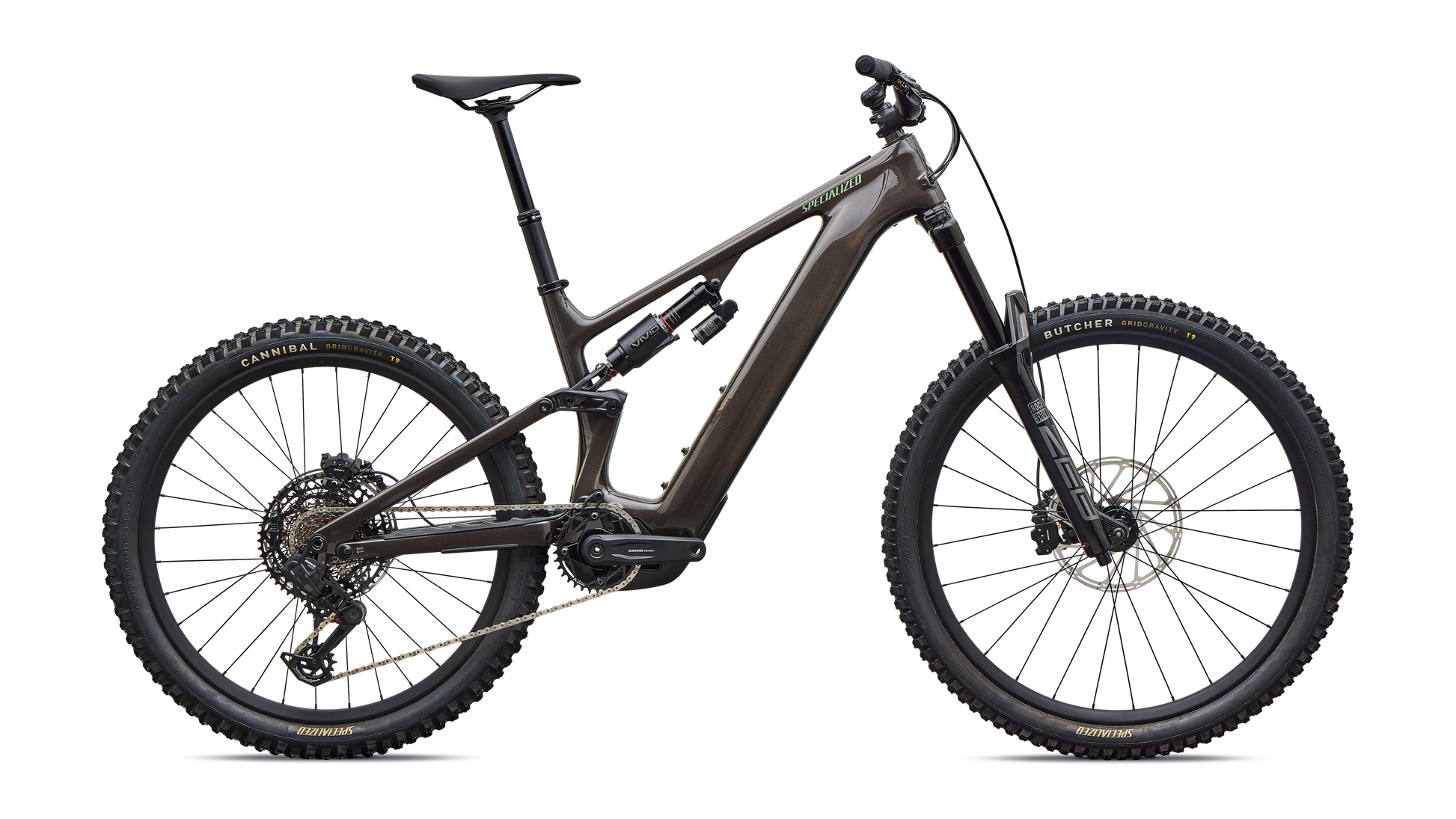

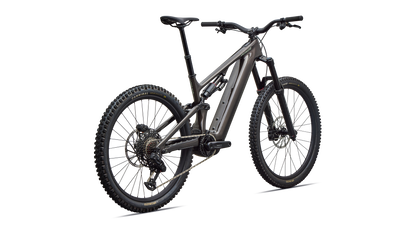

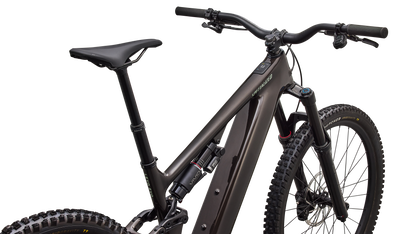

Turbo Levo 4 EVO Comp
Turbo Levo 4 EVO Comp
SKU:95227-5002
Find in-store
files/95227-50_LEVO-COMP-EVO-G4-WRMSMKMET-PST-BRSHCP_HERO-SQUARE.jpg
08:58 AM
Product enquiry
Thank you for submitting your form!
We appreciate your interest and will review your information as soon as possible.
Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.
Levo Size Guide
Product Details
Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric All Mountain Use - Electric All Mountain
E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
Suspension - Fork: 180mm RockShox Zeb Select
Shock: Vivid Select Air Linear
Drivetrain - SRAM S1000 Eagle AXS
Wheels - Sp[ecialized Alloy Wheels
Technical Specifications
Frameset
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Seat Binder
Alloy, 38.6mm
SWAT
SWAT Internal downtube storage
Suspension
Fork
All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Rear Shock
All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Cockpit
Seat Post
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Specialized Trail Grips

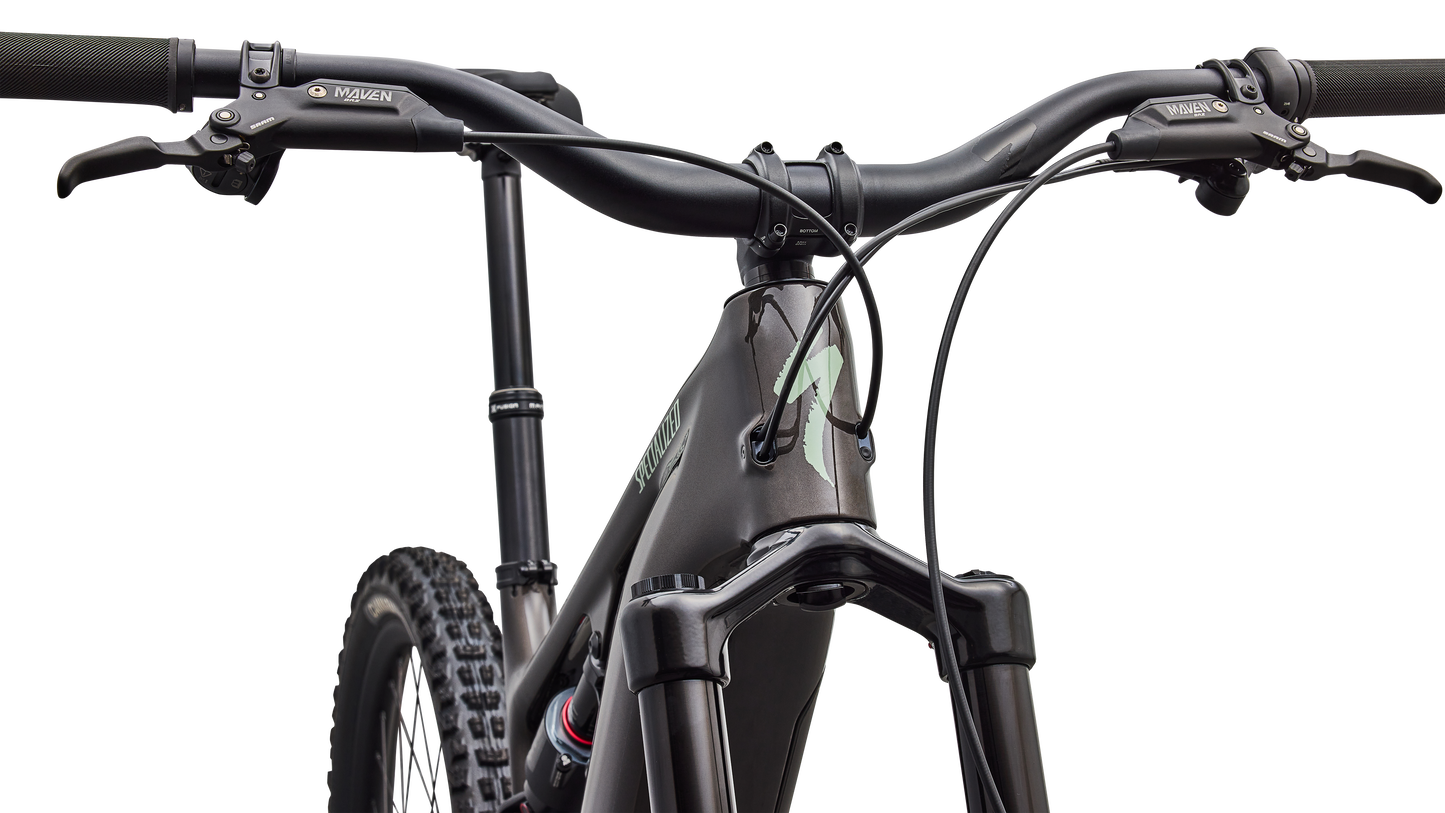

Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM S1000 Eagle AXS
Cassette
SRAM 12-speed,10-52t
Crankset
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Chain Ring
SRAM 34t T-Type chainring, 104 BCD, steel
E-Bike
Battery
840Wh battery
Charger
Specialized 4amp charger
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
UI Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Wheels & Tyres
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Spokes
DT Swiss Elemental
Tubes
Standard, Presta Valve
