Product Details
📸 View our gallery of studio photographs here in the 'Carbon/Smoke' and 'Matte Maroon' colour scheme.

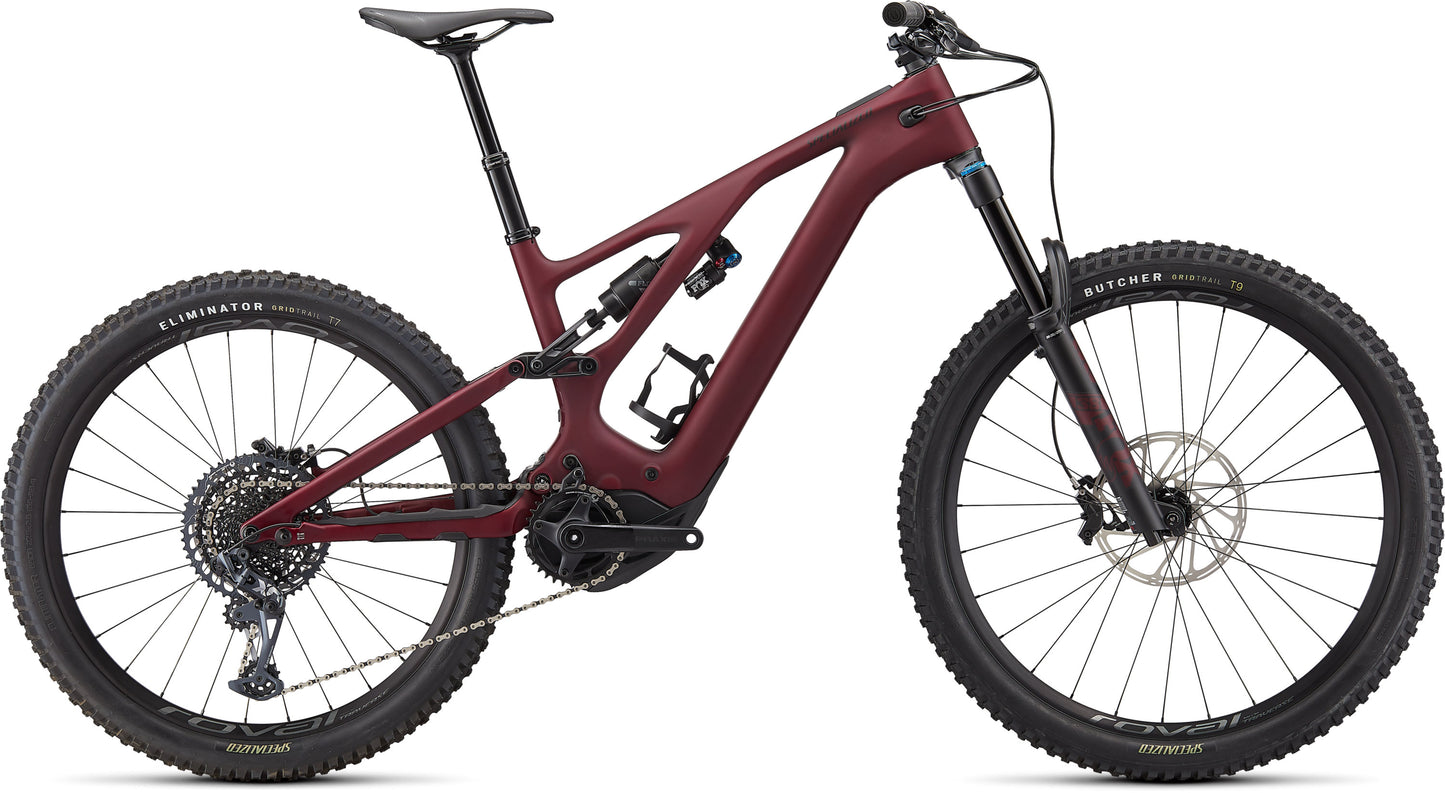

Specialized's latest offering in the third generation full-suspension Levo family. The all-new 2022 Levo Expert brings a more affordable price-tag, yet still boasts the same core market-leading technologies and ride feel from its elder siblings; the Pro and S-Works models. Sharing the same 11m FACT carbon frame, same 2.2 motor and same big 700Wh battery, the Levo Expert is trail-ready for your next season of premium e-MTBing!
The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.
It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts - 4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.
Here’s where the gloves come off—the Levo Expert brings it with SRAM’s robust X01 Eagle 12-speed drivetrain, dialed-in FOX Performance Elite suspension, and a high-performing Roval Traverse wheelset.
- Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.
- The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
- A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
- Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
- Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
- The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Specifications:
Frame |
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
Rear Shock |
Fox Float X2 Performance Elite, LSC, LSR, 2-position lever, 55x210mm |
Fork |
Fox Float 38 Performance Elite 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel |
Stem |
Alloy Trail Stem, 35mm bar bore |
Saddle |
Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Handlebars |
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp |
Grips |
Deity, Knuckleduster, Black |
Front Brake |
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm |
Rear Brake |
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
Rear Derailleur |
Sram X01 Eagle, 12-speed |
Shift Levers |
SRAM XO1 Eagle trigger, 12-speed, single click |
Cassette |
SRAM XG-1275, 12-speed, 10-52t |
Chain |
SRAM GX Eagle, 12-speed |
Crankset |
Praxis forged M30, custom offset, 160mm |
Chainrings |
SRAM X-Sync Eagle, 104 BCD, 32T, steel |
Front Wheel |
Traverse 29 |
Rear Wheel |
Traverse 27.5 |
Front Tyre |
Butcher, Grid Trail casing, Gripton T9 compound, tubeless ready, 29x2.6" |
Rear Tyre |
Eliminator, Grid Trail casing, Gripton T7 compound, tubeless ready, 27.5x2.6" |
Inner Tubes |
Standard, Presta Valve |
Seat post |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm |
Seat post collar |
Alloy, 38.6mm |
Motor |
Specialized Turbo Full Power System 2.2 Motor |
UI/Remote |
Specialized MasterMind TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth, with handlebar remote |
Battery |
Specialized M3-700, Integrated battery, 700Wh |
Charger |
Custom charger, 42V4A with Rosenberger plug |
Wiring Harness |
Custom Specialized wiring harness. |
SWAT Tool |
SWAT CC steerer tube integrated tool with chain tool and link. |
Test Pedals |
Not included on performance Specialized bikes for environmental reasons. Pedals are an additional purchase, based on preference and riding style. |
Geometry & Sizing:
S1 |
S2 |
S3 |
S4 |
S5 |
S6 |
|
BB Drop |
25 |
27 |
27 |
27 |
27 |
27 |
BB Height |
352 |
350 |
350 |
350 |
350 |
350 |
Bike Standover Height |
752 |
776 |
783 |
787 |
788 |
790 |
Chainstay Length |
442 |
442 |
442 |
442 |
442 |
442 |
Crank Length |
160 |
160 |
160 |
160 |
160 |
160 |
Fork Length (full) |
557 |
567 |
567 |
567 |
567 |
567 |
Fork Rake/Offset |
44 |
44 |
44 |
44 |
44 |
44 |
Front Center |
738 |
760 |
784 |
814 |
843 |
878 |
Handlebar Width |
780 |
780 |
780 |
780 |
780 |
780 |
Headtube Angle |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
64.5° |
Headtube Length |
105 |
105 |
115 |
125 |
135 |
145 |
Max Seatpost Insertion |
210 |
220 |
240 |
255 |
275 |
295 |
Min Seatpost Insertion |
80 |
80 |
80 |
80 |
80 |
80 |
Reach |
412 |
432 |
452 |
477 |
502 |
532 |
Saddle Width |
155 |
143 |
143 |
143 |
143 |
143 |
Seat Tube Angle |
78° |
77.2° |
76.7° |
76.2° |
76.2° |
76.2° |
Seat Tube Length |
380 |
390 |
405 |
425 |
445 |
465 |
Seatpost Length |
125 |
125 |
150 |
175 |
175 |
200 |
Stack |
605 |
617 |
626 |
635 |
644 |
653 |
Stem Length |
35 |
50 |
50 |
50 |
50 |
50 |
*Barring angle values marked by their degree symbol (°), all chart measurements above are listed in millimetres (mm).
Adjustable Geometry:
The 2022 Levo's head tube angle can be adjusted between 63 and 65.5 degrees, while bottom bracket height can be quickly, and easily, moved up or down by 7mm to hone handling manners from stable to nimble. All together, that's six geometry settings to your disposal, all of which will give a distinct feel to your ride. More on the Levo's geometry in this video...
Detailed below are the 2022 Levo Expert's sizes, with their respective rider's height ranges to which they suit.
S2 - 157cm to 173cm (5'2" to 5'8")
S3 - 165cm to 180cm (5'5" to 5'11")
S4 - 173cm to 188cm (5'8" to 6'2")
S5 - 178cm to 193cm (5'10" to 6'4")
S6 - 188cm to 203cm (6'2" to 6'8")
Please note, while you may fit snuggly (according to the size guide) into one particular size, we advise you size DOWN for more manoeuvrability in tight corners or playfulness in flicking the bike in the air. Conversely, size UP for more stability through rough fast rock gardens, aggressive root sections, etc. Our staff will happily engage you in this wider sizing conversation to have you riding the right size bike for your height and riding style.
Technical Specifications
Frameset
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Seat Binder
Alloy, 38.6mm
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Suspension
Fork
FOX FLOAT 38 Performance Elite 29, Grip2 damper, 44mm offset, HSC, LSC, HSR, LSR, 110x15mm, 1.5" tapered steerer, 160mm travel
Rear Shock
S1: Fox Float DPS Performance, S2-S6: FOX FLOAT X2 Performance, LSC, LSR, 2-position lever
Cockpit
Seat Post
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Stem
Alloy Trail Stem, 35mm bar bore
Grips
Deity, Knuckleduster, Black
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Brakes
Front Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm
Rear Brake
SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Shift Levers
SRAM XO1 Eagle trigger, 12-speed, single click
Rear Derailleur
Sram X01 Eagle, 12-speed
Cassette
Sram XG-1275, 12-speed, 10-52t
Crankset
Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
Chain
SRAM GX Eagle, 12-speed
Chain Ring
SRAM X-Sync Eagle, 104 BCD, 32T, steel
E-Bike
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Motor
Specialized Turbo Full Power System 2.2 Motor
UI Remote
Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Wiring Harness
Custom Specialized wiring harness
Wheels & Tyres
Front Wheel
Traverse 29
Rear Wheel
Traverse 27.5
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Tubes
Standard, Presta Valve
