Specialized

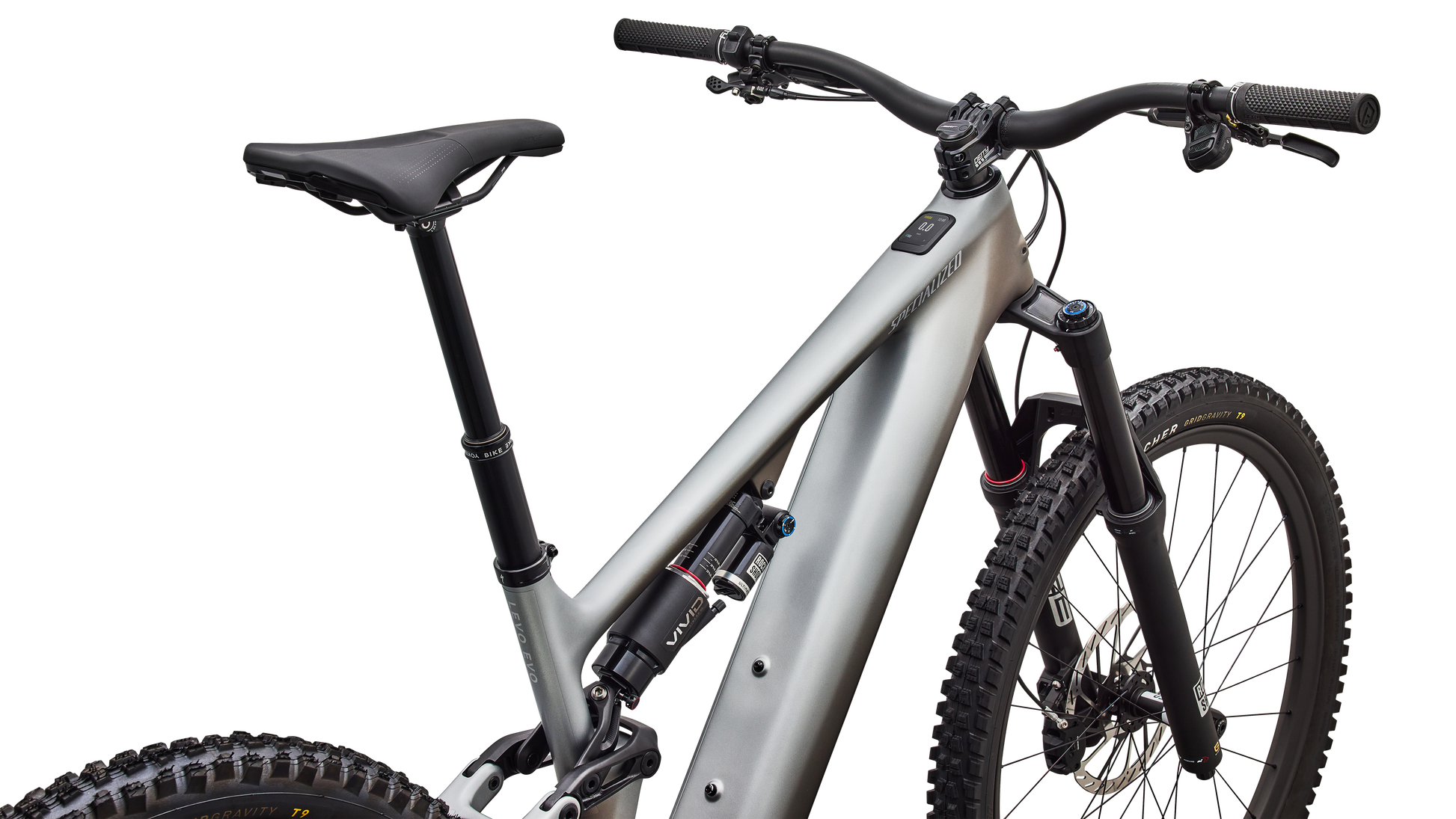

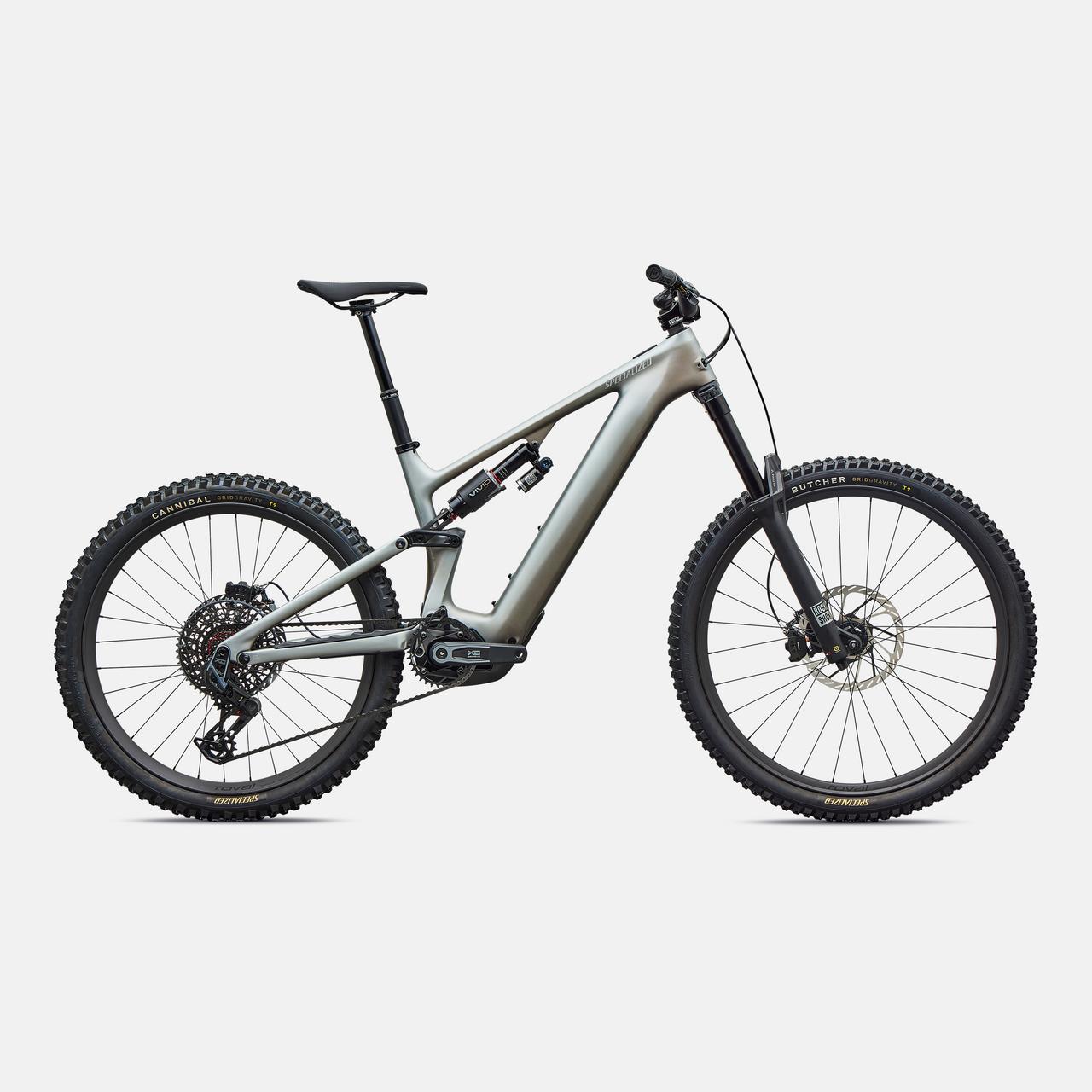

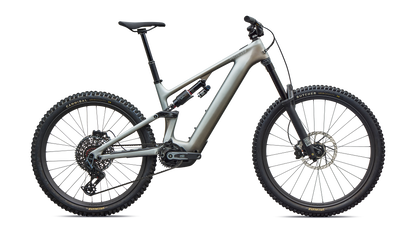

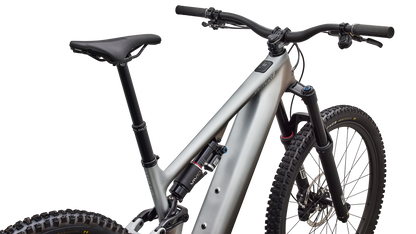

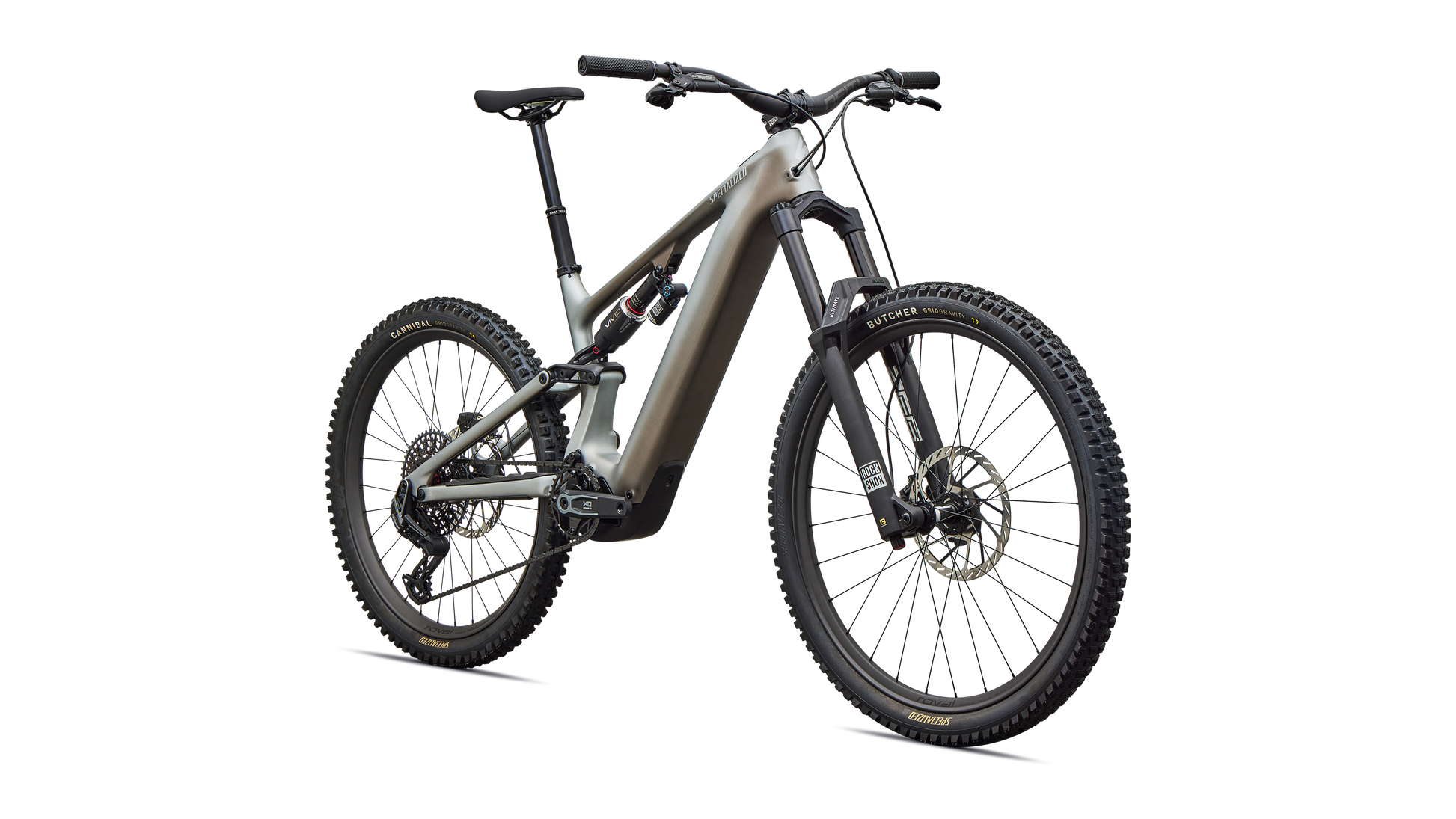

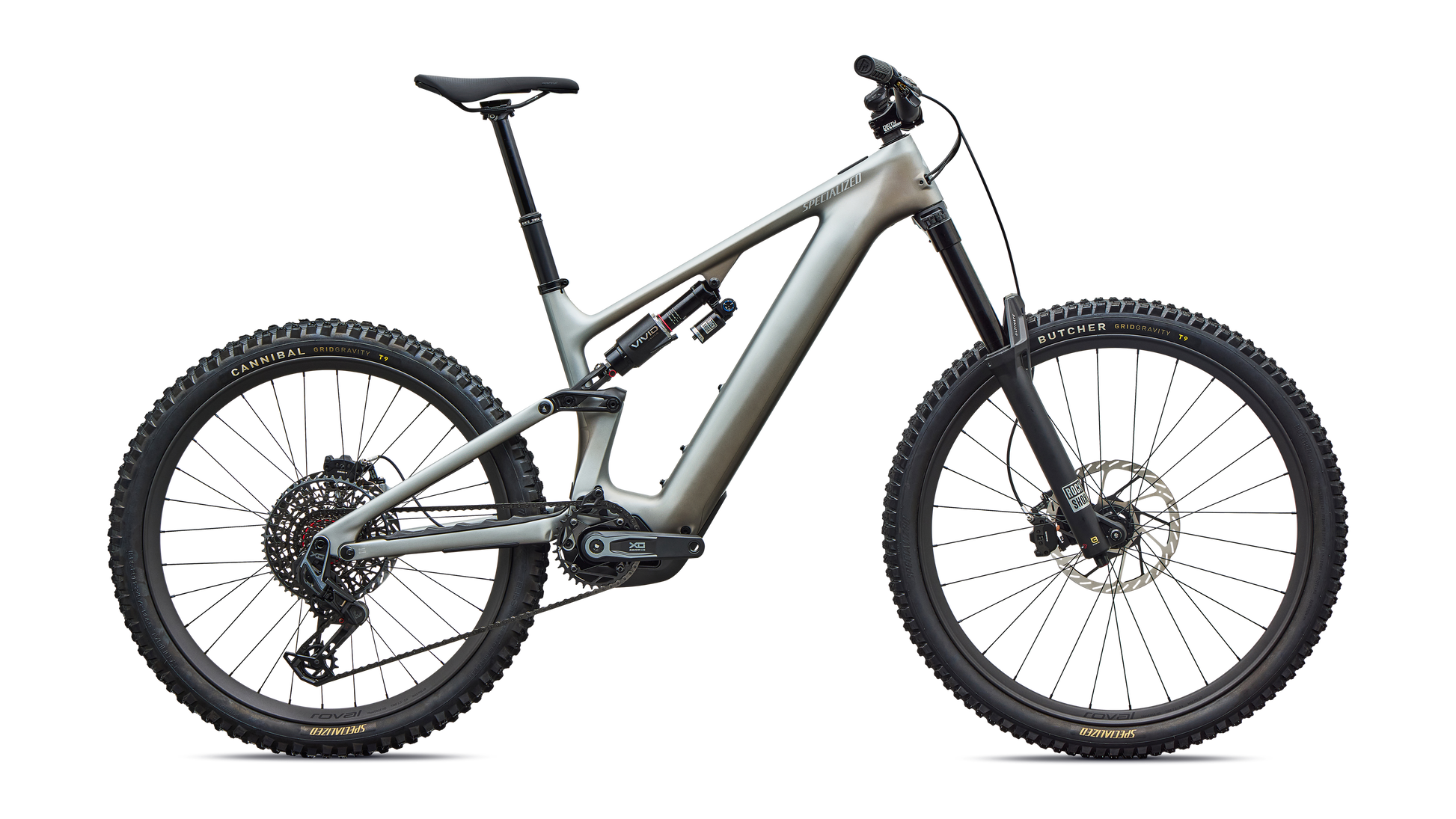

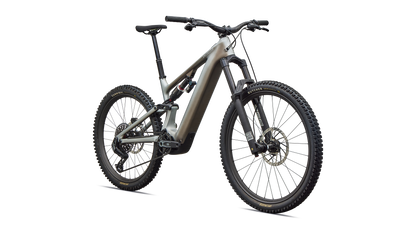

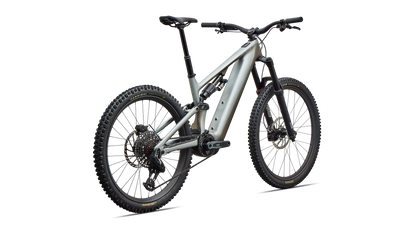

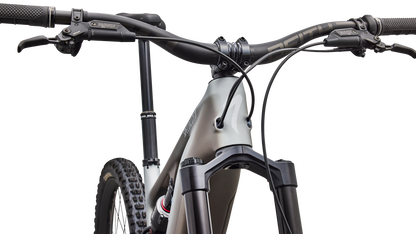

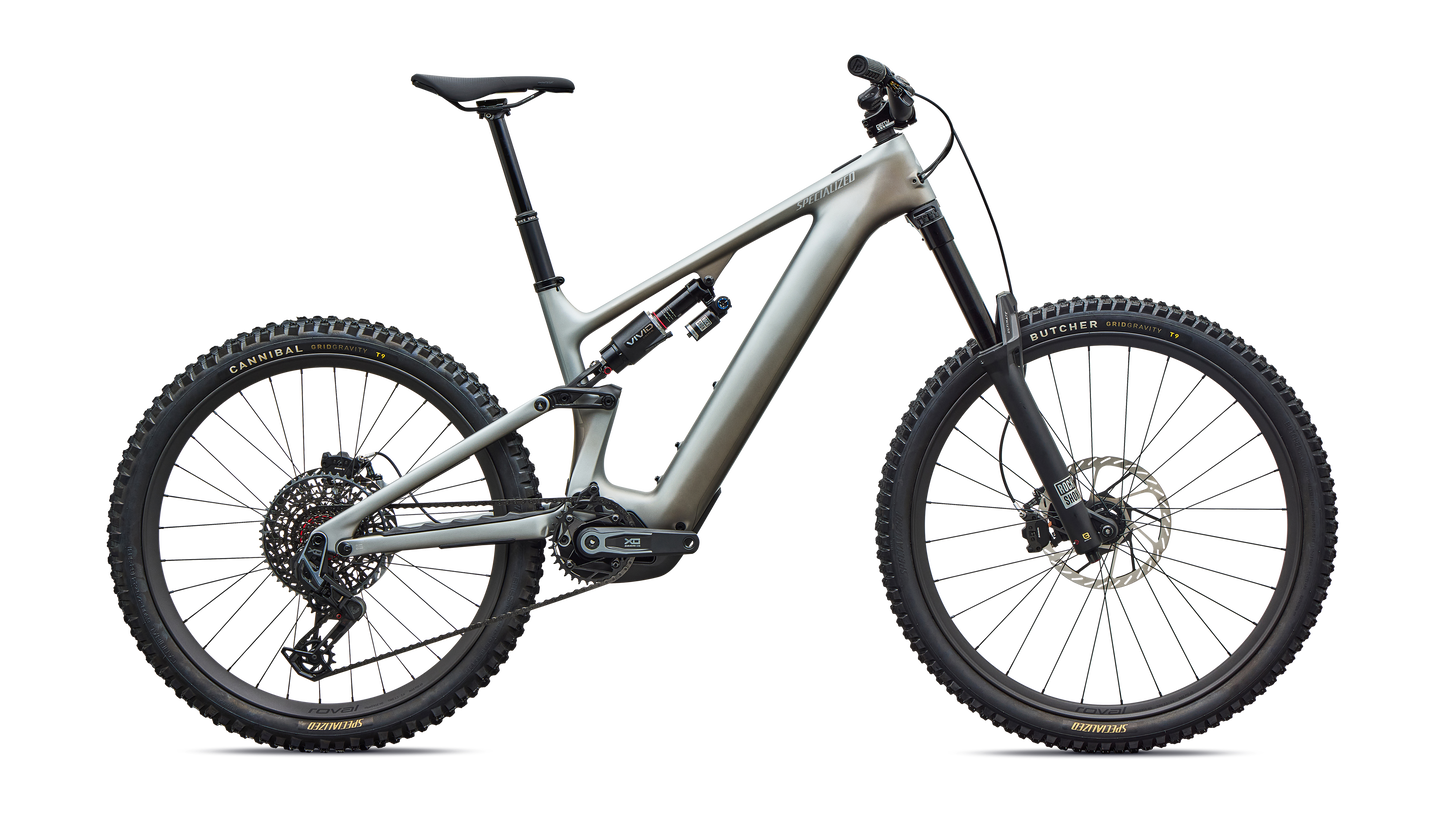

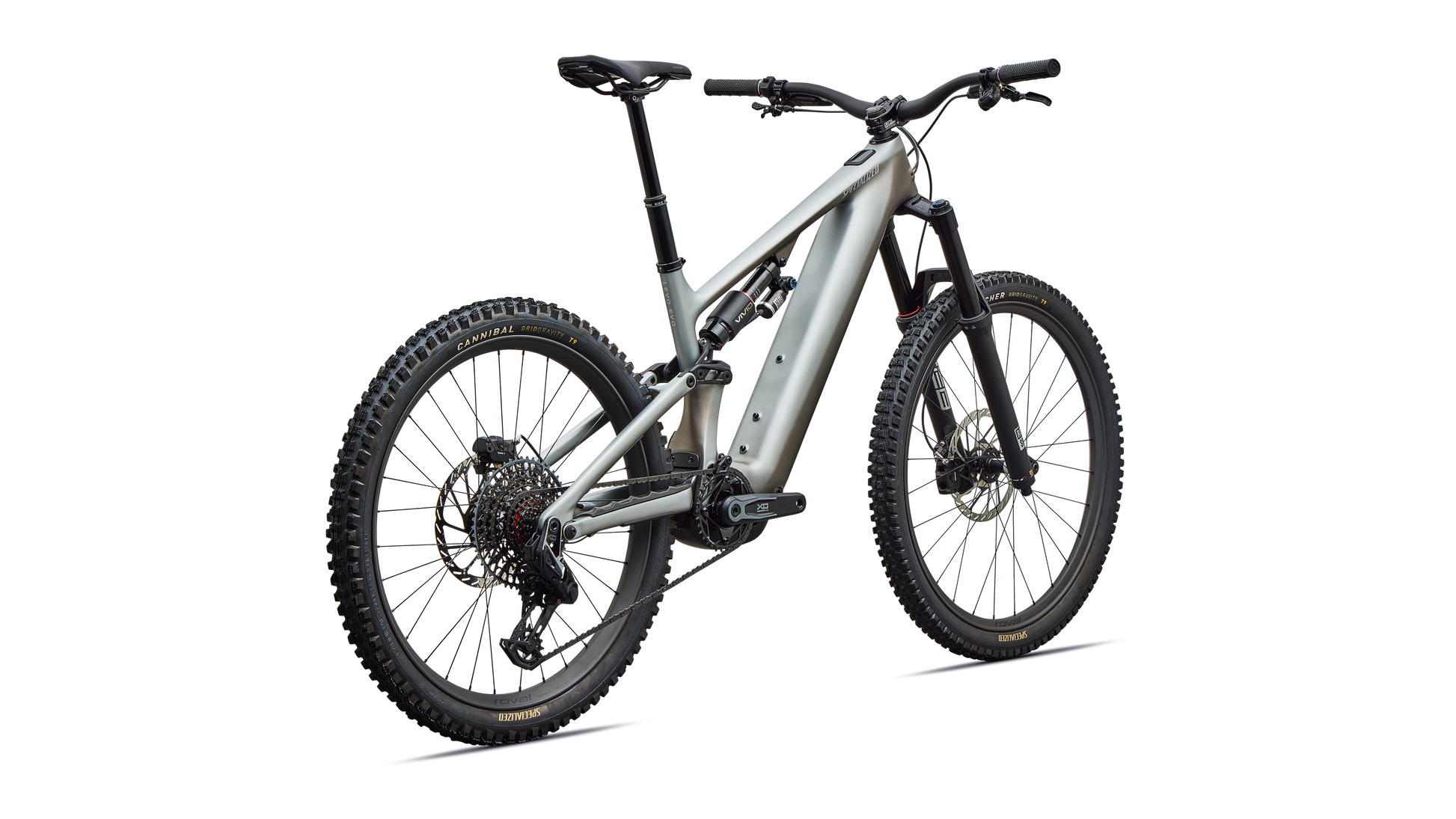

Levo 4 EVO Pro

Levo 4 EVO Pro

95227-1002

$19,990.00
$0.00 $19,990.00
Sale Contact Us for Availability
Tax included. Shipping calculated at checkout.
Colour
Size
View Size Guide

Find in-store

Loading locations...

Product enquiry

Thank you for submitting your form!

We appreciate your interest and will review your information as soon as possible.

Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.

View full details

Product Details

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric All Mountain Use - Electric All Mountain

E-System - Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame - Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage

Suspension - Fork: 180mm RockShox Zeb Ultimate
Shock: Vivid Ultimate Air Linear

Drivetrain - SRAM X0 Eagle Transmission

Wheels - Traverse HD with DT Swiss 350 hubs







Technical Specifications

Frameset

Frame

Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Seat Binder

Alloy, 38.6mm

SWAT

SWAT Internal downtube storage

Suspension

Fork

All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Rear Shock

All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust

Cockpit

Seat Post

Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm

Saddle

Bridge Expert with MIMIC, Hollow Ti rails

Stem

Deity, 35mm clamp, 42mm length

Grips

Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

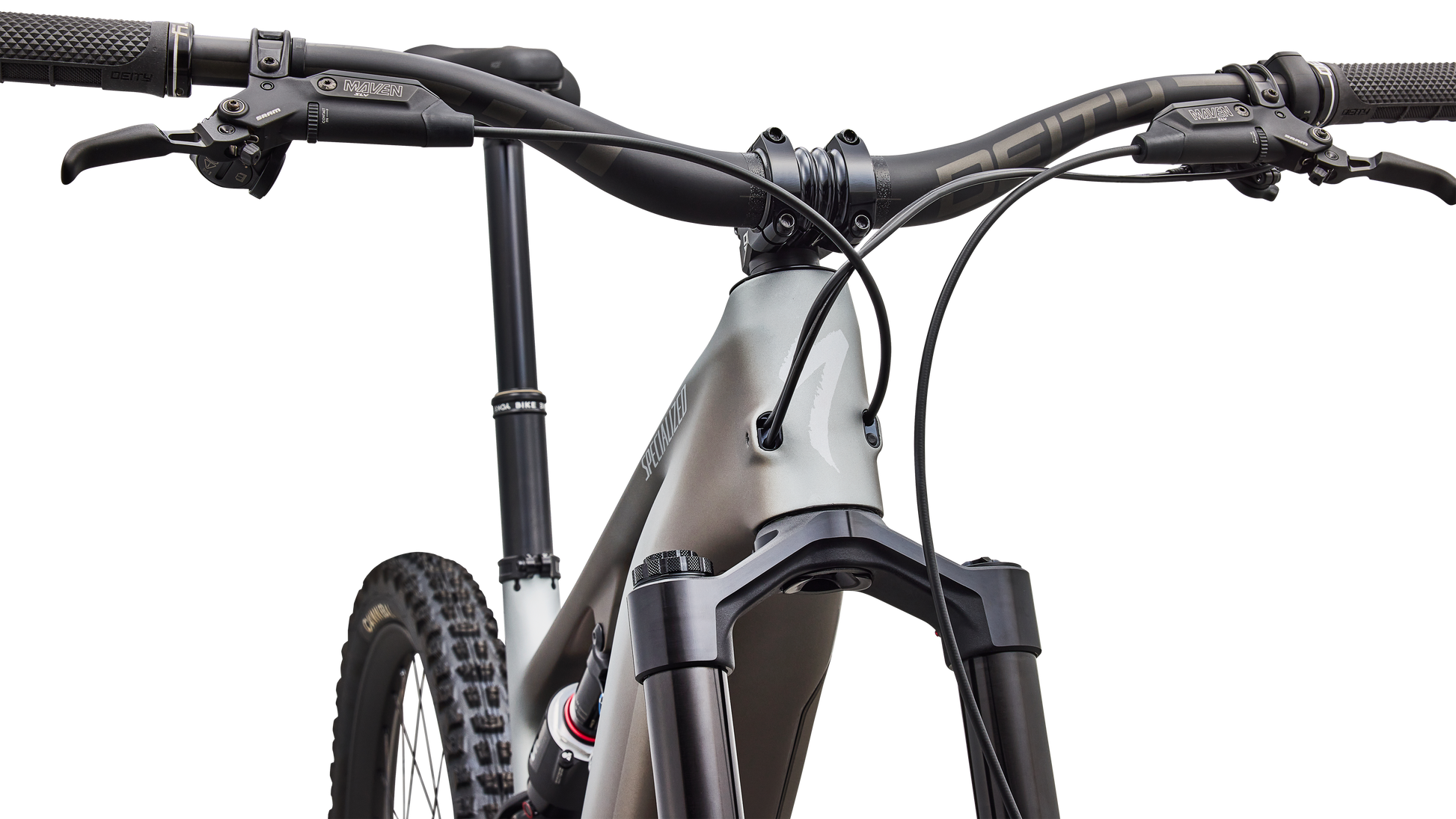

Handlebars

Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise

Brakes

Front Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake

SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain

Shift Levers

SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur

SRAM X0 Eagle Transmission

Cassette

SRAM XS 1295, 12 speed, 10-52

Crankset

SRAM XO Alloy crank, 155mm, ISIS interface

Chain

SRAM X0 Eagle Transmission 12-Speed Flattop Chain

Chain Ring

SRAM 34t T-Type chainring, 104 BCD, steel

E-Bike

Battery

840Wh battery

Charger

Specialized 4amp charger

Motor

Specialized 3.1 Motor, 105Nm torque, 810W power

UI Remote

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Wheels & Tyres

Front Wheel

Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width

Rear Wheel

Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"

Tubes

Standard, Presta Valve
