Specialized

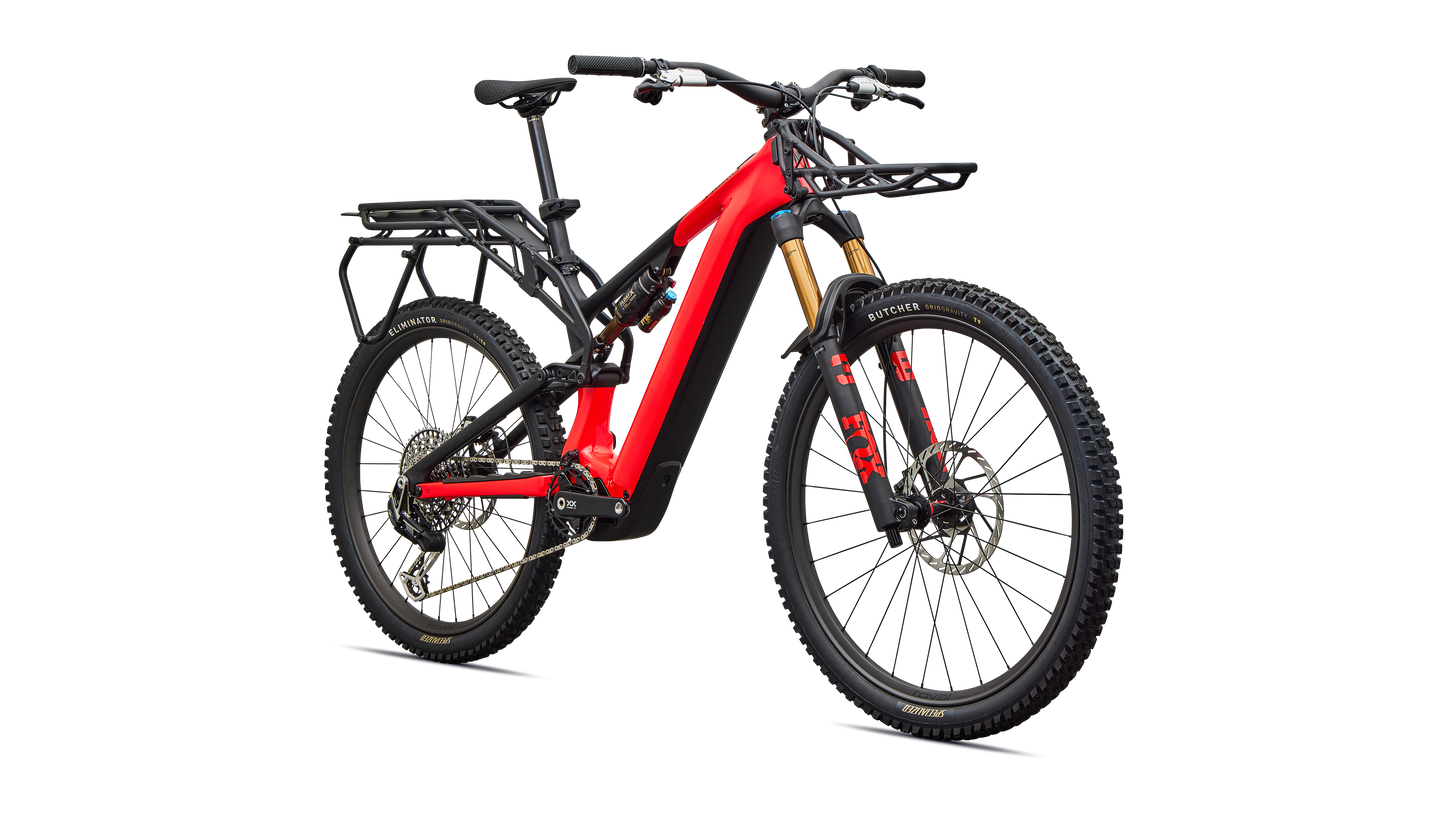

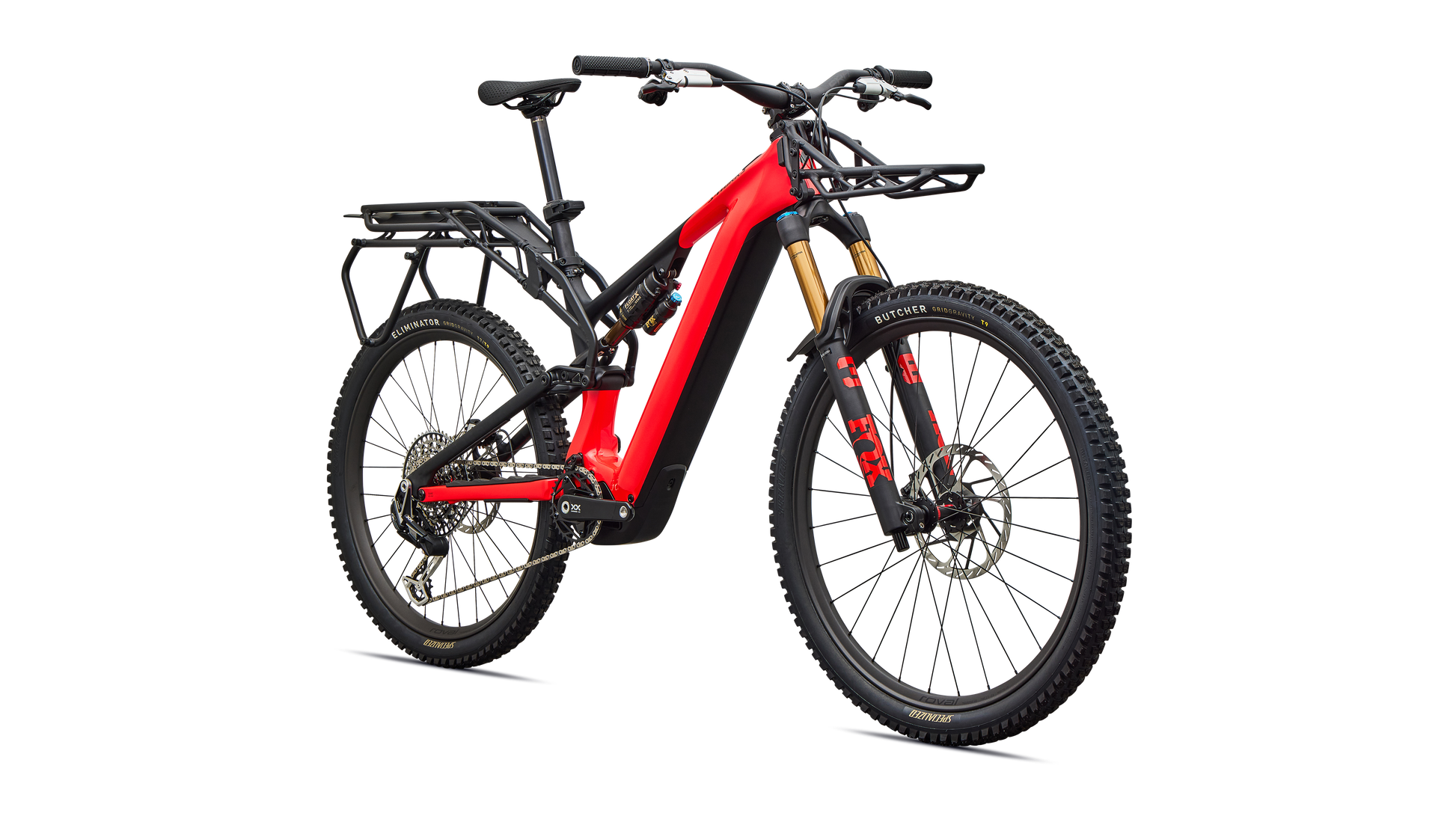

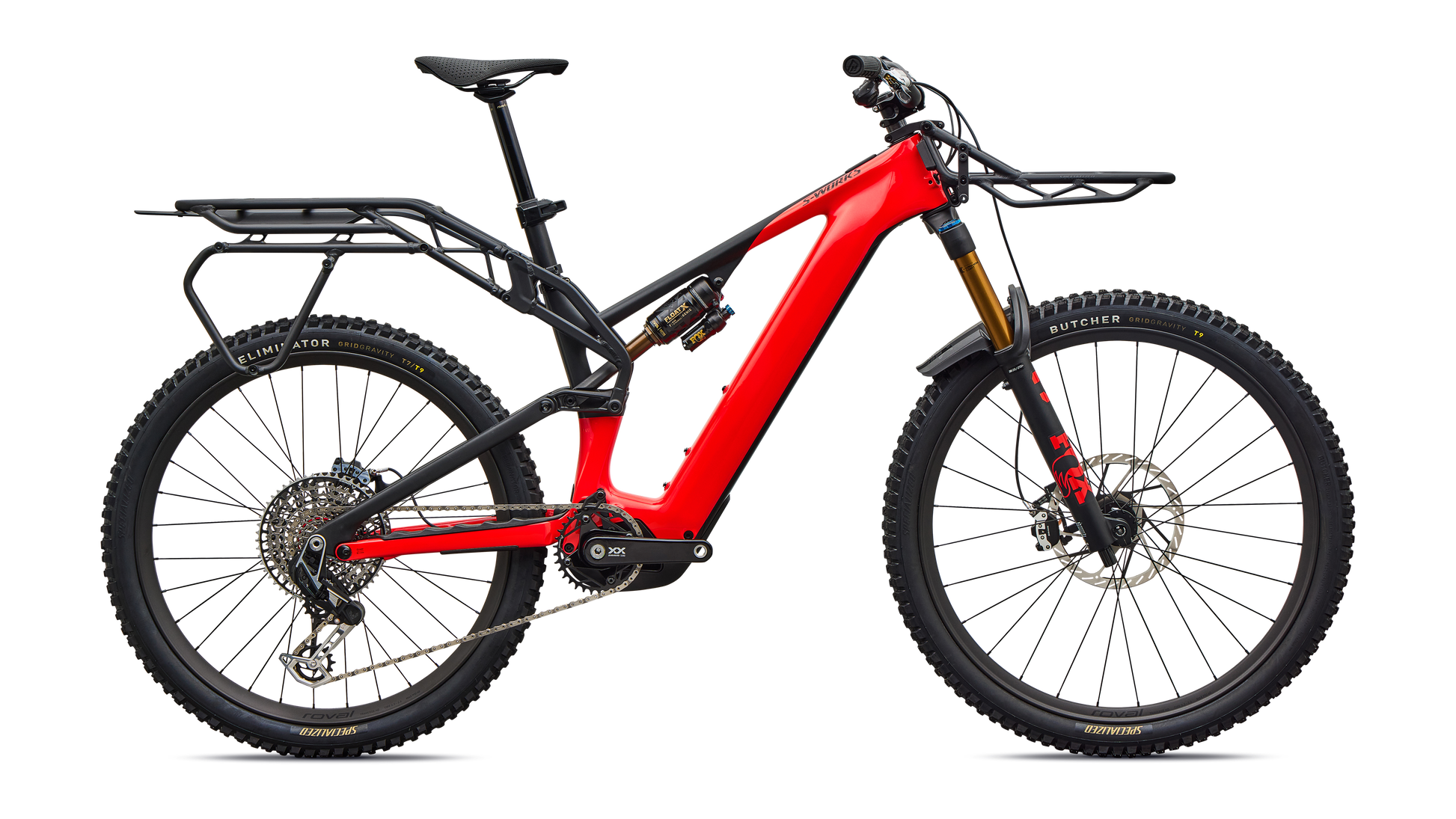

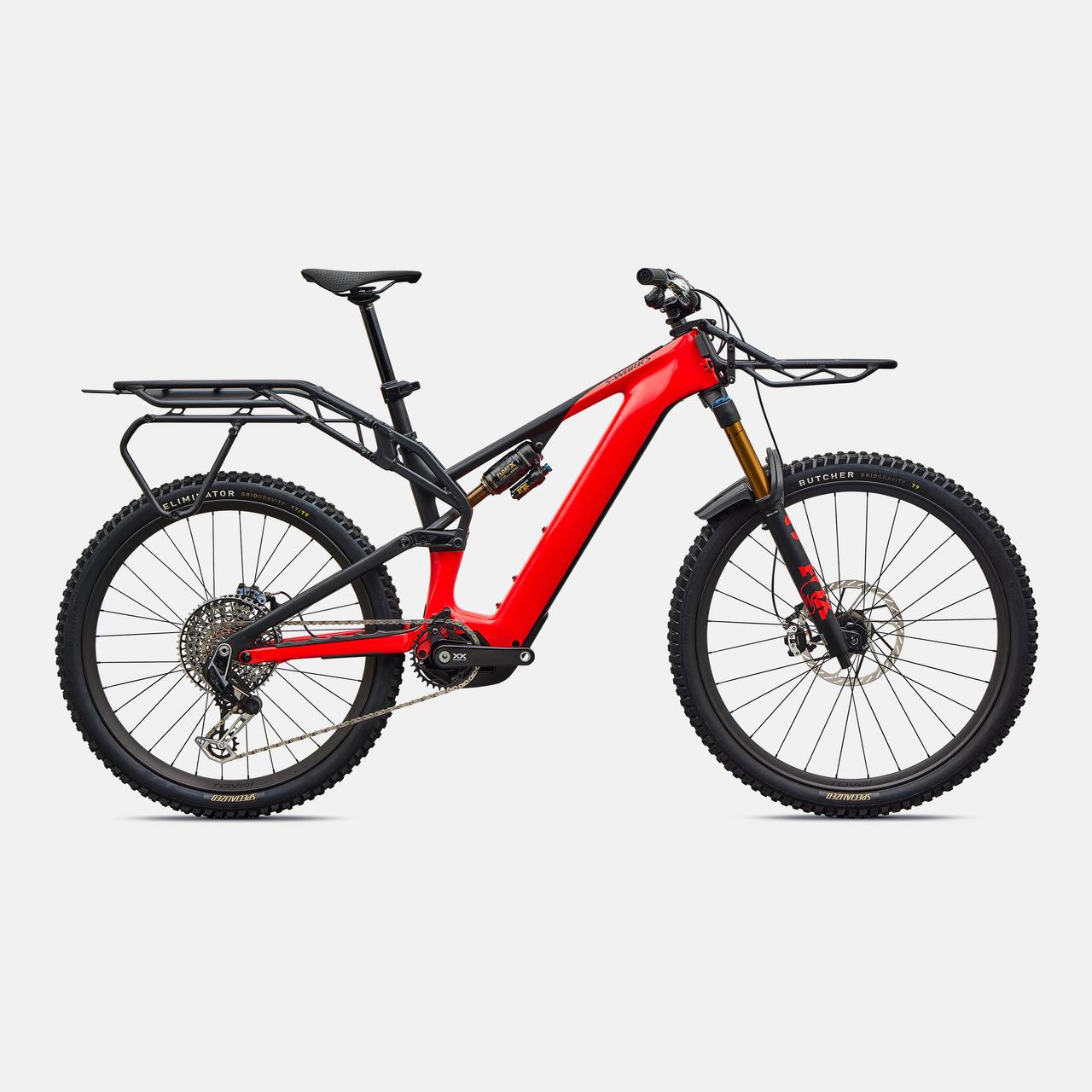

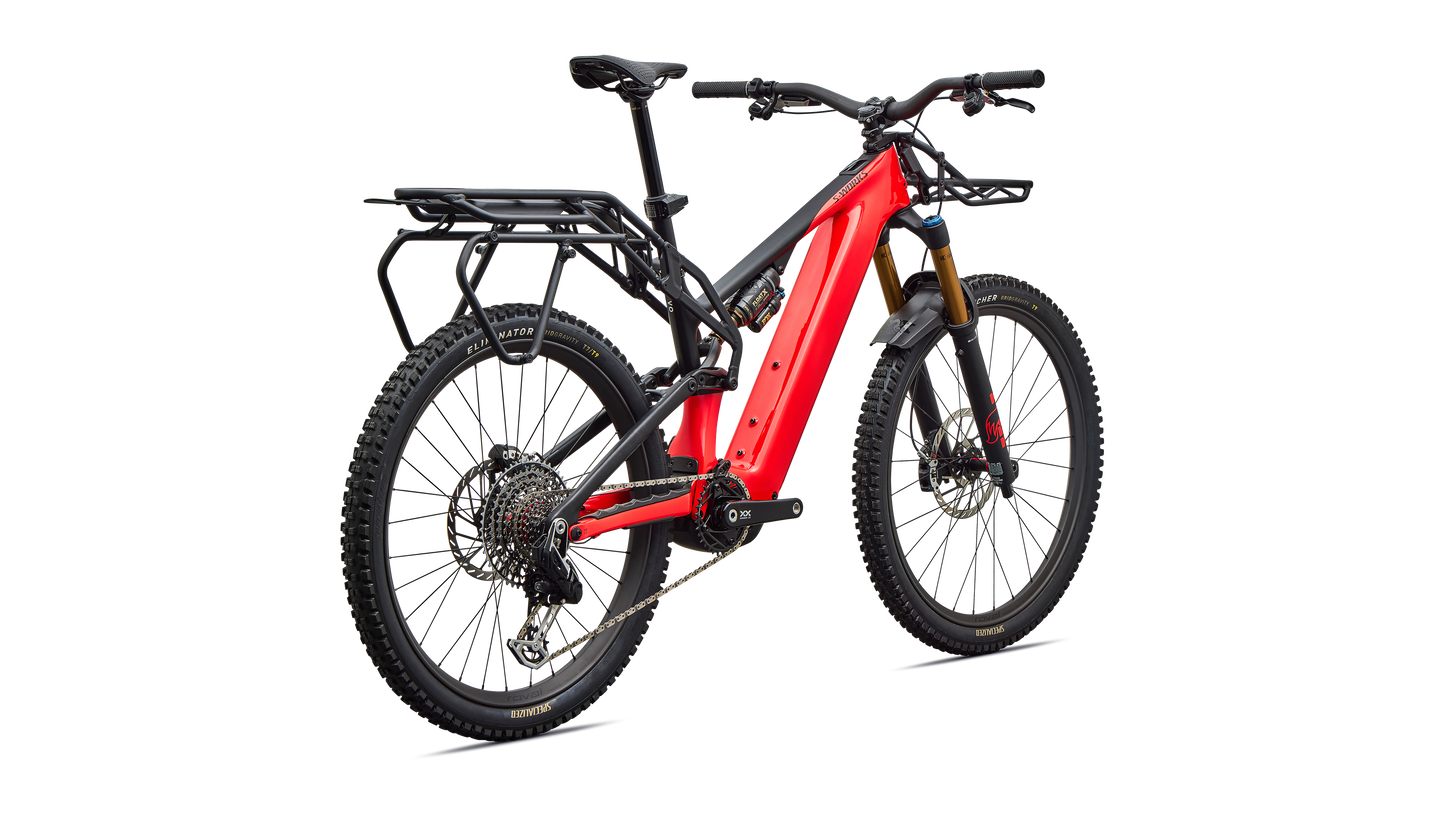

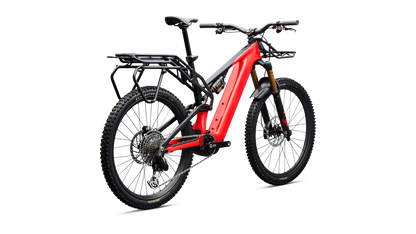

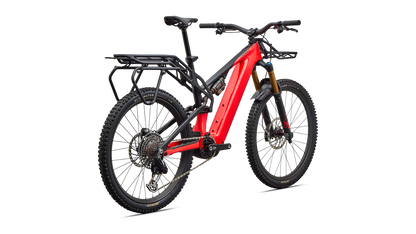

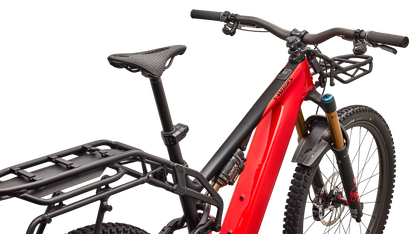

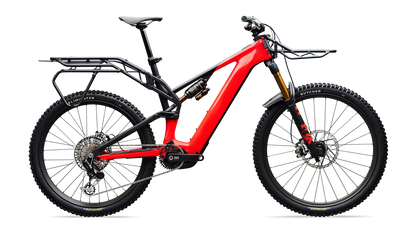

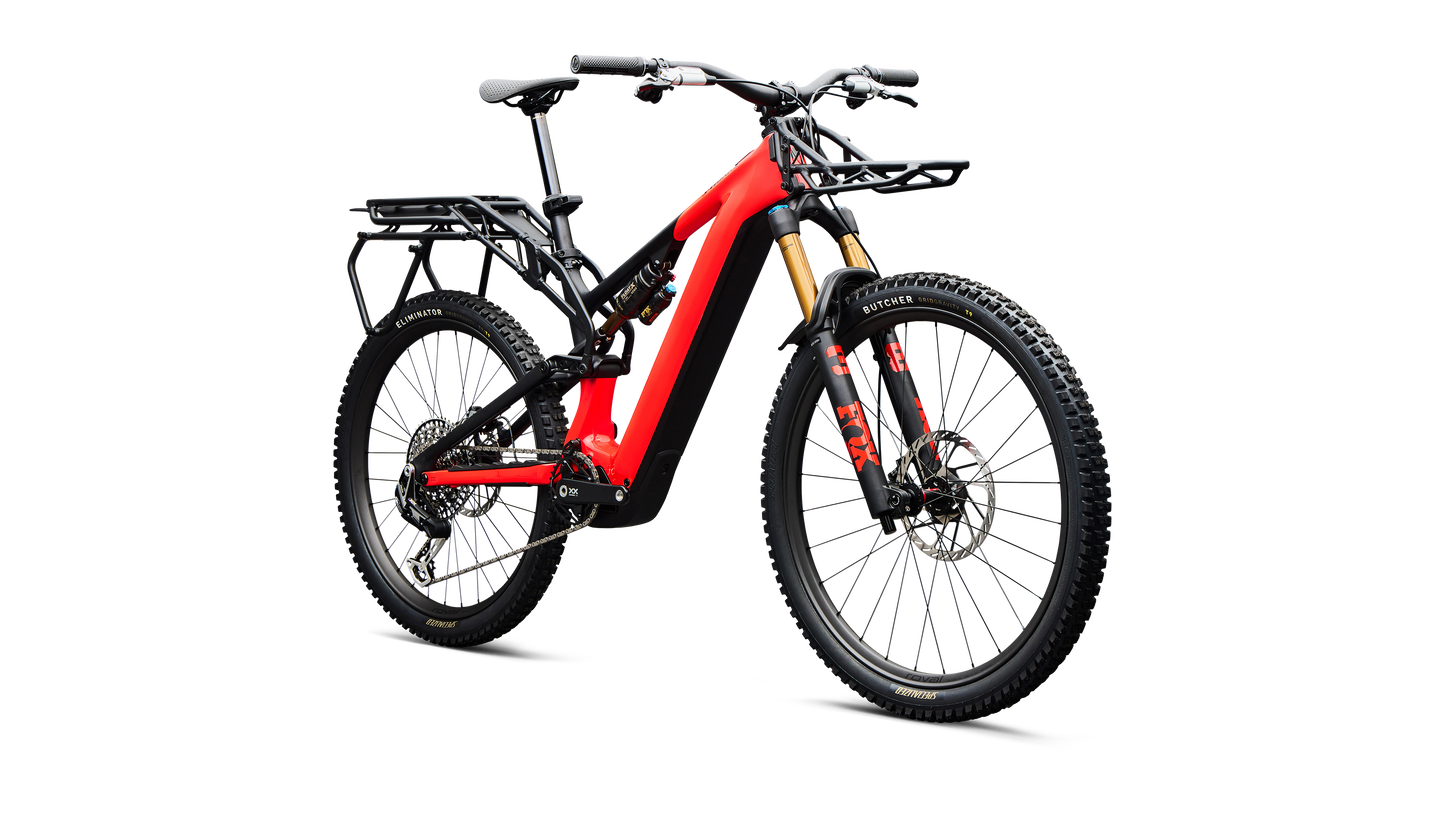

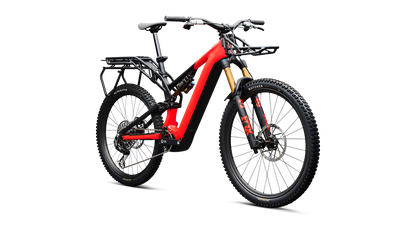

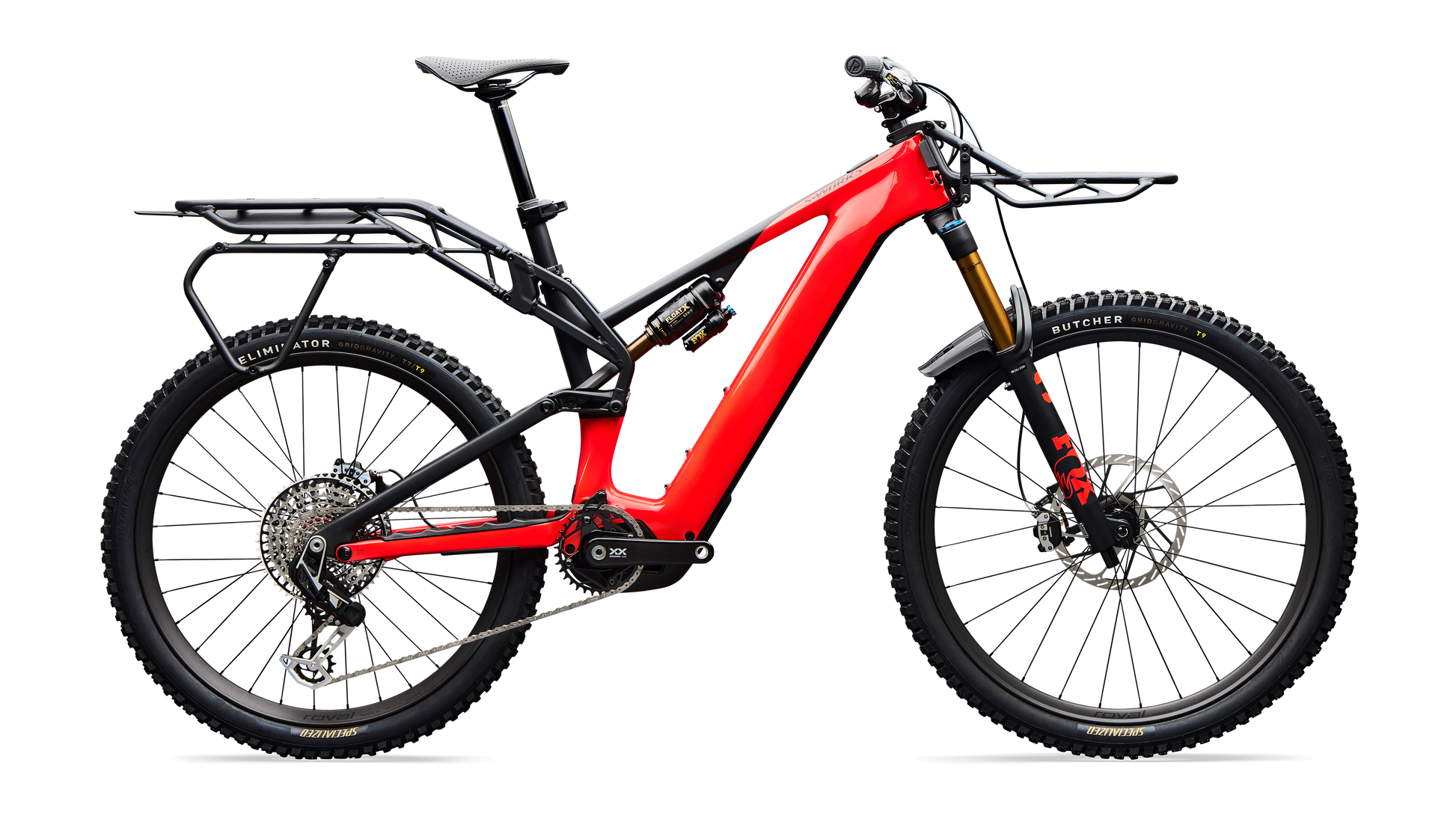

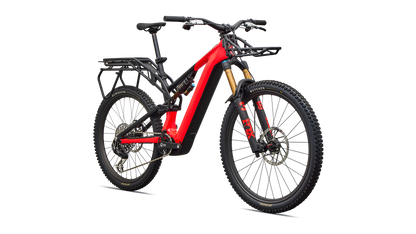

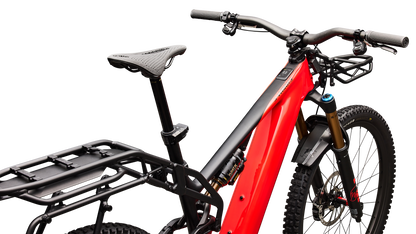

S-Works Turbo Levo 4 X

S-Works Turbo Levo 4 X

95226-0803

$24,900.00
$0.00 $24,900.00
Sale Contact Us for Availability
Tax included. Shipping calculated at checkout.
Colour
Size
View Size Guide

Find in-store

Loading locations...

Product enquiry

Thank you for submitting your form!

We appreciate your interest and will review your information as soon as possible.

Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.

View full details

Product Details

Levo 4 X is more than a new bike. It’s the birth of Electric Overland. Built on the award-winning SuperNatural power, control, and range of Levo 4, it adds high-performance carrying capacity so you can rip singletrack, cross town, cross continents, and turn every ride into an adventure. It’s your full-bore, ride-anywhere freedom machine. Use - Electric Overland

E-System - S-Works 3.1 Motor w/ 850 Watts & 111 Nm, 840 Wh battery, up to 4.40 hour range

Frame - FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension - Front: 160mm FOX 38 FACTORY GRIP X2
Rear: 150mm GENIE

FOX FLOAT X Factory

Drivetrain - SRAM XX Eagle T-Type AXS

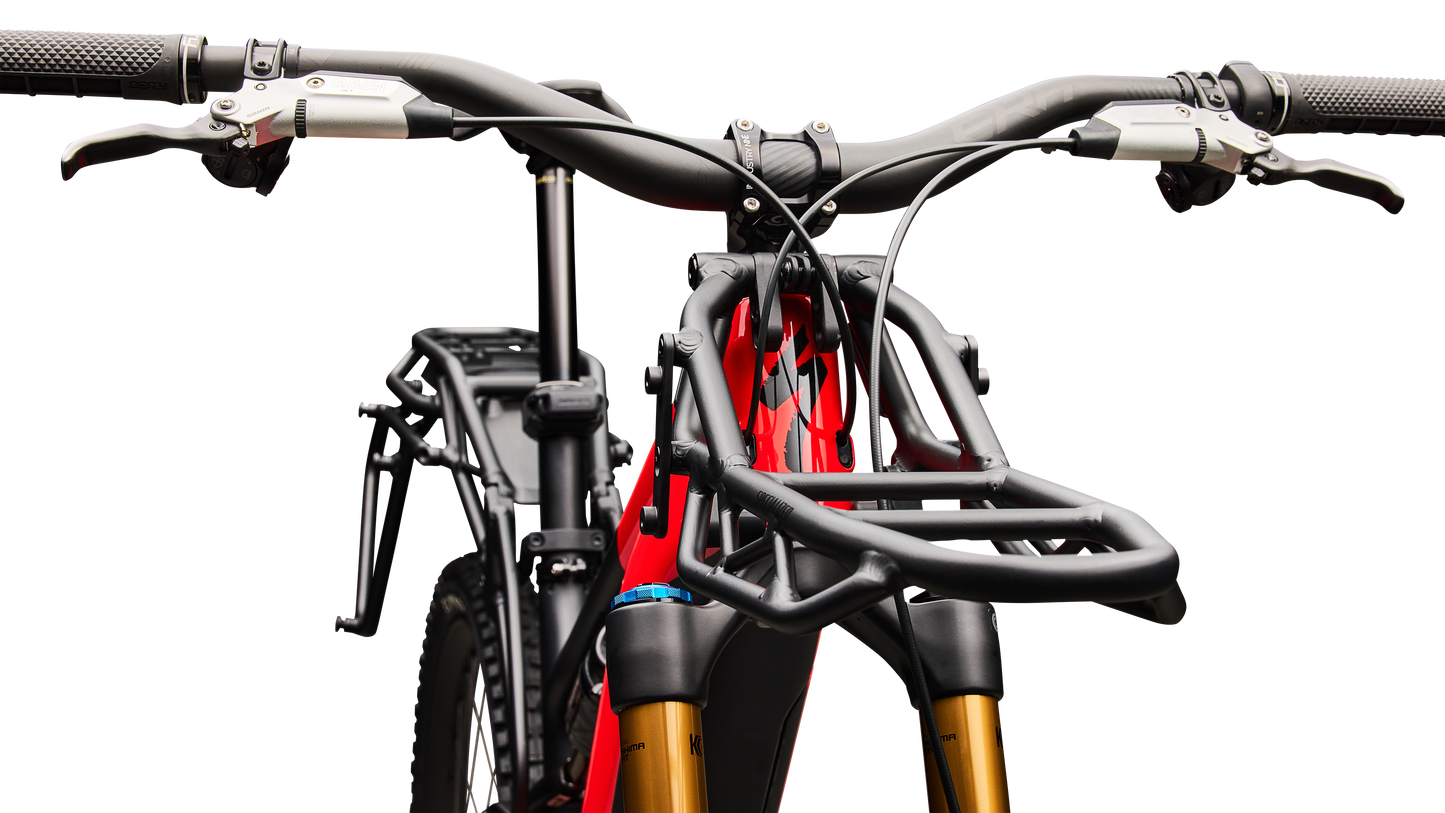

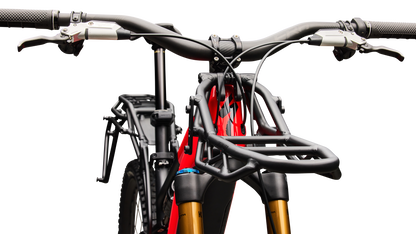

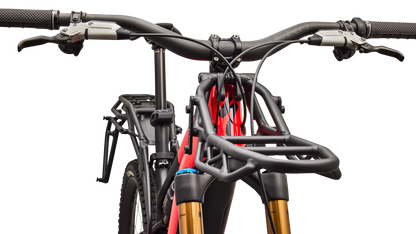

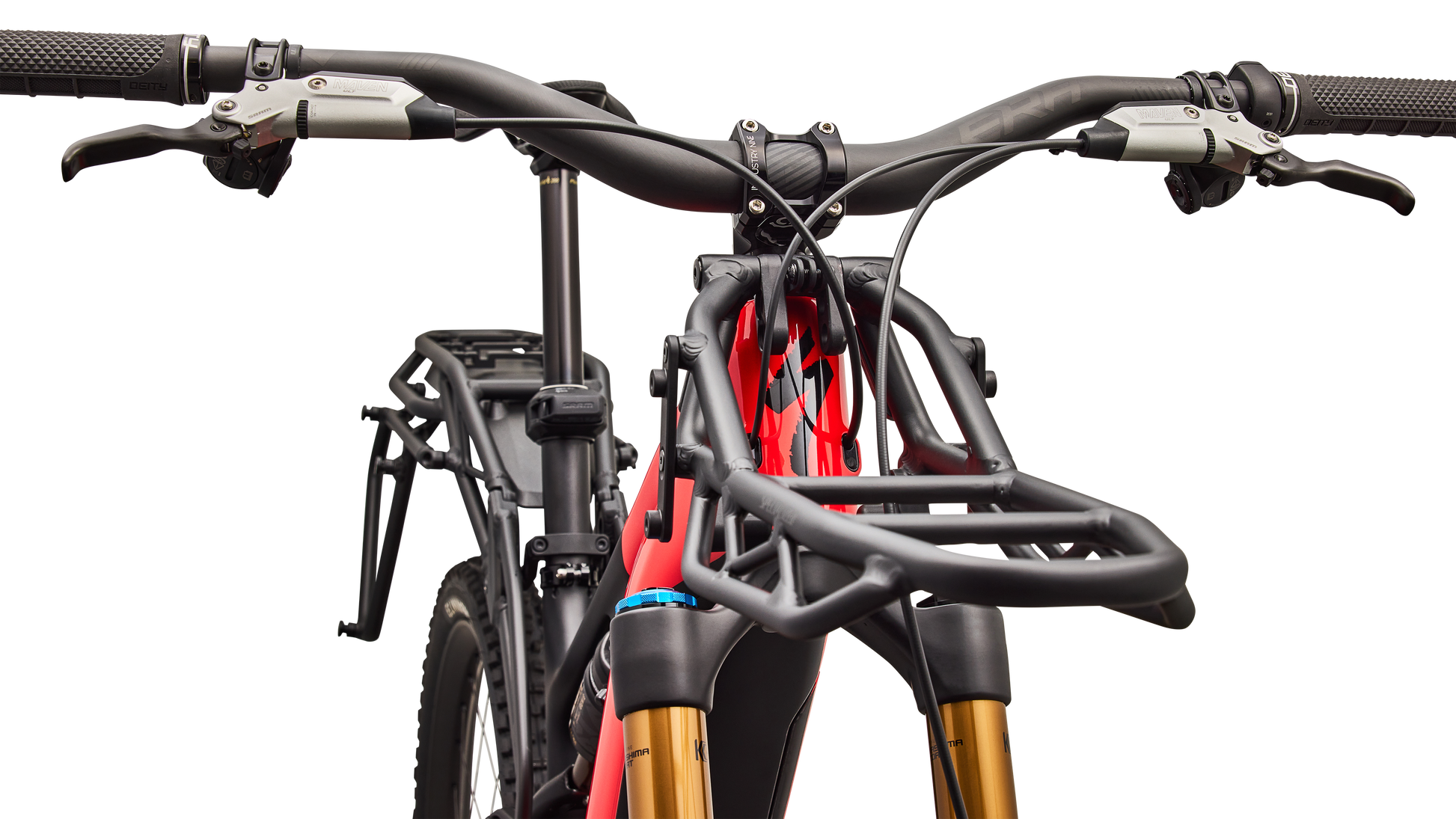

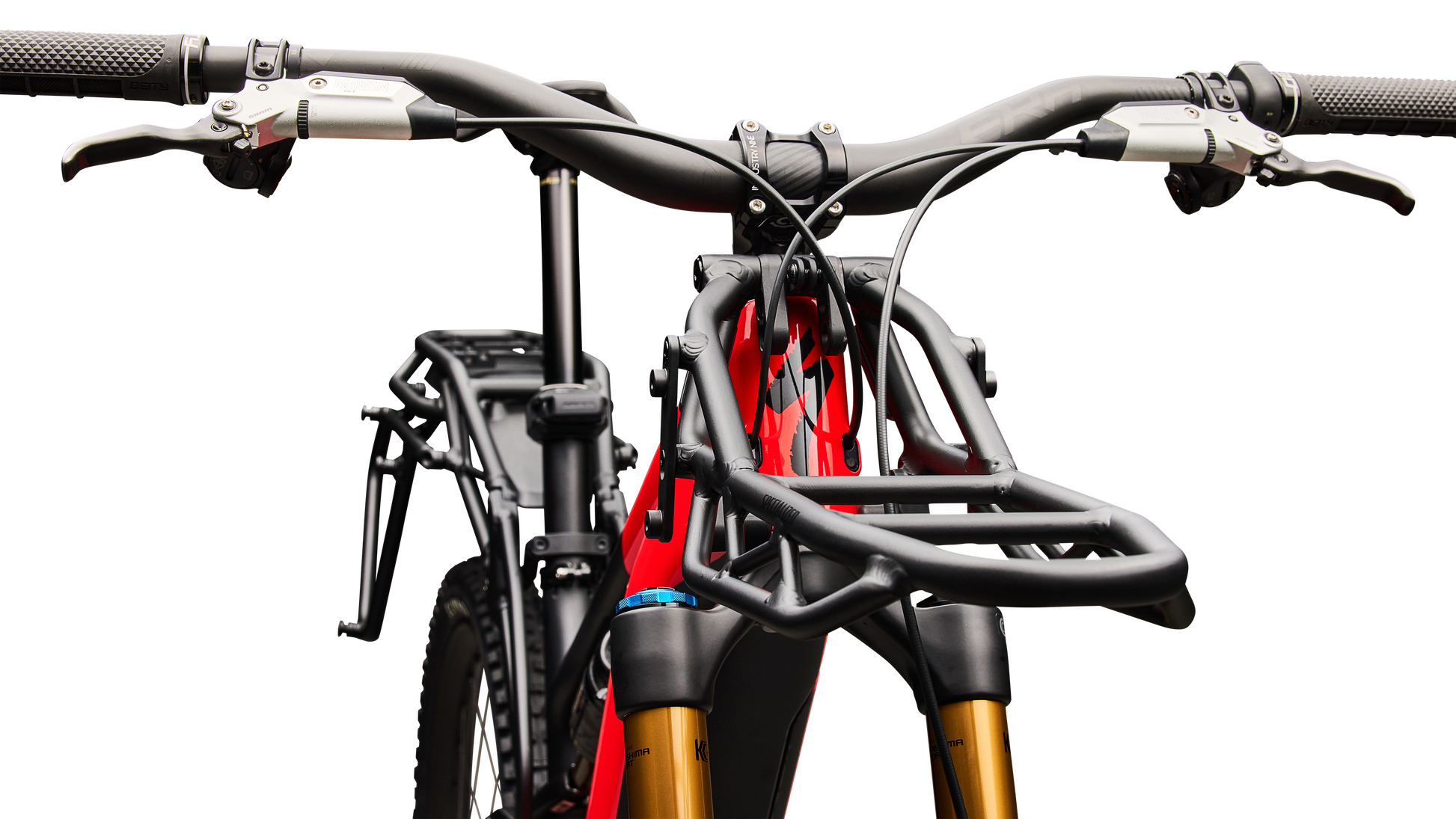

Carrying Capacity - Front and Rear High-Performance Racks







Technical Specifications

Frameset

Frame

Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Seat Binder

Alloy, 38.6mm

SWAT

SWAT Internal downtube storage

Suspension

Fork

FOX Factory 38, GRIP X2 damper, high/low speed compression adjust, high/low speed rebound adjust, 15x110mm axle, 44mm offset, 160mm travel

Rear Shock

Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm

Cockpit

Seat Post

RockShox Reverb AXS, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm

Saddle

Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm

Stem

Industry 9 A35 Mountain stem, 35mm clamp, 40mm length

Grips

Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Handlebars

RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise

Brakes

Front Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake

SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain

Shift Levers

SRAM AXS Pod Ultimate with Discrete Clamp

Rear Derailleur

SRAM XX Eagle Transmission Derailleur

Cassette

SRAM XX Transmission, XS 1297, 10-52t

Crankset

SRAM XX Carbon crank, 160mm, ISIS interface

Chain

SRAM XX, T-Type

Chain Ring

SRAM 34t T-Type chainring, 104 BCD, steel

E-Bike

Battery

840Wh battery

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Motor

Specialized 3.1 S-Works motor, 111Nm power, 850W power

UI Remote

Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Wheels & Tyres

Front Wheel

Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 15 x 110mm, 28h

Rear Wheel

Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12 x 148mm, 32h

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Butcher, GRID Gravity, T9, TLR, 29x2.4"

Rear Tire

Eliminator, GRID Gravity casing, Gripton T7/T9 compound, 27.5X2.4

Tubes

Standard, Presta Valve
