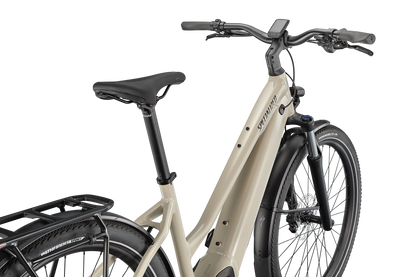

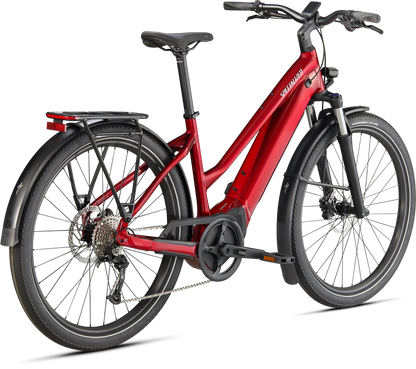

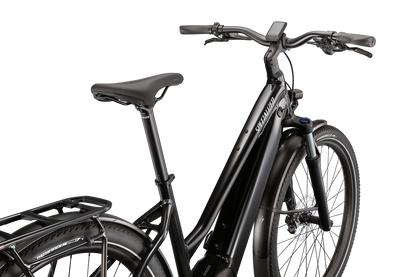

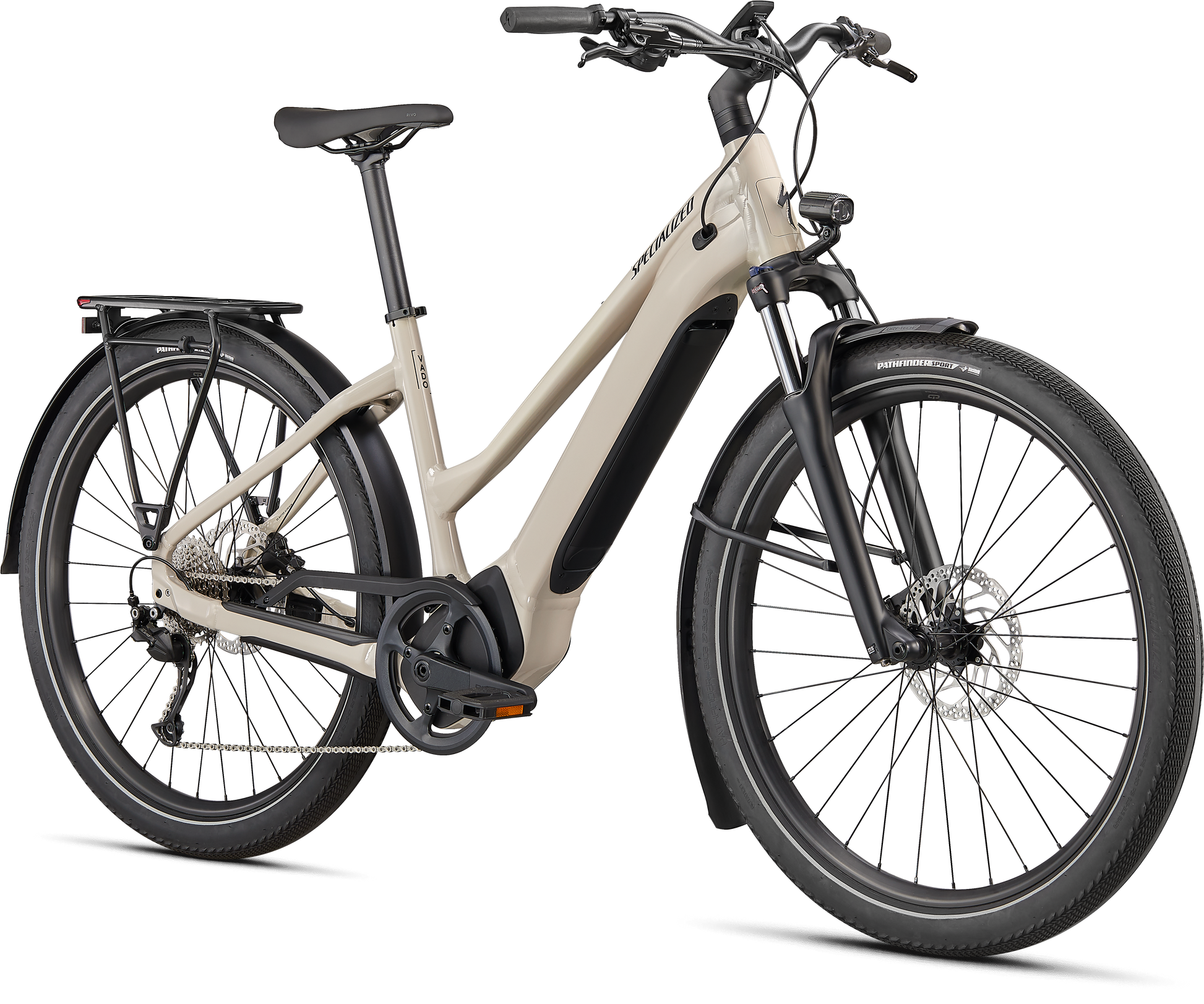

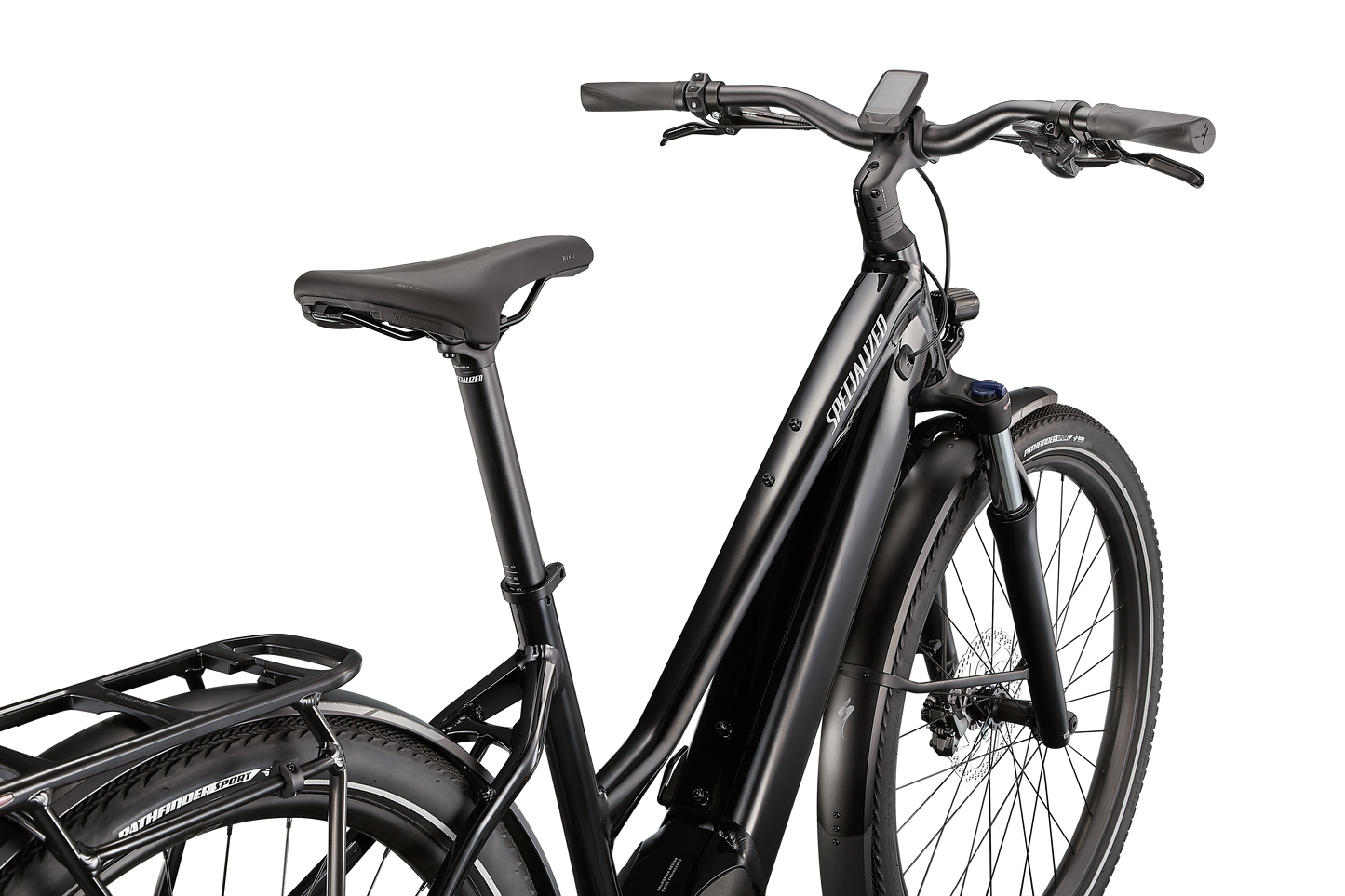

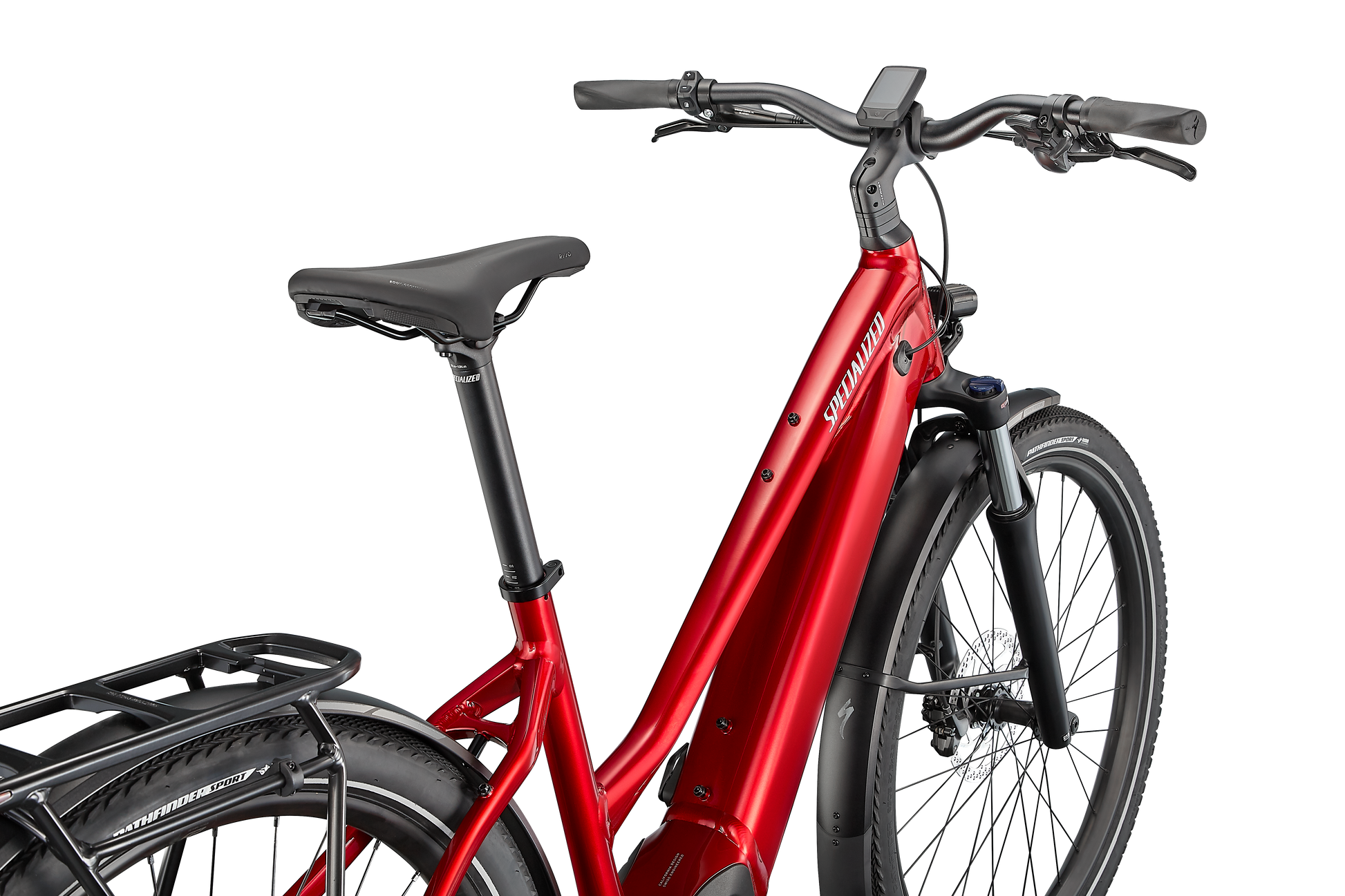

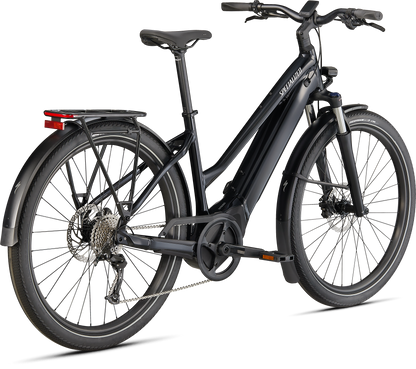

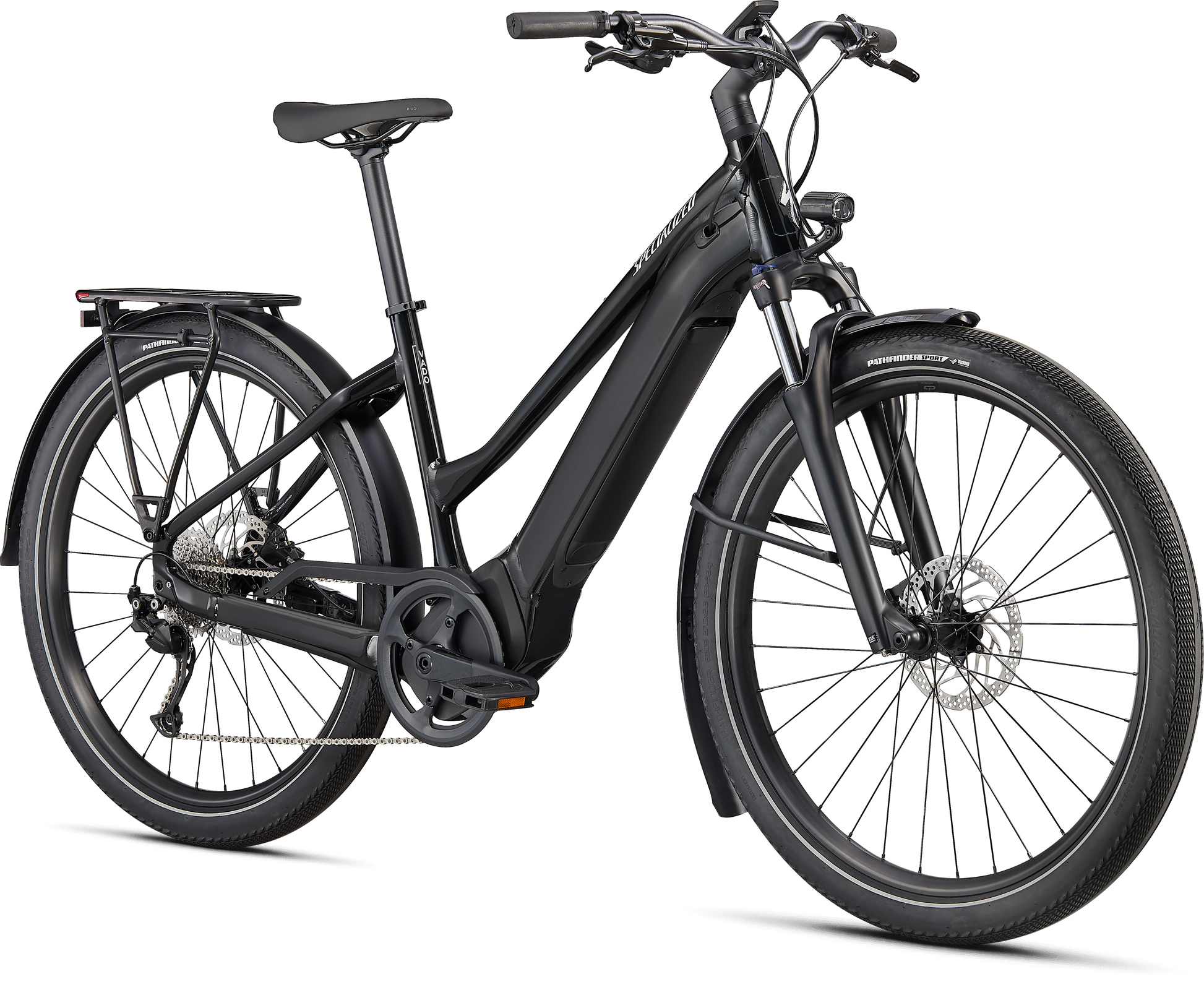

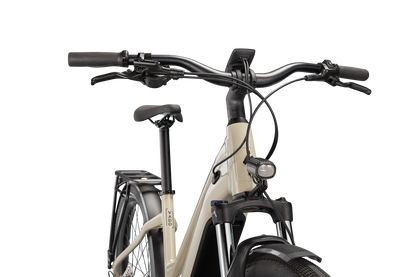

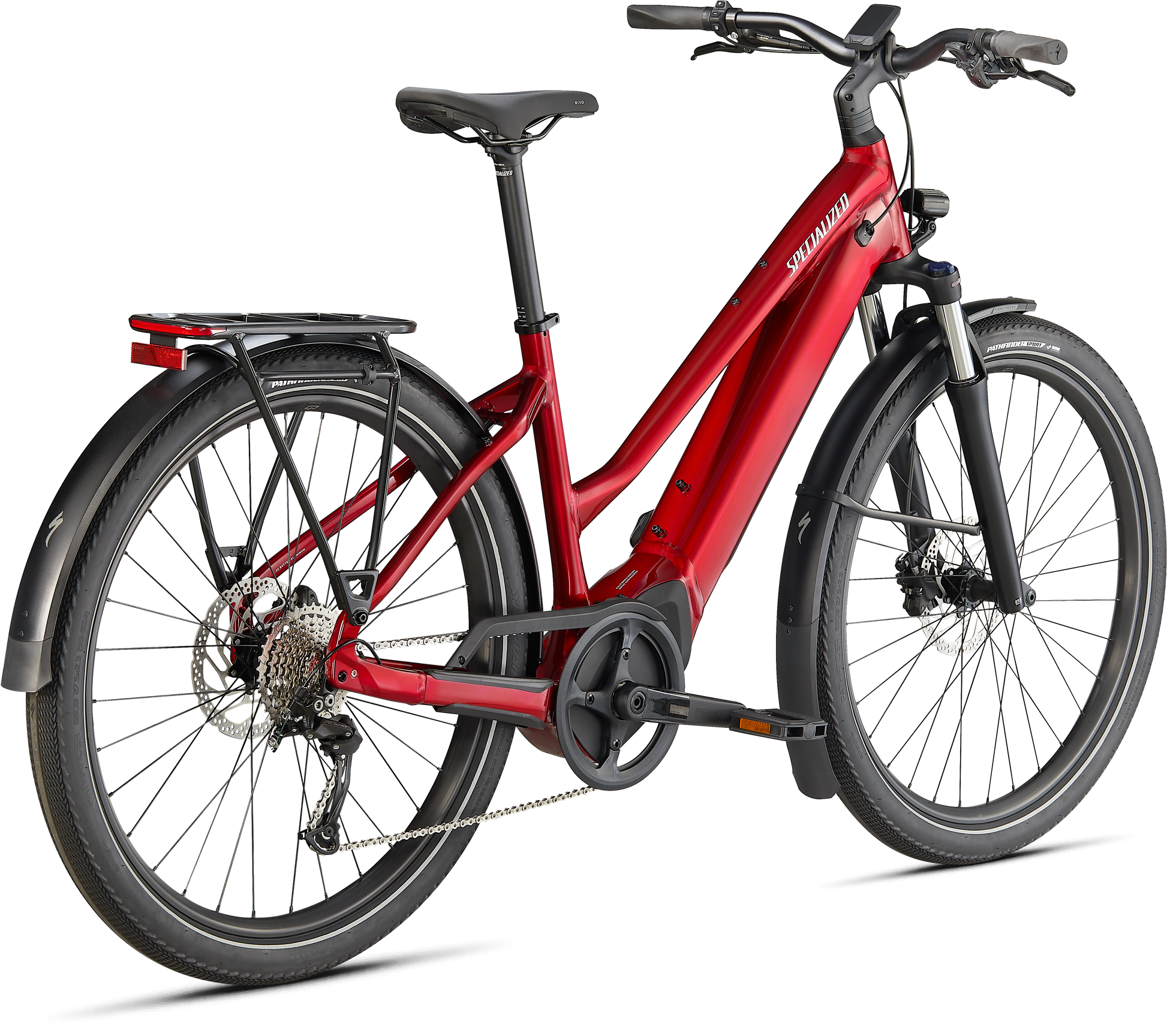

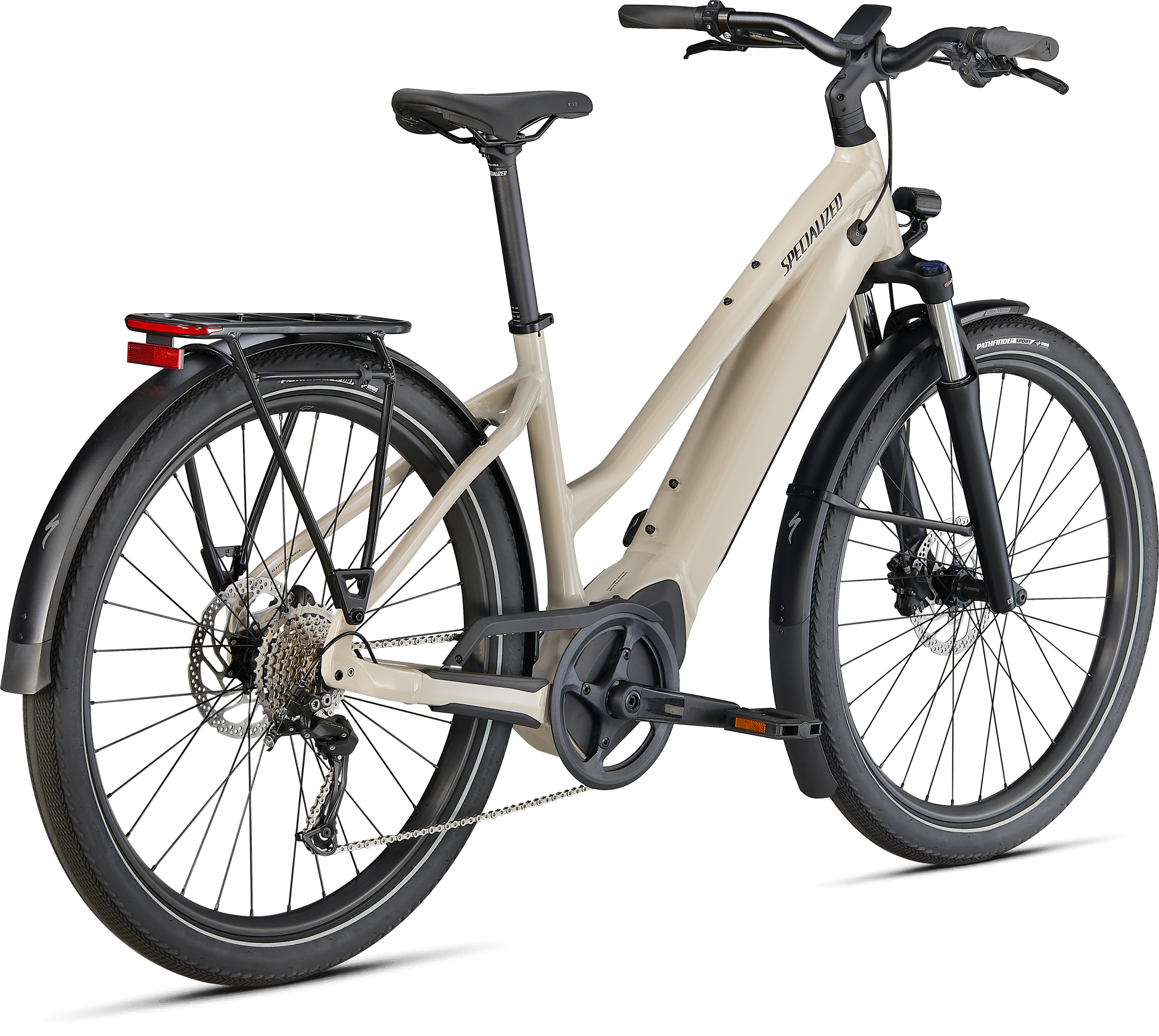

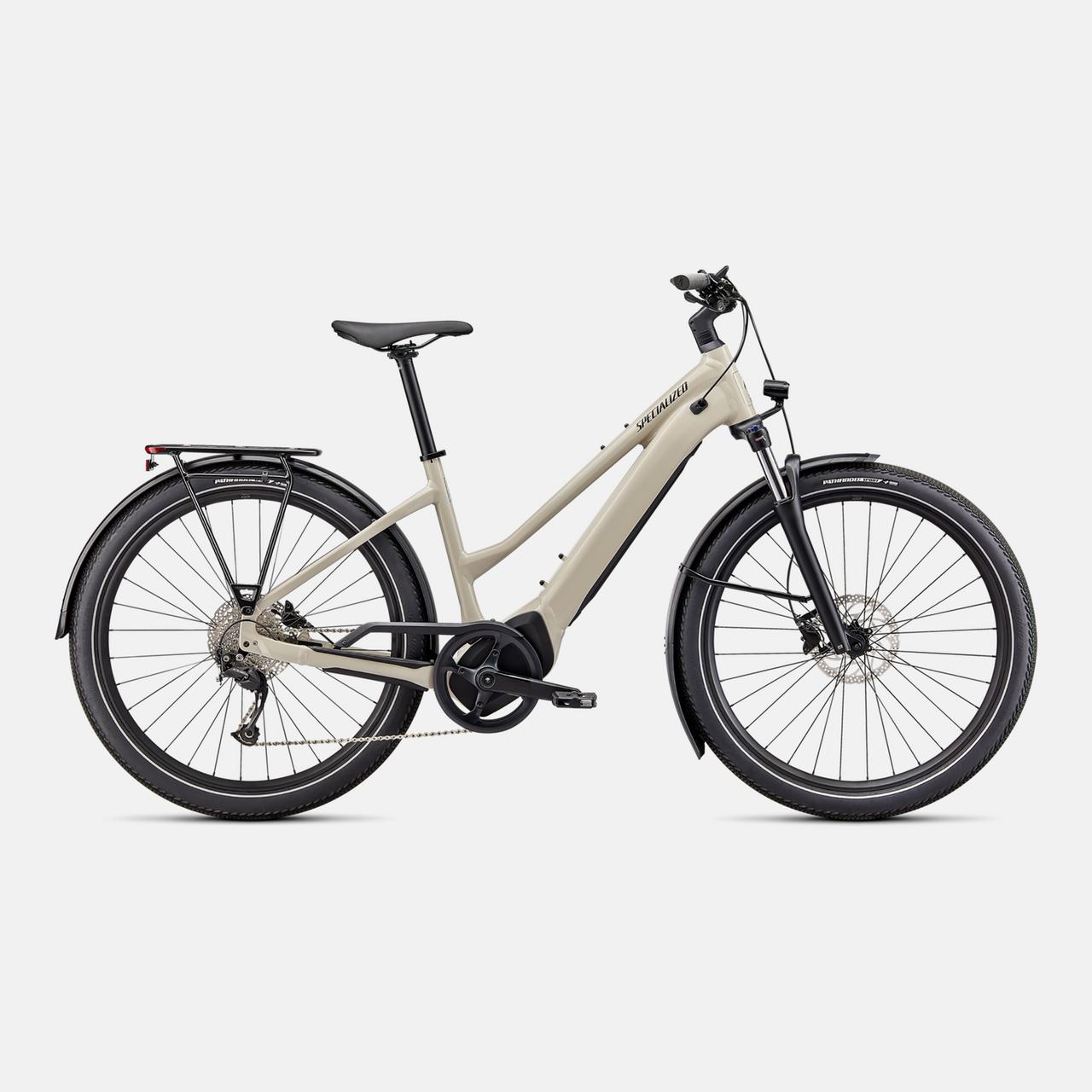

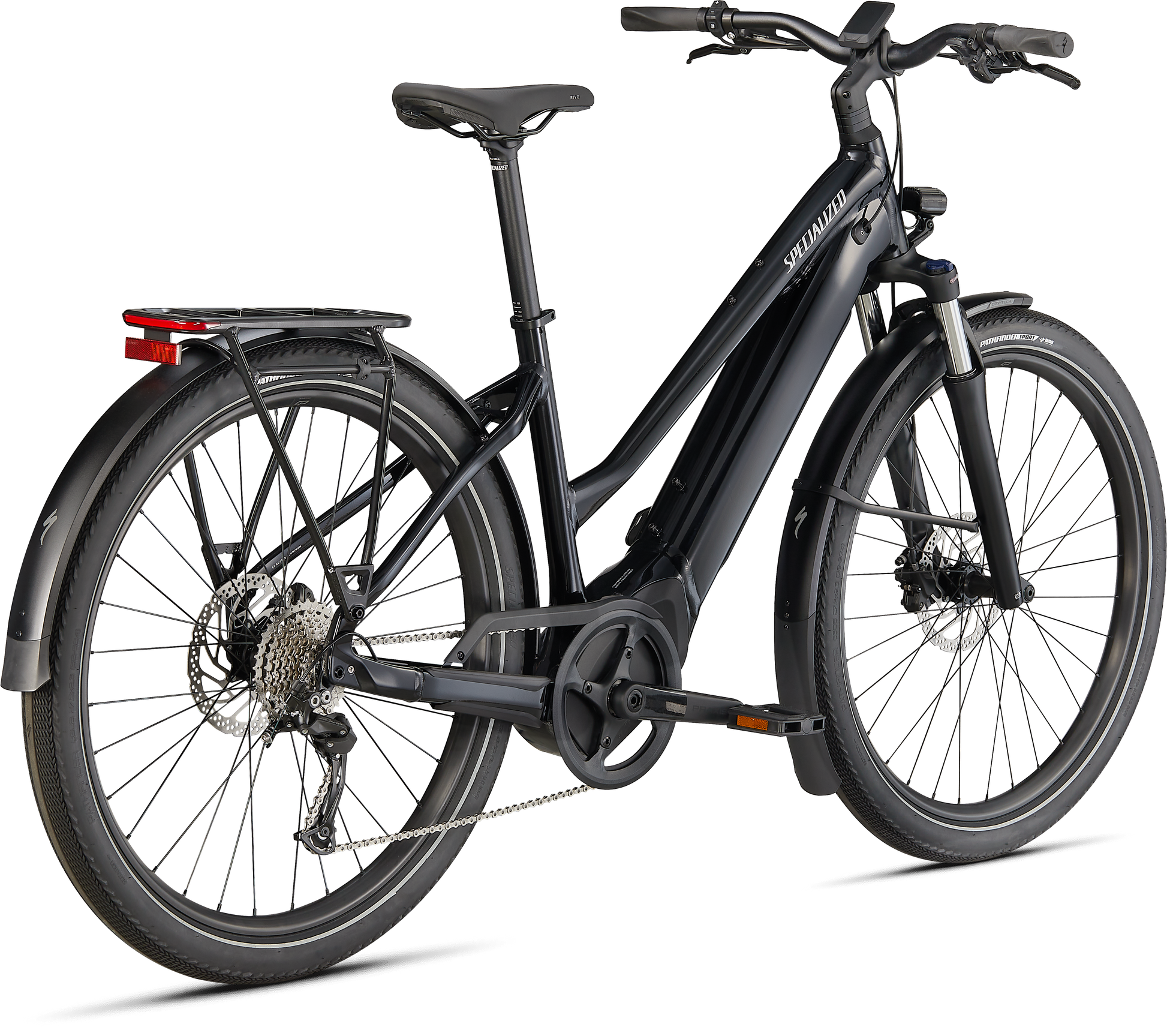

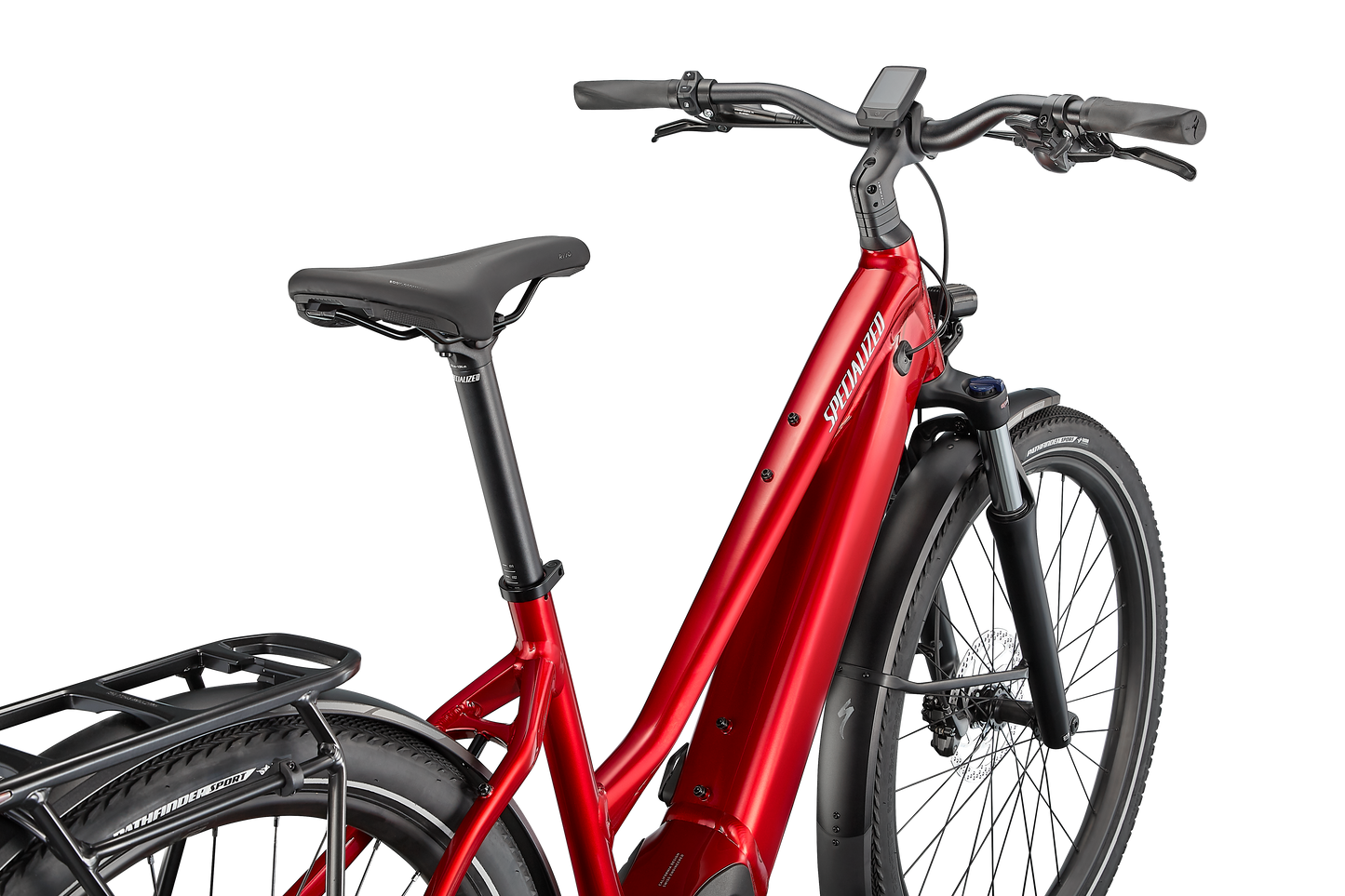

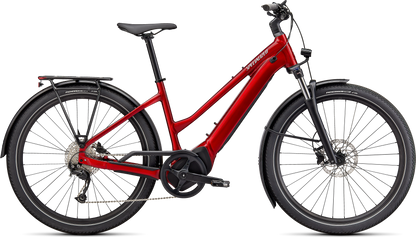

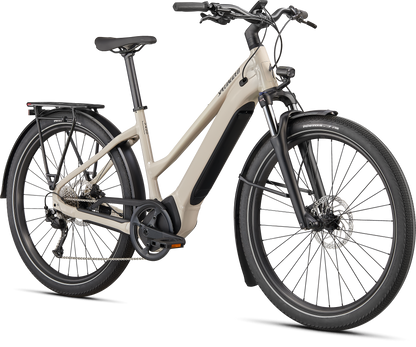

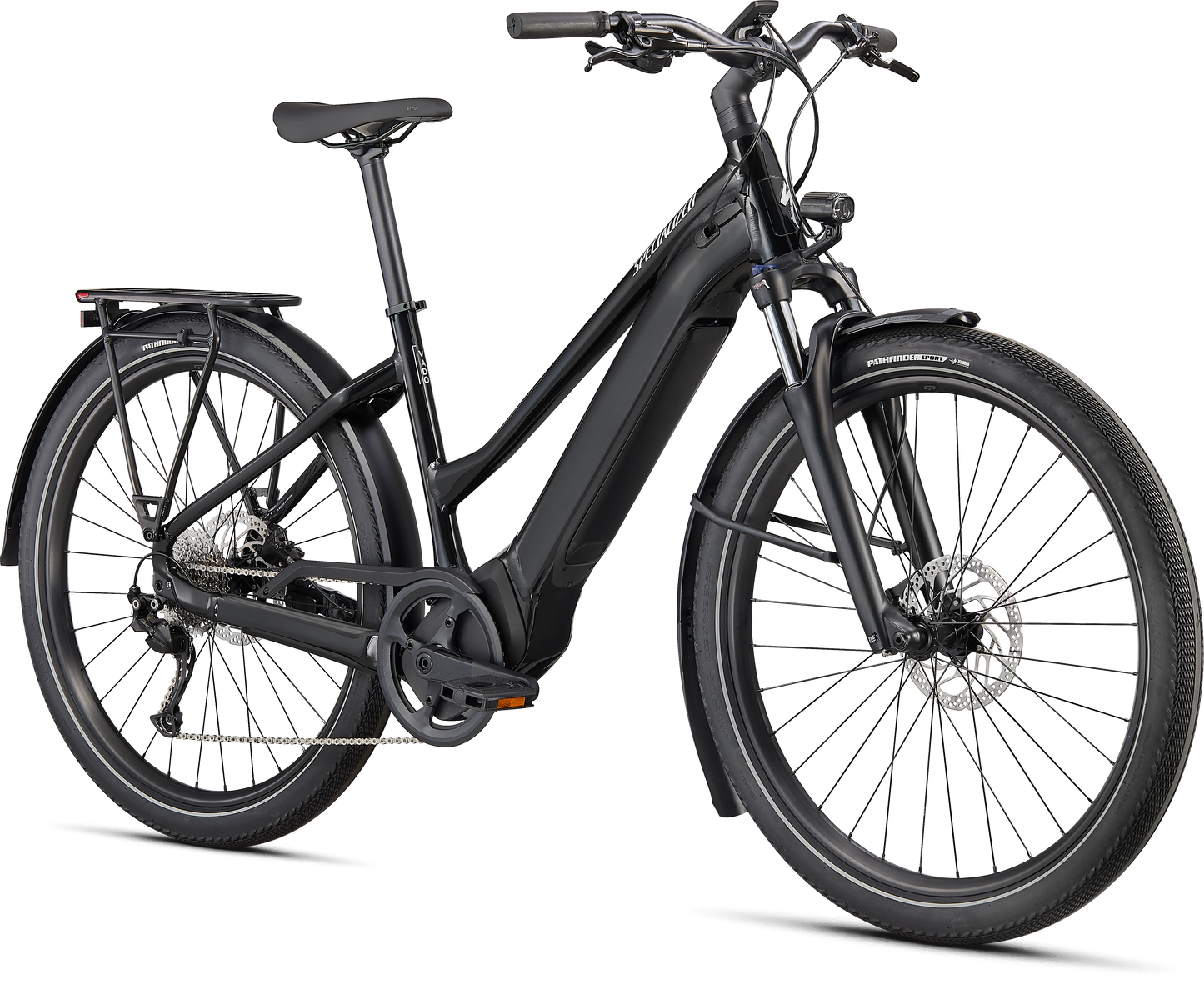

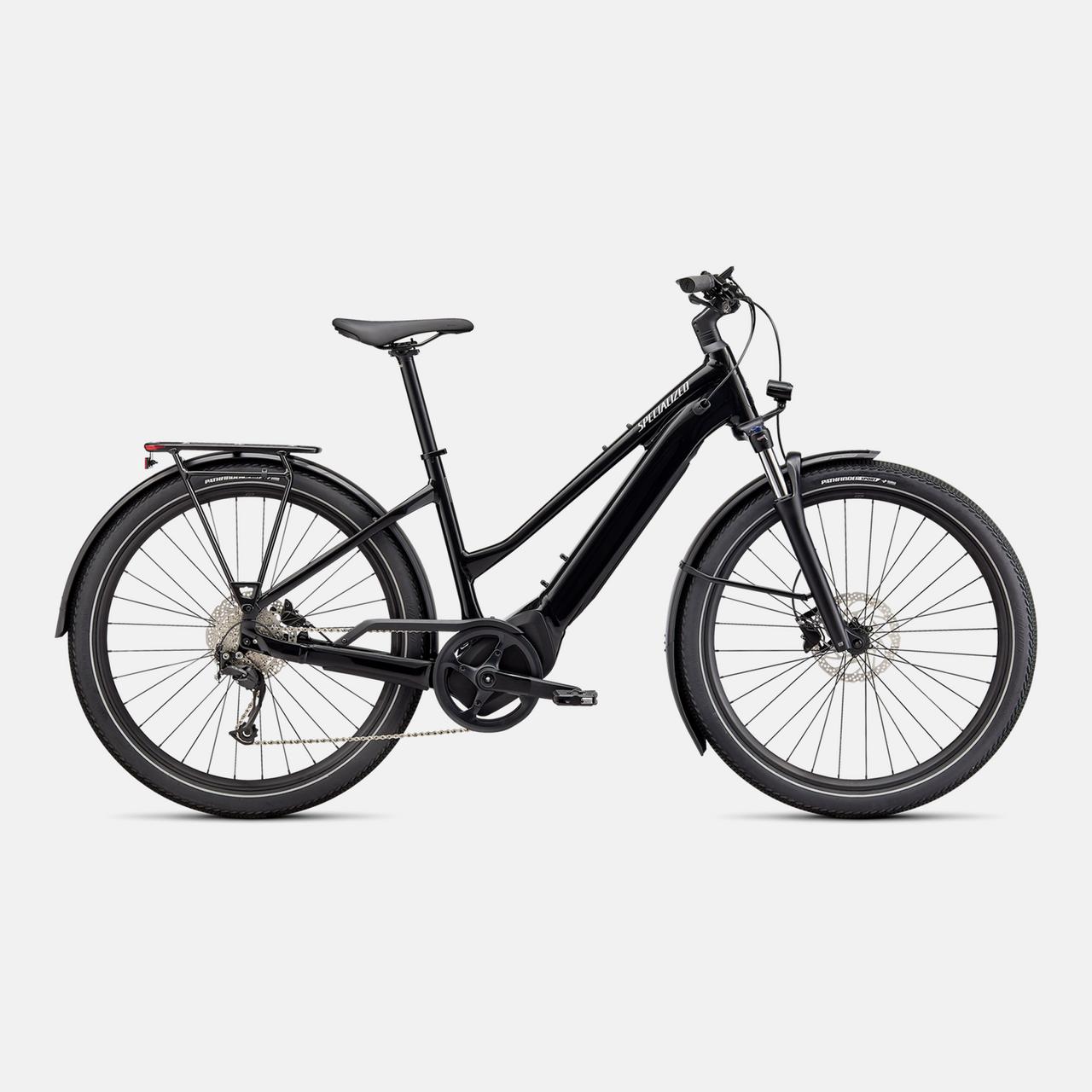

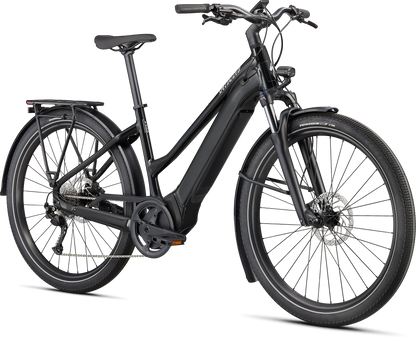

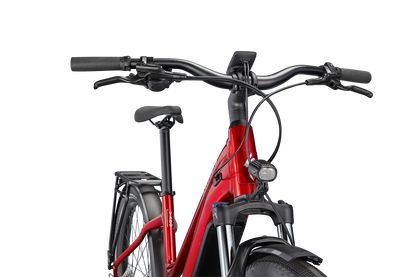

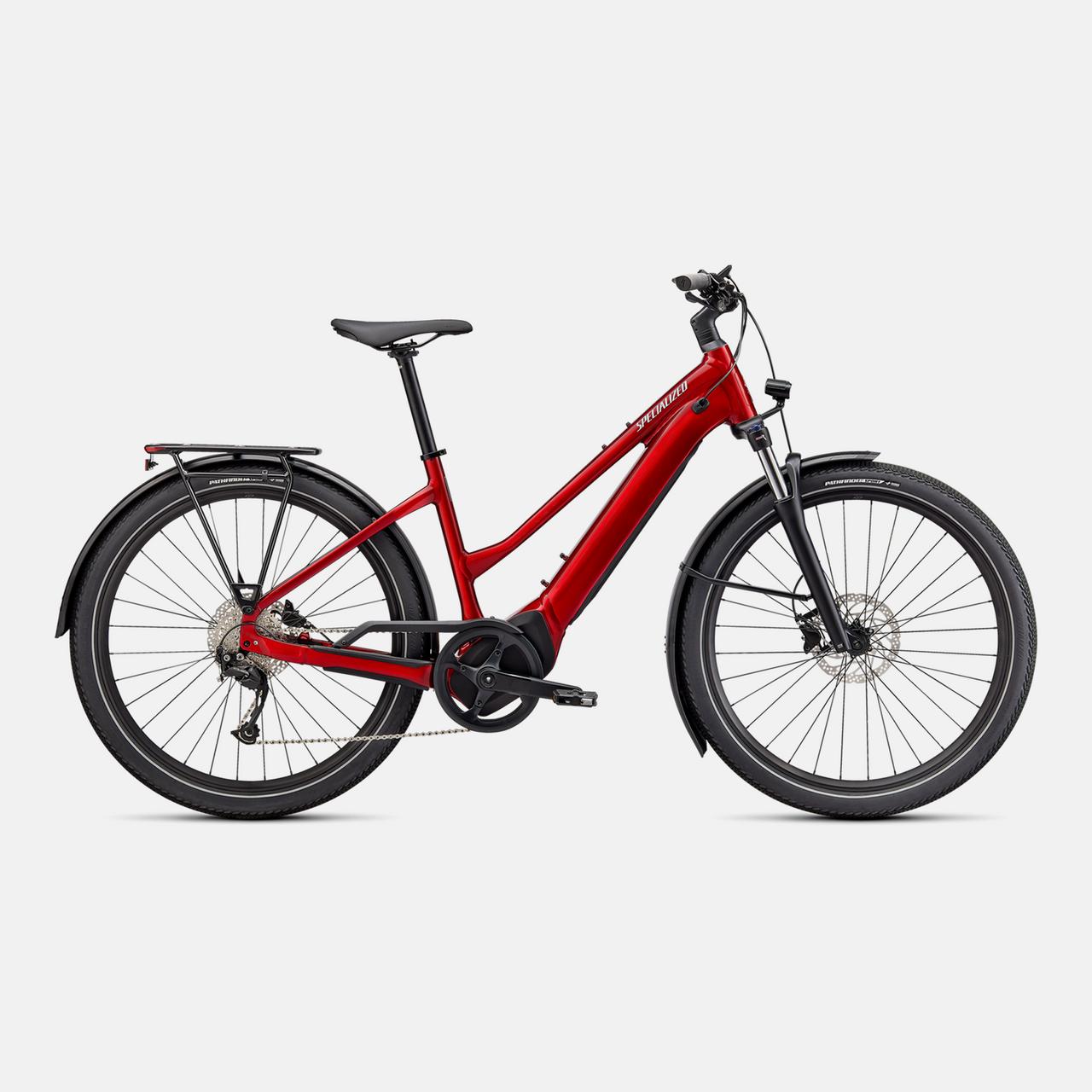

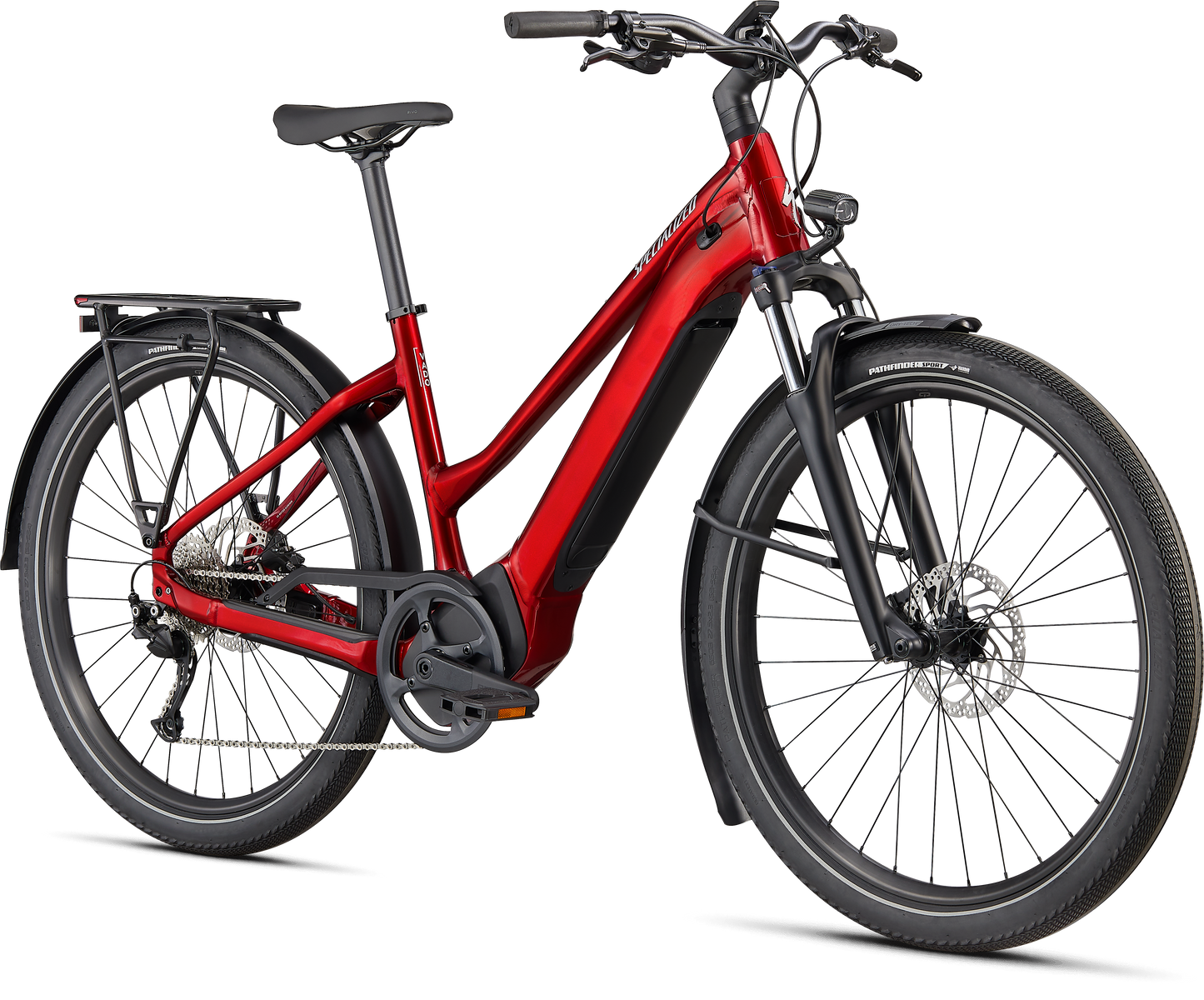

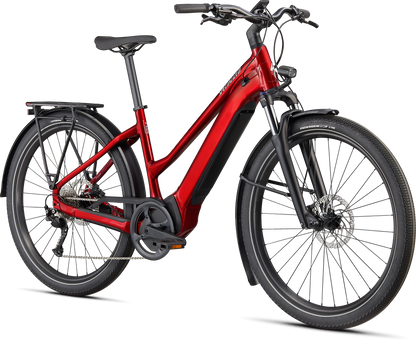

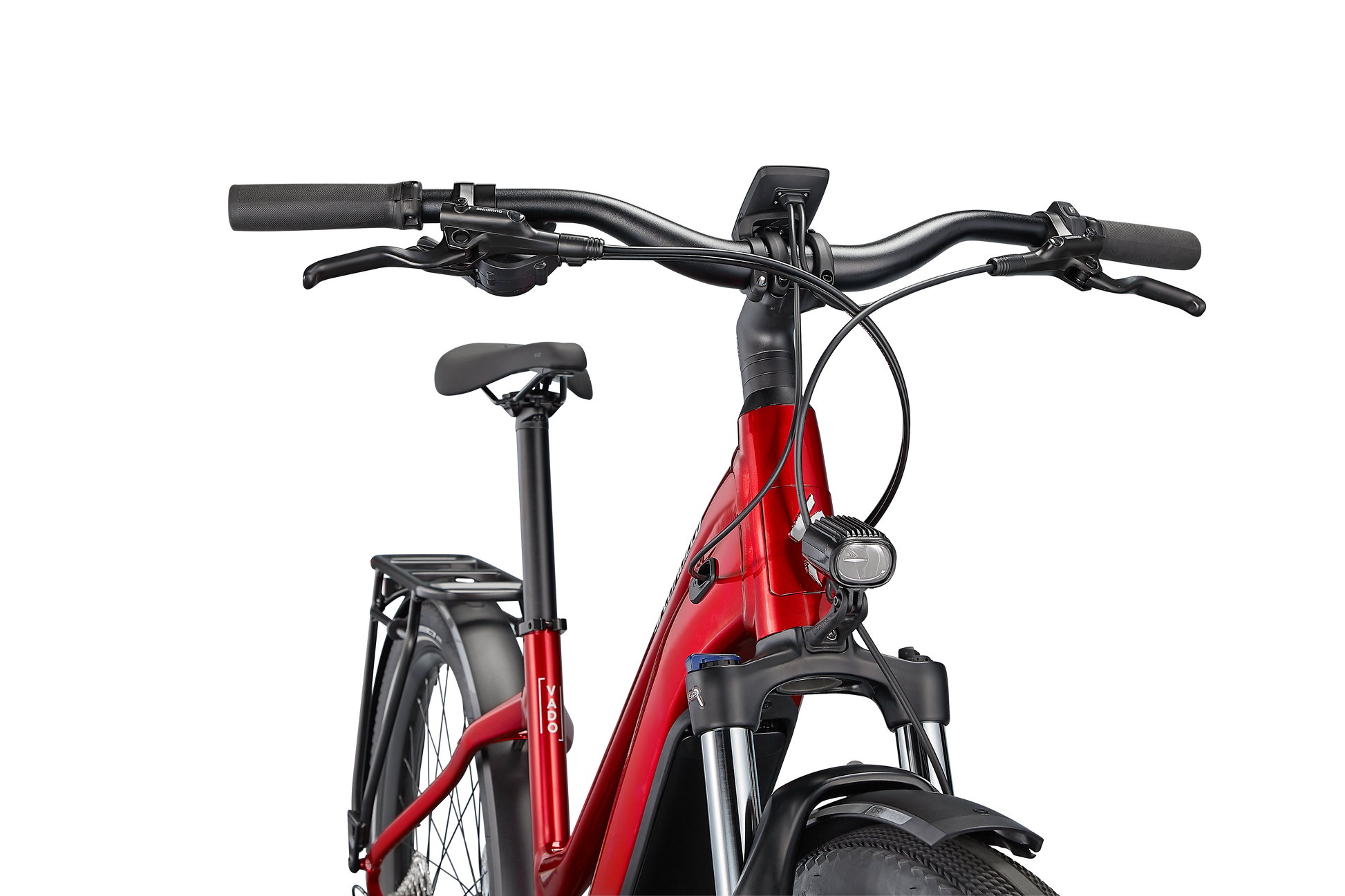

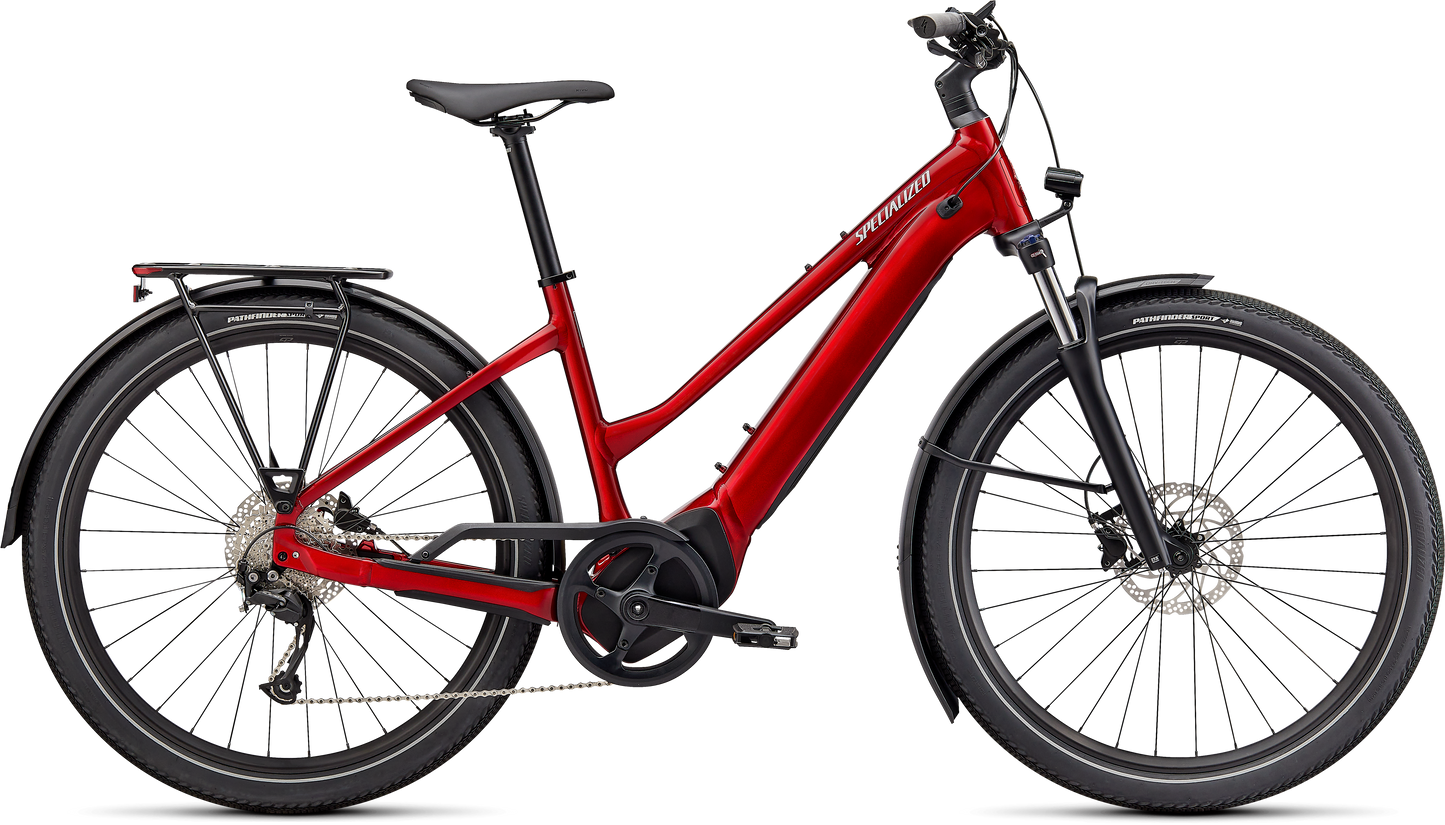

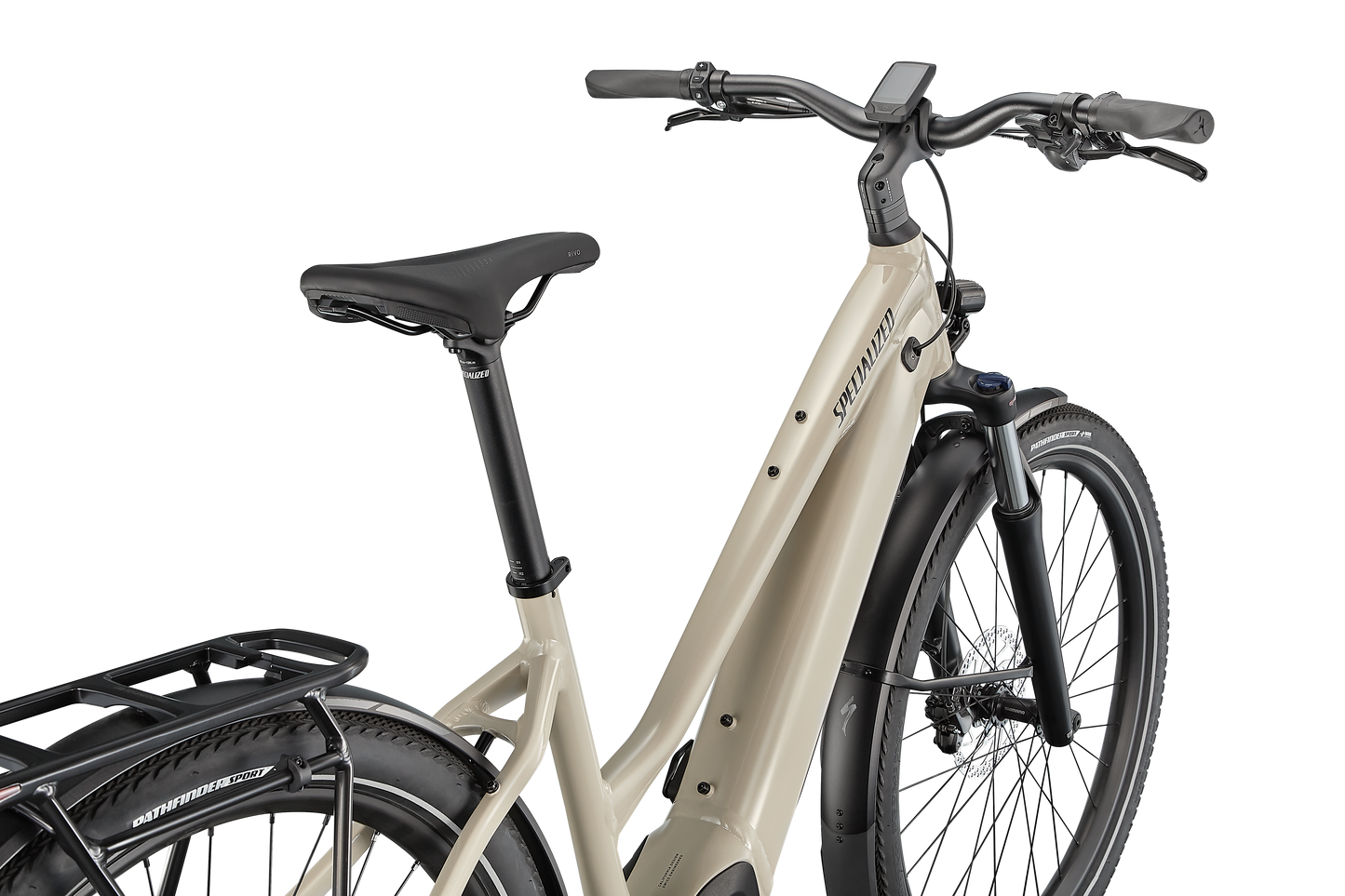

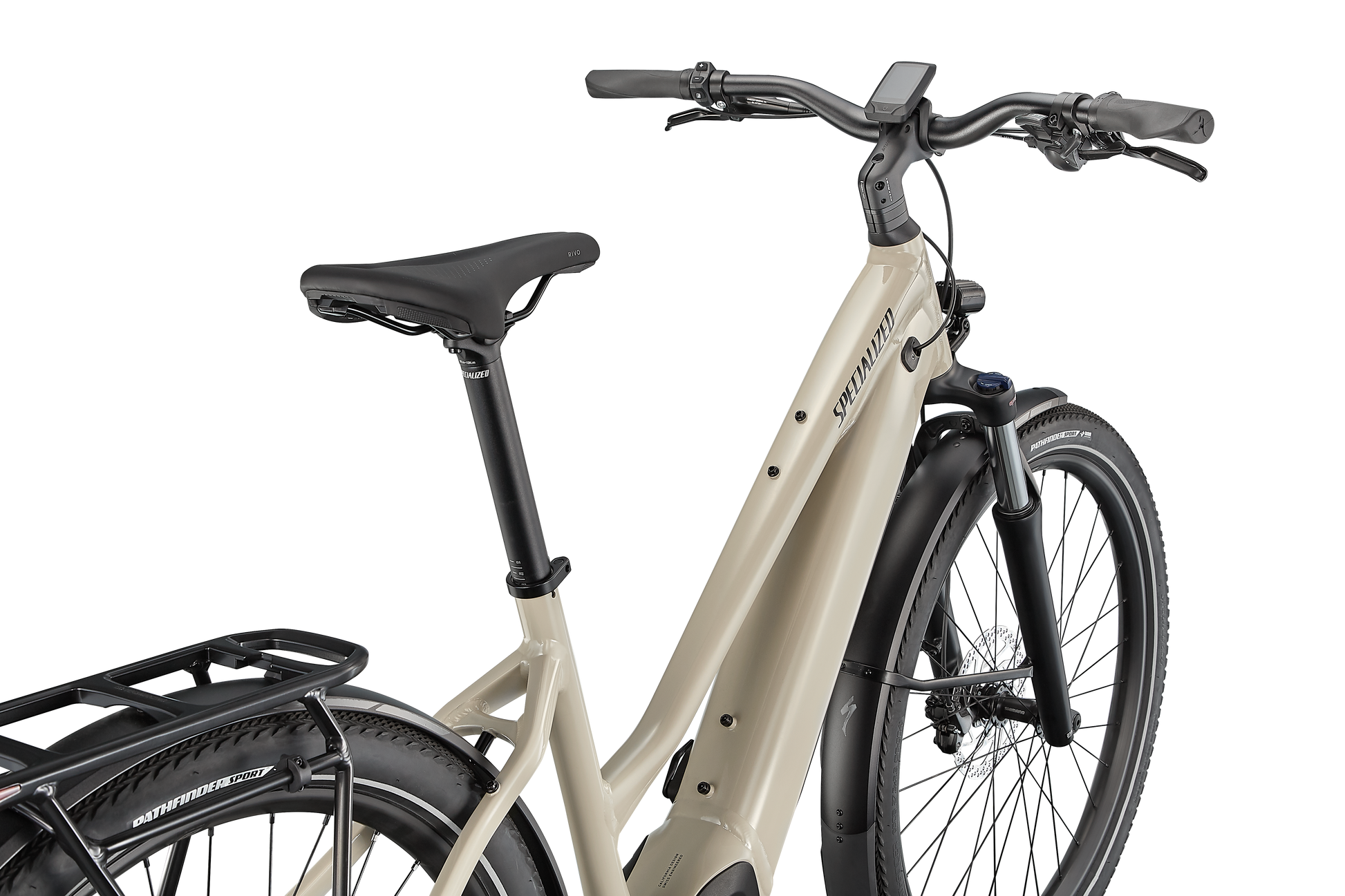

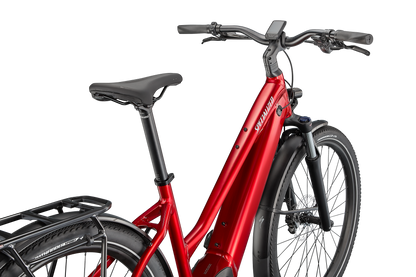

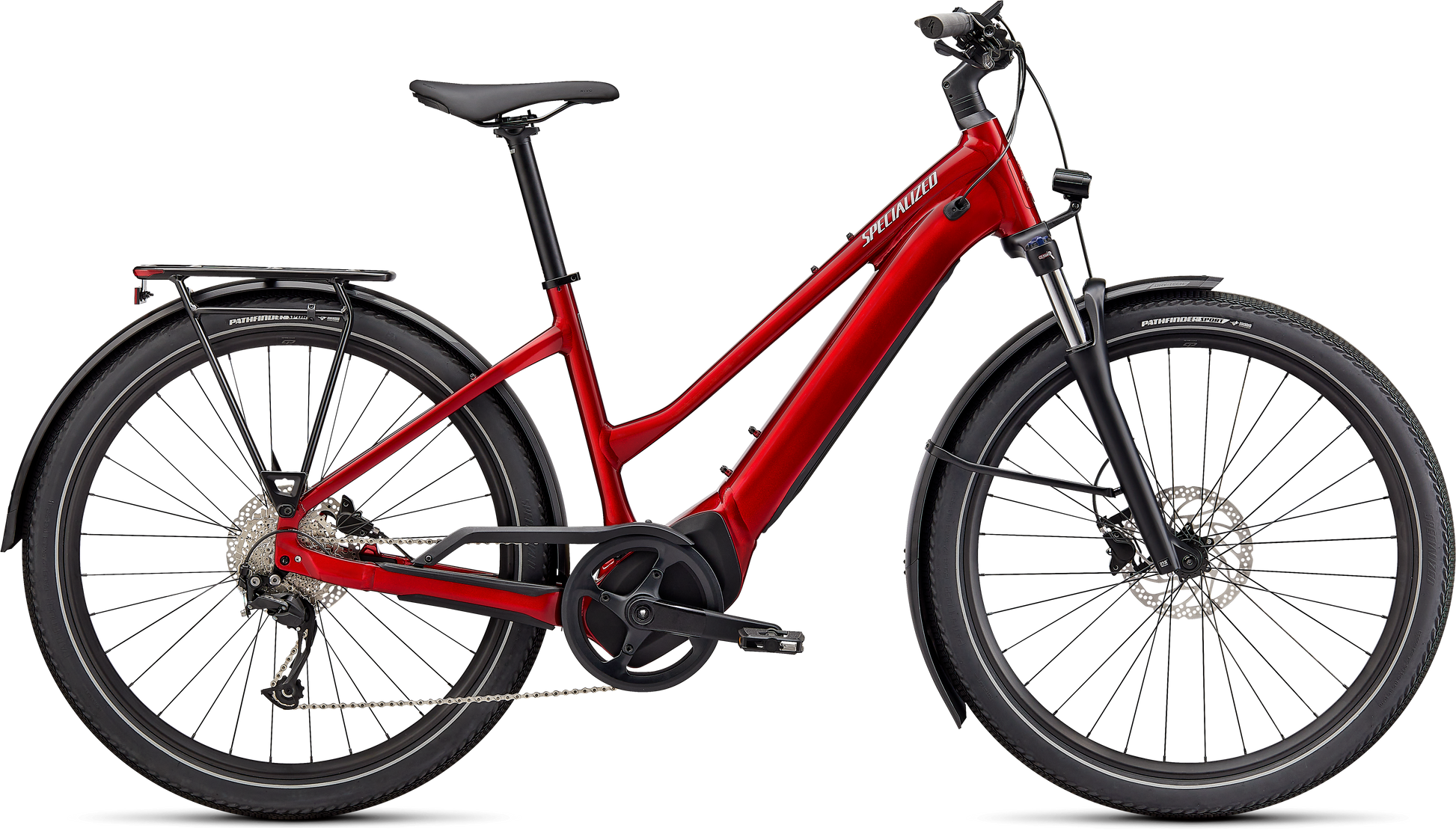

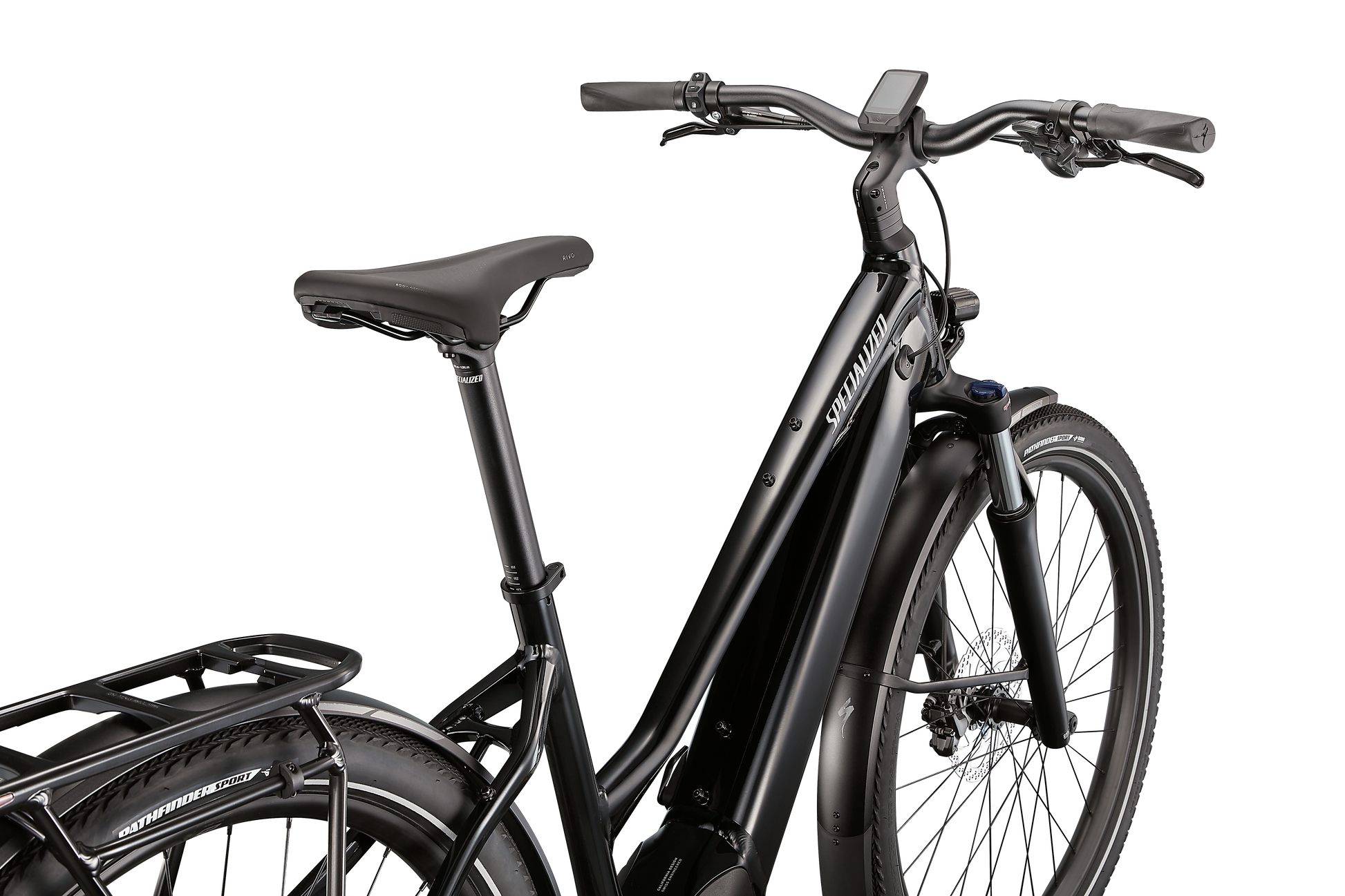

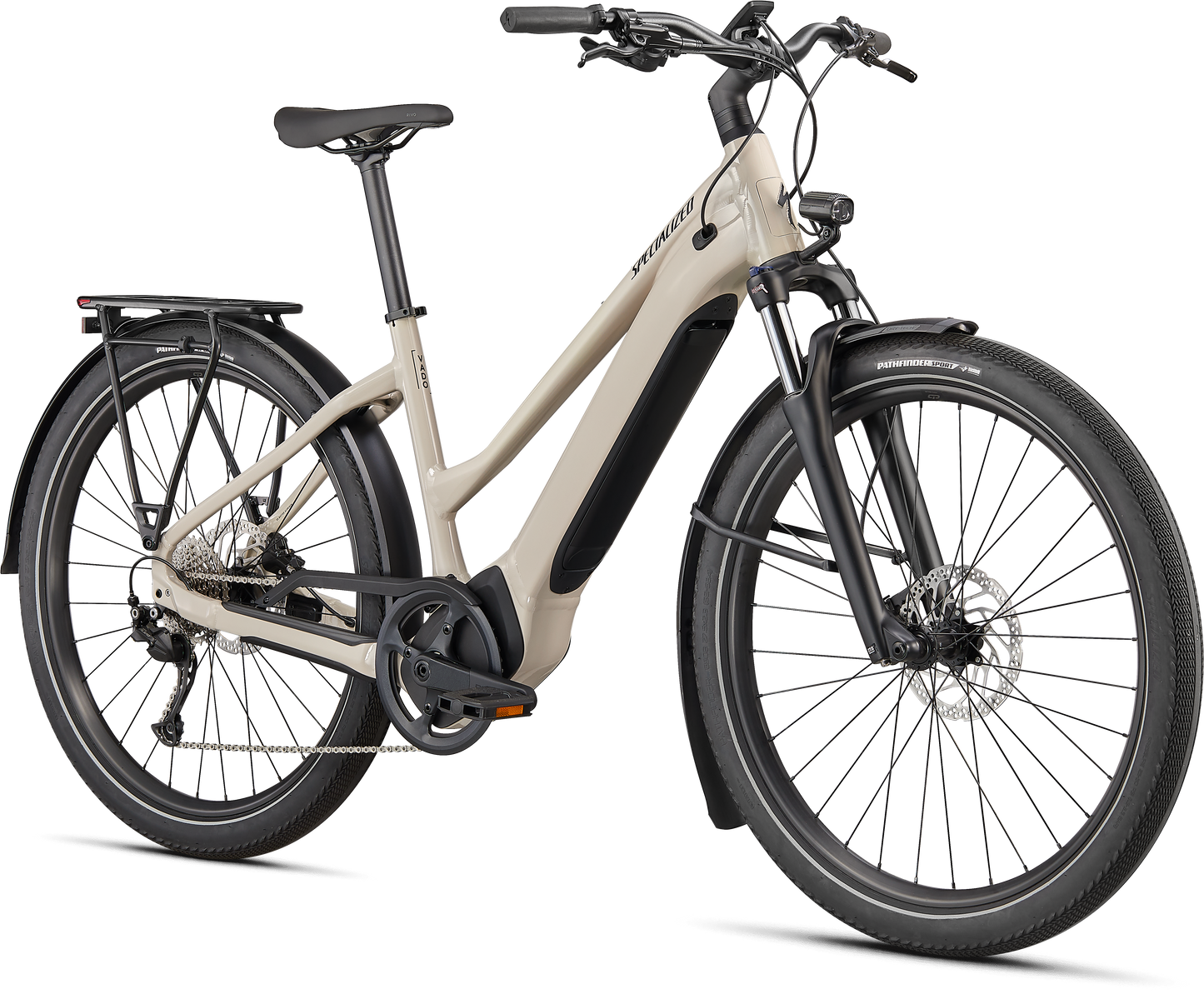

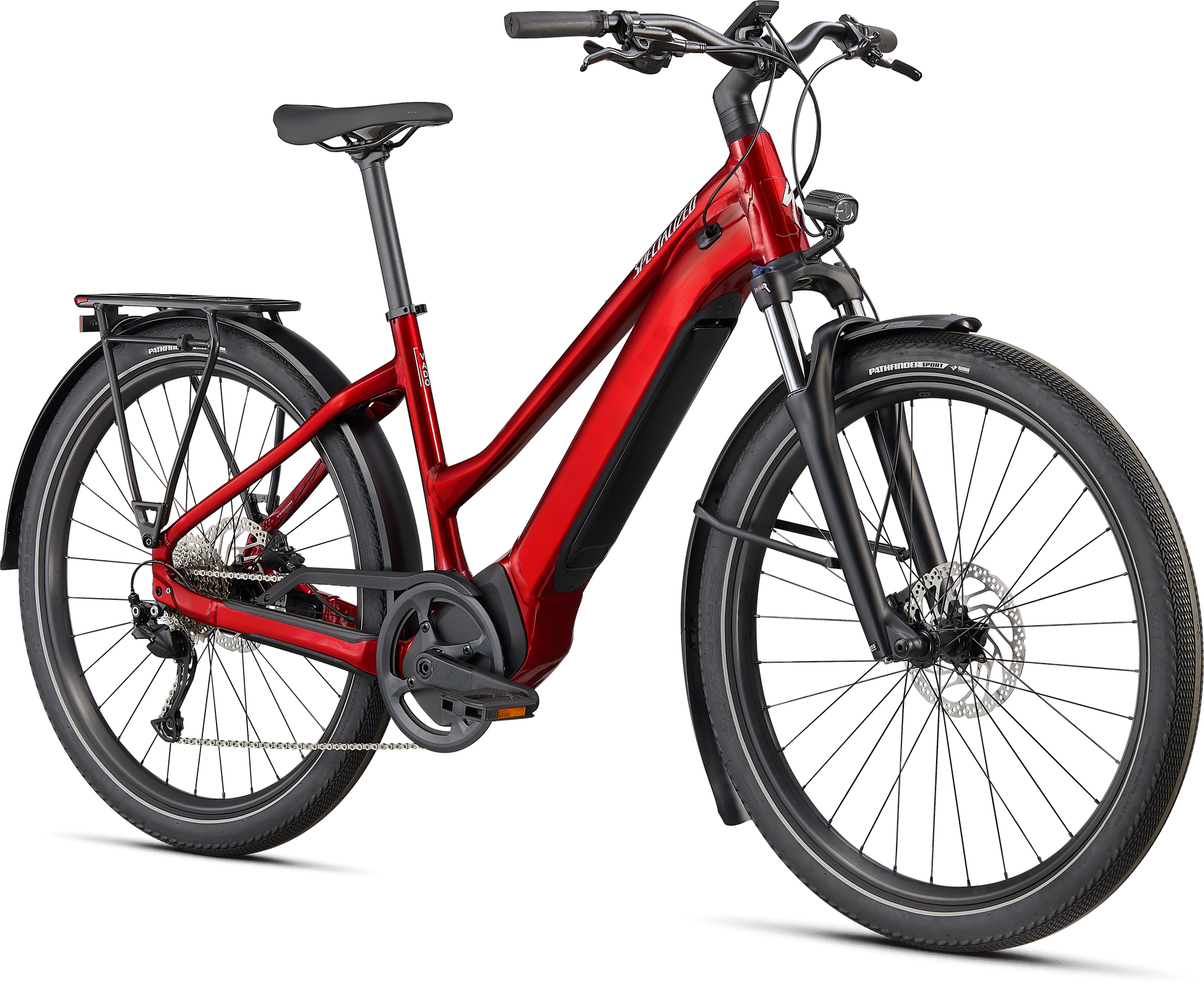

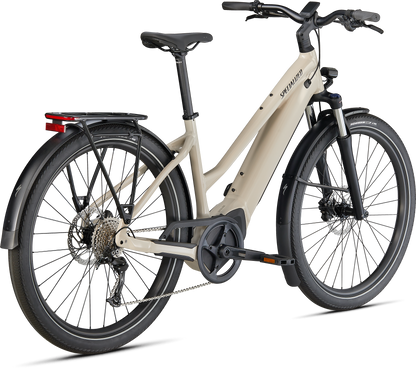

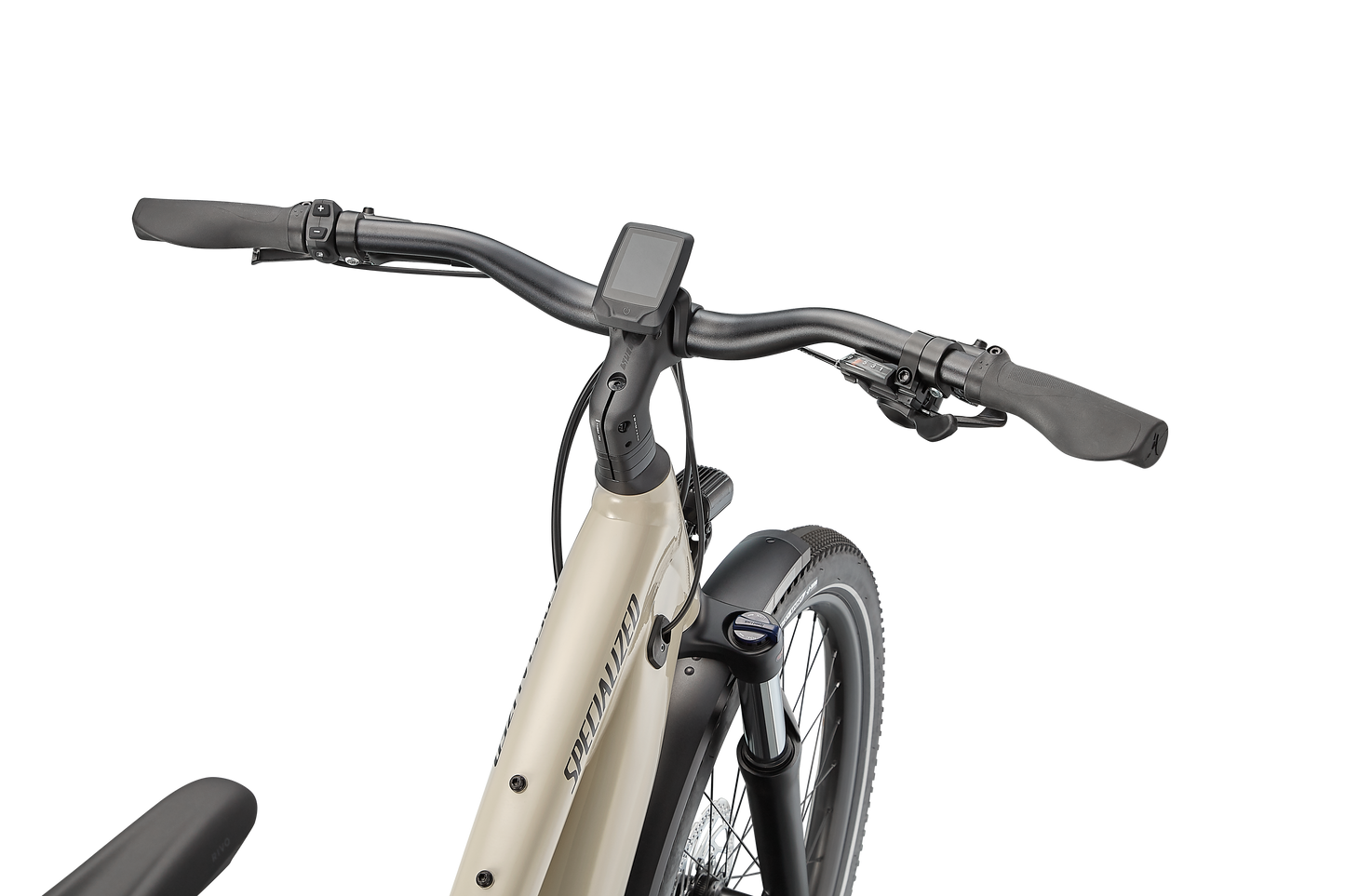

Turbo Vado 3.0 Step-Through
Turbo Vado 3.0 Step-Through
SKU:95022-6004
Product Enquiry
Thank you for submitting your form!
We appreciate your interest and will review your information as soon as possible.
Our team is dedicated to providing excellent customer service, and we will do our best to respond promptly.
Vado Size Guide
Product Details
Vado is the vehicle for everything from daily commutes to fast workouts to longer-than-planned adventures—an electric bike for life. The smoothest-riding e-Bike experience yet, Vado is designed to boldly take on the ever-changing landscape you’ll encounter as a daily rider, carry whatever you need it to, and keep you riding more often.
Redesigned geometry puts you in the best position for everything from workouts to commutes while comfortably keeping your eyes on busy roads. Specialized took learnings from the speed a road rider seeks and the manoeuvrability a mountain bike rider needs. The rider's position on the Vado instills confidence and, at the same time, optimises the rider's ability to efficiently power from A to B.
-
Turbo Full Power 2.0E motor and 530Wh battery offer an unparalleled riding experience, providing a smooth, seamless, and shockingly quiet amplification of your efforts, up to 45kph. The integrated controller responds to your pedal inputs resulting in intuitive amplification of your efforts with an incredibly natural feel.
-

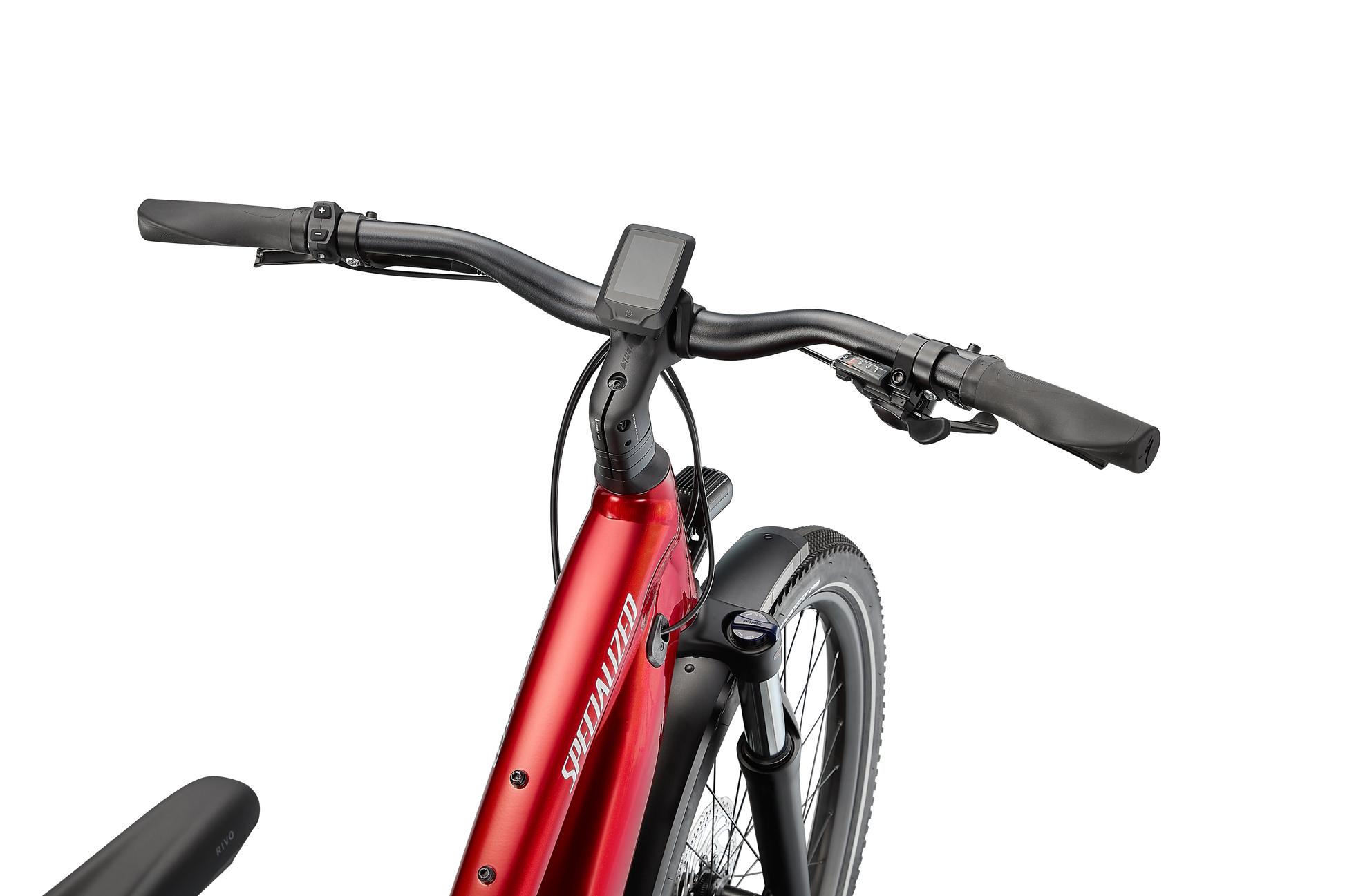

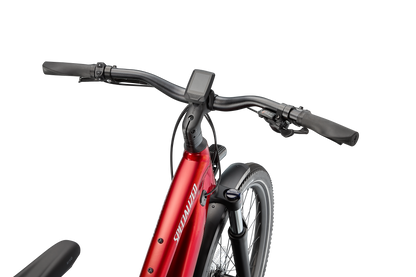

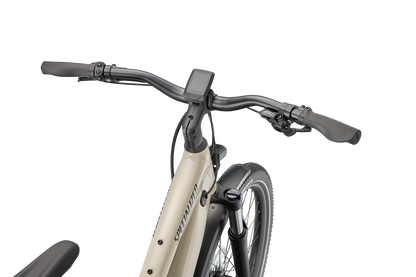

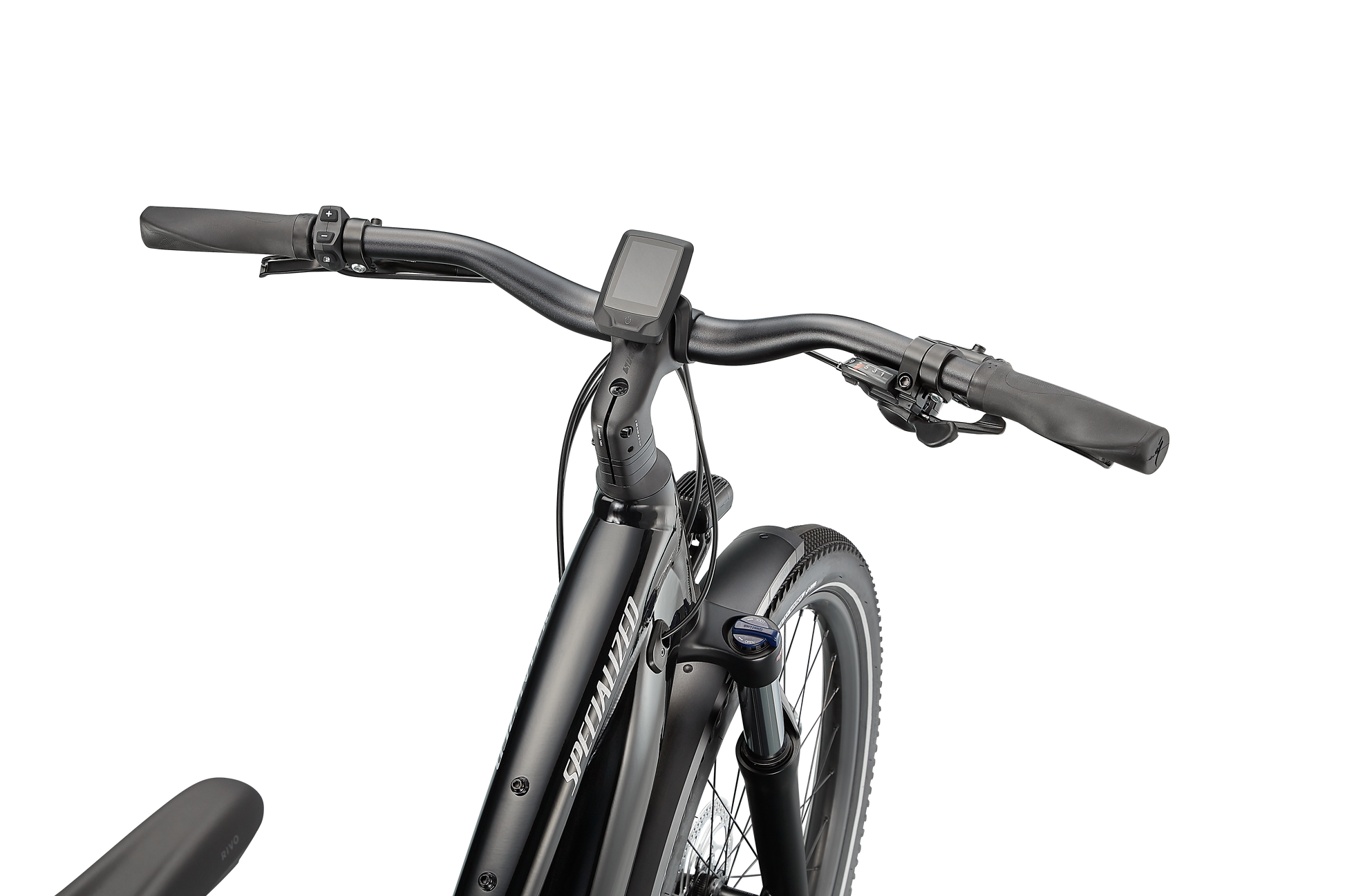

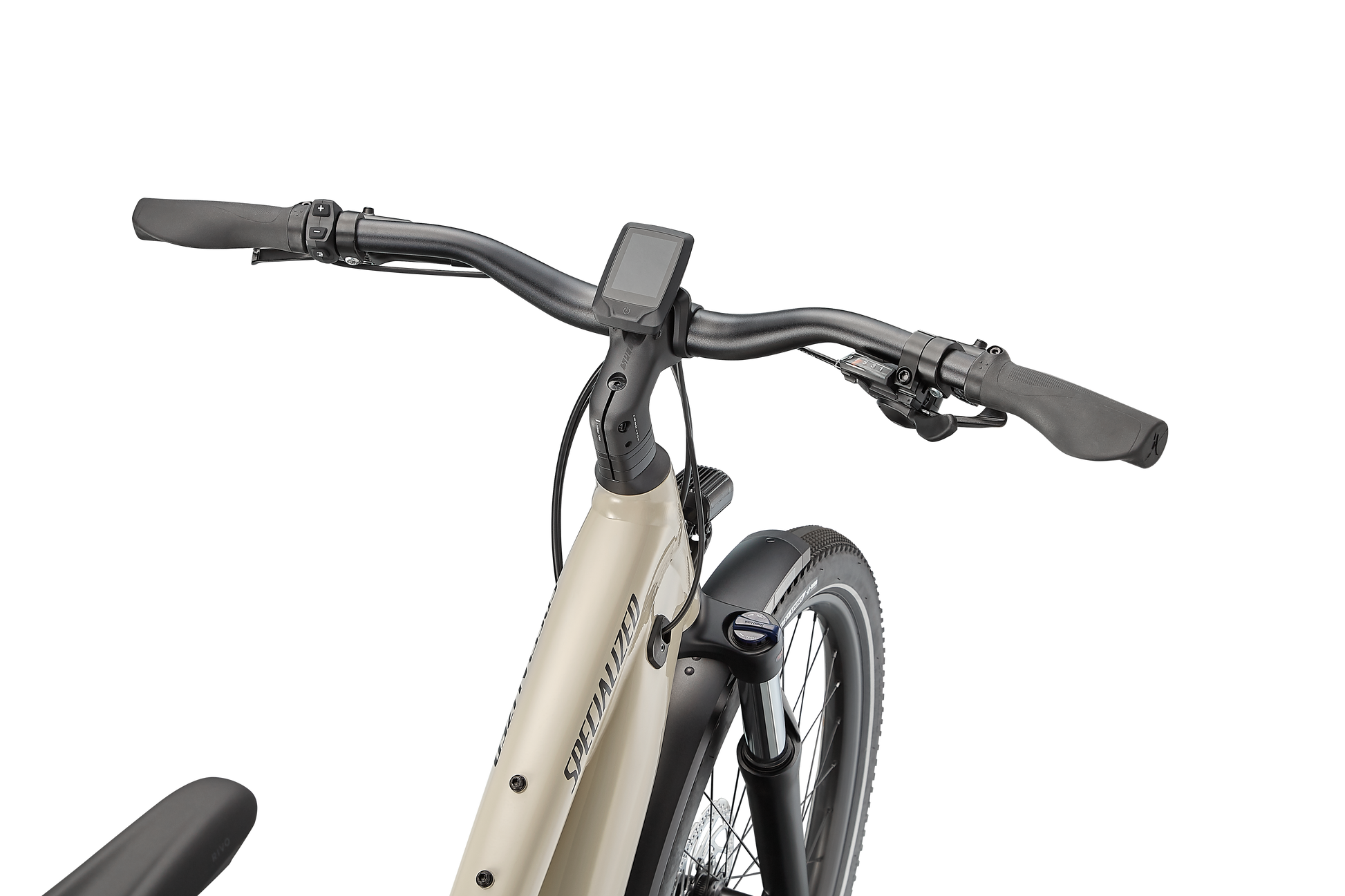

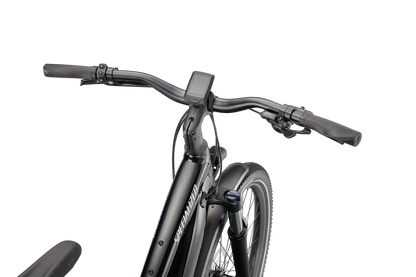

MasterMind and Mission Control - The MasterMind display reveals all relevant info about your ride, allows real-time tuning of support levels, and enables over-the-air updates so that your bike gets better over time. MasterMind seamlessly integrates with the Mission Control app for range optimisation tools, advanced tuning, on-ride diagnostics, and more.
-
Proven Smooth Efficiency - Specialized designed a custom testing mechanism to analyse bumps at even the smallest frequency to increase comfort and vision. That precision, paired with higher volume tyres, and an 80mm suspension fork, will flatten roads before your eyes.
-
Turbo System Lock - Use the Mission Control app to disable your bike’s motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
-
Fully Integrated Removable and Lockable Downtube Battery - Easy to charge, easy to secure.
-
Equipped with DryTech Fenders, LED front and rear lights, and 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is also rated to pull a thru-axle trailer.
Specifications:
|
Frame |
E5 aluminium, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount |
|
Fork |
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount |
|
Stem |
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp |
|
Handlebars |
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm |
|
Grips |
Specialized Body Geometry Contour, lock-on |
|
Front Brake |
Shimano BR-MT200, hydraulic disc, 180mm Centerlock |
|
Rear Brake |
Shimano BR-MT200, hydraulic disc, 180mm Centerlock |
|
Rear Derailleur |
Shimano Alivio, SGS, 9-speed |
|
Shift Levers |
Shimano Alivio, 9-speed with Optical Gear Display |
|
Cassette |
Shimano CS-HG400, 9-speed, 11-36t |
|
Chain |
KMC e9T, 9-speed with Missing Link |
|
Crankset |
Custom alloy forged crankarms |
|
Chainrings |
Praxis, 48T, 104BCD |
|
Rims |
650b disc, double-wall alloy, pinned, 32h |
|
Front Hub |
Shimano MT400, Centerlock, 15x100mm, 32h |
|
Rear Hub |
Shimano MT400-B, Centerlock, 12x148 Boost, 32h |
|
Spokes |
DT Swiss Industry |
|
Front Tyre |
Pathfinder Sport Reflect, 650Bx2.3" |
|
Rear Tyre |
Pathfinder Sport Reflect, 650Bx2.3" |
|
Inner Tubes |
Schrader, 40mm valve |
|
Saddle |
Rivo Sport, steel rails, 155mm |
|
Seat Post Collar |
Alloy, bolt-type, 34.9mm |
|
Seat Post |
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm |
|
Motor |
Specialized 2.0E, 50Nm torque, custom tuned motor, 250W nominal |
|
UI/Remote |
MasterMind TCD, with handlebar remote, built-in anti-theft feature, Bluetooth connectivity, customisable display pages |
|
Battery |
Specialized U2-530, alloy casing, state of charge display, 530Wh |
|
Charger |
Custom charger, 42V4A w/ Rosenberger plug, 100-240V |
|
Wiring Harness |
Custom wire harness |
|
Headlight |
Lezyne e-Bike Mini STVZO E65, 210 Lumen, 12V |
|
Taillight |
Spanninga Commuter Glow XE, 12V |
|
Chain Case |
Custom, proprietary chain cover |
|
Kickstand |
Specialized kickstand, 40mm mount |
|
Rack |
Specialized rack, MIK HD inteface, built-in pannier mounts, 27kg max load |
|
Fenders |
Specialized DryTech fenders, 65mm width, aluminum fenderstay |
|
Bell |
Simple bell |
|
Pedals |
Specialized Commuter with grip tape & reflectors |
Geometry & Sizing:
|
S |
M |
L |
XL |
|
|
BB Drop |
70 |
70 |
70 |
70 |
|
BB Height |
285 |
285 |
285 |
285 |
|
Bike Standover Height |
618 |
617 |
617 |
626 |
|
Chainstay Length |
470 |
470 |
470 |
470 |
|
Crank Length |
170 |
170 |
170 |
170 |
|
Fork Length (full) |
480 |
480 |
480 |
480 |
|
Fork Rake/Offset |
44 |
44 |
44 |
44 |
|
Front Centre |
699 |
724 |
750 |
777 |
|
Handlebar Width |
680 |
680 |
680 |
680 |
|
Headtube Angle |
68° |
68° |
68° |
68° |
|
Headtube Length |
135 |
150 |
165 |
190 |
|
Reach |
423 |
444 |
464 |
481 |
|
Saddle Width |
155 |
155 |
155 |
155 |
|
Seat Tube Angle (Virtual) |
75.5° |
75° |
74.5° |
74° |
|
Seat Tube Length |
400 |
450 |
460 |
500 |
|
Seatpost Length |
300 |
400 |
400 |
400 |
|
Stack |
625 |
639 |
652 |
676 |
|
Stem Length |
60 |
60 |
75 |
75 |
|
Toptube Length (horizontal) |
585 |
615 |
645 |
675 |
|
Trail |
96 |
96 |
96 |
96 |
|
Wheelbase |
1160 |
1186 |
1212 |
1239 |
*Barring angle values marked by their degree symbol (°), all chart measurements above are listed in millimetres (mm).
Detailed below are the 2022 Vado Step-Through's sizes, with their respective rider's height ranges to which they suit:
Small - 158cm to 165cm (5'2" to 5'5")
Medium - 165cm to 178cm (5'5" to 5'10")
Large - 178cm to 185cm (5'10" to 6'1")
Extra Large - 185cm to 193cm (6'1" to 6'4")
